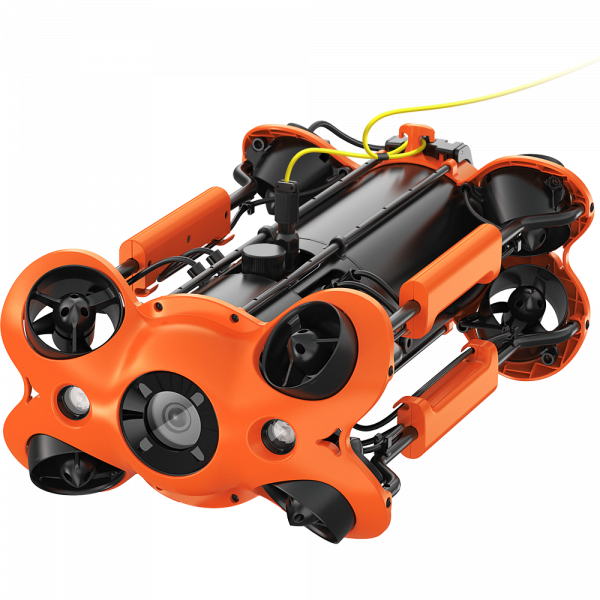

CHASING M2 PRO ROV, Light Industrial Underwater Drone 200M
The new ROV/Underwater drone is here! The Chasing M2 PRO has more power, up to five hours batterylife and even unlimited batterylife with the optional AC power module. This version is equipped with a 200 meter cable.
- Safe & easy ordering - Webshop Trustmark certified
- Fast and reliable worldwide shipping with DHL, UPS or PostNL
- Authorised service center for Nauticam, INON....
The CHASING M2 PRO is a light industrial underwater ROV designed for professional users and industrial applications. It works with various power supply and has stronger powered motors. The drone can be mounted more so as to greatly meet the needs of various scenarios.
Omni Movement, Multi-Angle Shooting
CHASING M2 PRO has 8 vectored thrusters layout which allows OMNI movement in all directions. Under any posture, the depth can be set with one key, which can ensure the drone to accurately hover to achieve any perspective shooting, observation and operation needs of any angle of view.
More Exclusive Accessories to Meet More Professional Scenarios
Not only compatible with CHASING M2's attachments such as Grabber Claw, Diving Light and Laser Scaler etc, but also compatible with Control Console (High-brightness Screen), Docking Station, USBL Underwater Positioning, Multibeam Sonar, Auxiliary Camera and other M2 PRO exclusive enhanced accessories.
The control console is used for operating the underwater ROV and all accessories. The keys are well laid out for more professional control. With the high brightness screen, the picture is clearly visible even in daylight.
With USBL Underwater Positioning, it can accurately locate the location of underwater drones and record their movement tracks. Combination solution: USBL + Unmanned Surface Vehicle + Control Console + Docking Station.
The Multibeam Sonar generates a wide range of high-quality images through acoustic reflection to enable fast search and target positioning, no longer affected by muddy water. Combination solution: Multibeam Sonar (support other brands) + Sonar Tether + Docking Station.
With auxiliary camera, it is possible to observe objects simultaneously with dual cameras in dual-view. Combination solution: Auxiliary Camera + Docking Station.
Unlimited Battery Life with AC & DC Power Supply
CHASING M2 PRO works with both AC and battery power supply. The default 300Wh high-capacity lithium battery is replaceable.The optional 700Wh lithium battery can work up to 5 hours, and the optional external AC equipment can truly achieve unlimited battery life.
Stronger Power Anti-Stuck Motor, 4 Knots Anti-Flow
The anti-stuck motor is 150W and the power has been upgraded by 50% compared to the Chasing M2 motor, which can resist the flow of water at 4 knots (2m/s) in all directions.
Dive Up to 150 Meters to Explore More Unknowns
The waterproof level of CHASING M2 PRO has been upgraded to 150 meters (490 FT), diving deeper and exploring more underwater unknowns.
4K EIS Image Stabilization Camera for Clearer Image Quality
Built-in 4K/12M pixel camera with F1.8 lens, 1/2.3 SONY CMOS, EIS stabilization feature. With 4000 lumens LED lights, the camera of CHASING M2 PRO can capture every detail clearly underwater. It even has a super wide angle (FOV) of 152° !!
The M2 PRO supports three devices to watch underwater images simultaneously and meet the needs for multiple viewers. The 128G SD memory card is removable, and users can choose SD cards of different capacities, up to 512G.
User friendly interaction:
HDMI output for live broadcast and social media sharing. You also can take photos while recording video. Also possibilitie for time-lapse photography and slow motion.
Specifications Chasing M2 PRO
|
Drone |
|
| 18.9" x 10.5" x 6.4" (480 x 267 x 165 mm) | |
| ≈5.7 kg | |
| 490 ft (150 m) | |
| 4 Knots (2 m/s) | |
| Up to 4 hours | |
| 300 Wh | |
| -10℃~45℃ | |
|
Control Console (optional, not included) |
|
| 19" x 14.8" x 7" (484 x 375 x 178 mm) | |
| 8 kg | |
| 1920 x 1080, 1000 cd/m2 | |
| -10 ℃ ~ 45 ℃ | |
| 21.6 V | |
| RJ45 x 2, USB 2.0 x 2, QC3.0 USB x1, AC Input x 1, AC output to ROV x 1 |
|
|
Camera |
|
| 1/2.3 inch | |
| F1.8 | |
| 1m | |
| 100-6400 | |
| 152° | |
| 12 Megapixel | |
| JPEG/DNG | |
| UHD: 3840*2160 (4K) 30fps FHD: 1920*1080 (1080p) 30/60/120fps |
|
| 720p: 8x (240 fps) 1080p: 4x (120 fps) |
|
| 4K / 1080p supported | |
| 60 M | |
| MP4 | |
| 128 G | |
|
Remote Controller |
|
| 6.3" x 6.1" x 4.9" (160 x 155 x 125 mm) | |
| 685 g | |
| 2500 mAh | |
| ≥ 6 hours (depending on the environment) | |
| Wi-Fi supported | |
| Support | |
| Maximum support 10 inch | |
|
Sensor |
|
| 3 axis gyro & accelerometer & compass | |
| < ± 0.25 m | |
| < ± 2 ℃ | |
|
Charger |
|
| 2.9A / 25.2V | |
| 4.5 H | |
| 2 H | |
|
LED |
|
| 2 x 2000 Lumens | |
| 5000 K - 5500 K | |
| 85 | |
| Three gears | |
In the package: ROV, remote controller, 300Wh battery, 128G storage, carrying case, 200m tether and Reel, sunshade for remote.
| Max. depth | 150 meters |
|---|
