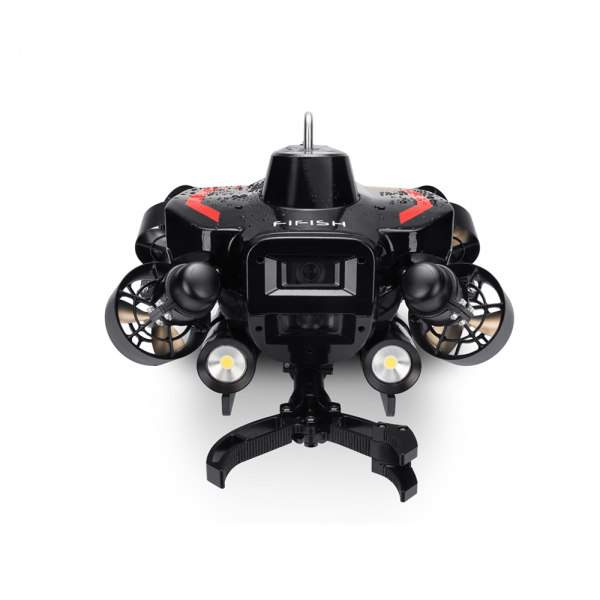

QYSEA FIFISH PRO W6 industrial underwater ROV / drone

Price on request
This product cannot be ordered through the website. Please contact us for a suitable offer.

The PRO W6 has innovative modular interfaces which enable the rapid replacement of parts or the switching of accessories with different functions and to execute various task efficiently and precisely.

Click here to open the PDF brochure of the Fifish Pro W6.

Click here to view the Fifish Pro W6 product video.

Station Lock
“Station Lock” algorithm can lock the ROV's position underwater, which can keep the position without drift in the complicated water environment.With it, the W6 can execute the extremely stable required inspection and operations.

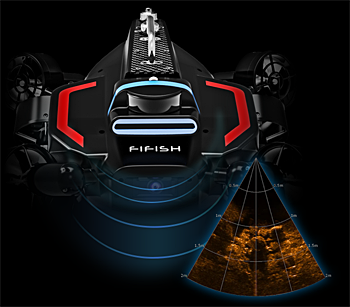

Imaging Sonar
FIFISH PRO W6 Underwater ROV platform can add-on 2D/3D image sonar to perform the inspection under dark and turbid water environment. W6 Modular design makes it possible to keep the fluid surface performance after add-on accessory. Keeping the highly stable operation efficiently.

U-QPS Underwater Quick Positioning System

U-QPS underwater quick positioning system is a Software and Hardware eco-system which can provide the real-time FIFISH ROV location, POI recording, three-dimensional diving path recording, and one-kick to return POI. Regardless of the interference of deep sea undercurrents, the path of the machine, the underwater 3D map will be displayed in real time, which is suitable for various long-term underwater detection and observation tasks. QYSEA designed software applications bring the ROV user experience to a new higher level.

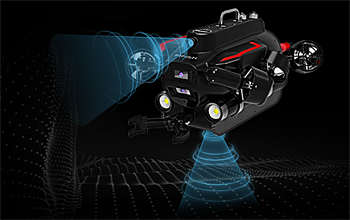

Sonar Array System

The Sonar Array system is QYSEA patent algorithm which can realize the Distance Lock, Altitude Lock, Collision Avoidance and Contour Scanning functions.

These innovative functions enhanced the ROV user experience and reduce the complicated operation of ROV.Very useful underwater tools can be used to perform various task in complex underwater environment.

Removable Battery & Onshore Power Supply

The W6 adopt QYSEA patent 6 thrusters system design, its very high power efficiency can achieve very long operation time. W6 is more powerful, more battery-capacity saving, more efficient than other ROV with more motors. And is more suitable for long time underwater task. W6 battery capsule has large power, durable, adopts a removable design, 8 hours of continuous battery life (depends on operation condition), can perform long-time underwater operations, and the battery supports quick charging mode, which can be charged 70% in one hour. W6 also can be equipped with an onshore power supply system to achieve unlimited working time. This system is safe and efficient, convenient to carry, continuous supply, worry-free operation. It provides powerful and incomparable solution to users.

Innovative Dual 4K Camera System, Dual Camera Work Coordination

W6 4K ultra-high-definition dual camera system provides a wider field of view, realizes the coordination of operation monitoring and motion observation, and provides operators with a complete picture of the surrounding environment. With this system, Comprehensive inspections can be performed; In addition, with FIFISH patented software, It can collect various information and analyze corresponding big data to output work reports.

Dual Camera System
Pixels: 12MP
Video resolution: 4K UHD
Signal Format: PAL and NTSC
Lens: Wide Field-of-View
Vertical FOV: 100°
Horizontal FOV: 166°
ISO: 6400 (max)
Underwater Light: 12,000 Lumens

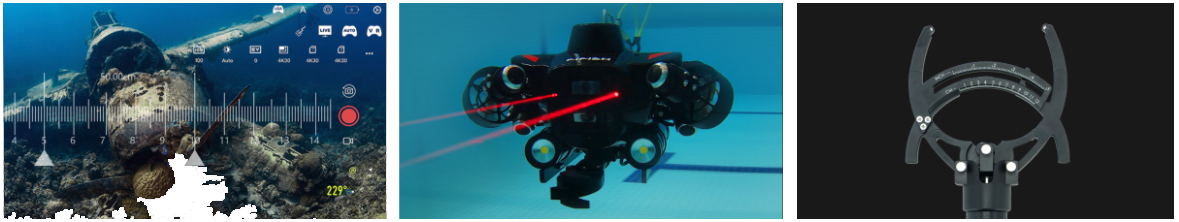

High Precision Ruler Combination: AR Ruler (optional) ＋Laser Ruler (included) + Compass Ruler (optional)

AR ruler and Laser ruler can realize accurate measurement of underwater objects. In ship inspection scene, it can accurately measure the scale of cracks and hull damage to effectively identify and prevent further damage; combined with compass ruler, it can be clamped for underwater small objects and real-time measurement, the measurement system package realizes a new way of measuring full-range coverage.
