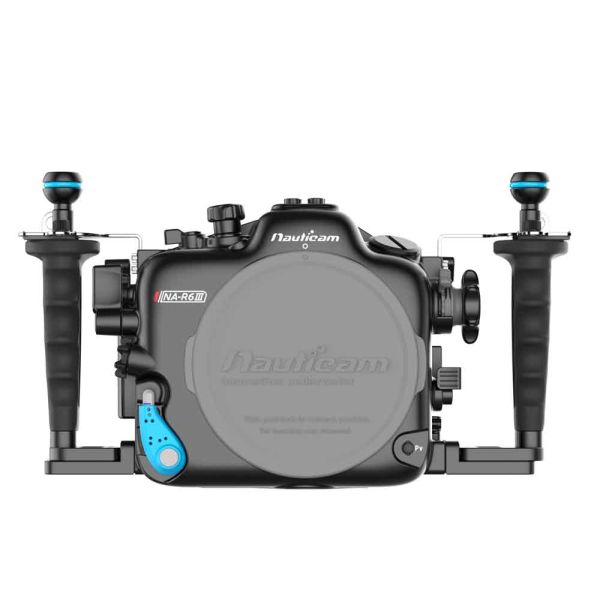

Nauticam NA-R6III Housing for Canon EOS R6 Mark III

The NA-R6III underwater housing embodies Nauticam’s commitment to innovation. Essential controls are conveniently accessible without removing your hands from the ergonomic handles. The N120 port lock II, Rotary housing lock, and Dedicated RF mount Lens REL lever facilitate an efficient setup that optimizes time spent in the water and minimizes time dedicated to rig maintenance. The N120 port system accommodates both Canon RF and EF mount lenses. Nauticam’s extensive range of ports and in-house corrective optics complement the NA-R6III’s capabilities. When equipped with an accessory vacuum valve, the integrated vacuum check and leak detection system provides continuous updates on the housing’s watertight integrity. A vacuum system reset switch, situated beneath the tray, eliminates the need to open the back of the housing during lens or port changes. The NA-R6III is prepared for customization to meet your specific shooting requirements, featuring optional Full Frame viewfinders for enhanced viewing, optical and electronic strobe triggering, and support for HDMI 2.0 and 1.4 monitors. The NA-R5III is capable of supporting additional mounting with 1/4-20, M10, and M5 holes on the housing’s top surface for monitors and lighting, while the bottom accepts the 25218 Tripod Mounting Ball set.

Premium professional optics
Nauticam’s professional water-contact optics deliver the highest underwater image quality. The FCP, WACP, and WWL lines enhance wide-angle, while the MFO and SMC offer exceptional macro and super macro capabilities. The EMWL allows you to shoot macro, wide-angle, or combine the styles for unique images.

Mission Control
In true Nauticam fashion, essential controls are placed as close to the handles as possible, making these housings the most intuitive and user-friendly available. Our engineers strategically position controls where they’re needed most, rather than simply near the corresponding buttons on the camera. Dials feature rubberized finger grooves, and levers are designed for smooth operation.

Integrated Vacuum Check & Leak Detection Electronics
The Nauticam vacuum check and leak detection system is shipped with NA-R6III as standard equipment. Combined with an accessory vacuum valve, this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

Flash Triggering
Flash triggering on the Canon R6 Mark IIl in the NA-R6III is available via either optical or electrical trigging.

Specifications:
Dimensions: 332mm (W) x 189mm (H) x 141mm (D)
Weight in air: TBD
Buoyancy in water: TBD
Depth Rating: 100m
Port System: N120 Canon RF-Mount II (for C50/R6III)
Port accessories: Front M24 x 1, Rear M16 x 1
Handles and stabilizing brackets: Pre-installed
HDMI support: HDMI 1.4 / 2.0
Compatible Cameras: Canon EOS R6III Camera

Compatible lenses:
-RF Lenses with RF Lens Gear System II (PN: 19630 ~ 19637)
-EF Lenses with Canon mount adaptor EF to EOS R*
*Zoom/focus gear for EF lenses are MOD items
Canon Control Ring/Drop-in with V-ND Filter mount adaptor is unsupported

Features:
•    N120 Port Lock II with blue Lever
(Support to install Extension/Port and lock automatically when the port lock lever is closed)
•    Rotary housing lock, same as NA-R6II
•    Dedicated RF mount Lens REL lever
•    Double Lever for M-Fn and REC on the front right side
•    AF-ON Lever on the rear right side, Playback Lever on the rear left side.
•    1x M10 threaded hole (mounting points for external monitor)
•    12x 1/4-20 threaded holes (for optional accessories)

HDMI OUTPUT:
1)    Required accessories for HDMI 2.0 Cable System
25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-a1 to use with Ninja V housing) TBD

Compatible Monitor Options:
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit
 Reorder/Monitor/Player (excl. HDMI 2.0 cable)
17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit
Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

2)    Required accessories for HDMI 1.4 Cable System
25033 Standard HDMI bulkhead with M16 thread
26326 M24-M16 Adaptor for use with 26325    *instead of existing 25081
25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1 (for connection from HDMI
bulkhead to camera) TBD
*25033 is included in 17923 monitor housing

Compatible Monitor Options:
16611 Nauticam 7'' G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
16612 Nauticam 7'' T7  UW ULTRAHD Monitor  (HDMI 1.4 input, excl. cables)
25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
*25047 is Required for use with 16611/16612.
17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
*17927 includes 25033, 25038 and 25100.
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player
 (excl. HDMI 2.0 cable)
25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length
 (for connection from Ninja V housing to HDMI Bulkhead)
*25082 is Required for use with 17922 monitor housing

Required Monitor Mounting system
17954 Tripod plate for NA-A7S and NA-GH4
17960 Universal Quadra-Pod Plate for Nauticam Housings
17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)

What’s in the box:
NA-R6III Housing
Housing Cap
2x Plugs for Optical fiber cable mount
2x Handles with mounting balls and 2x handle brackets
Panasonic CR-2032 Battery (pre-installed for moisture alarm)
Spare main O-ring, O-ring remover and lubricant
Set of Allen Keys
Padded housing bag and shoulder strap
