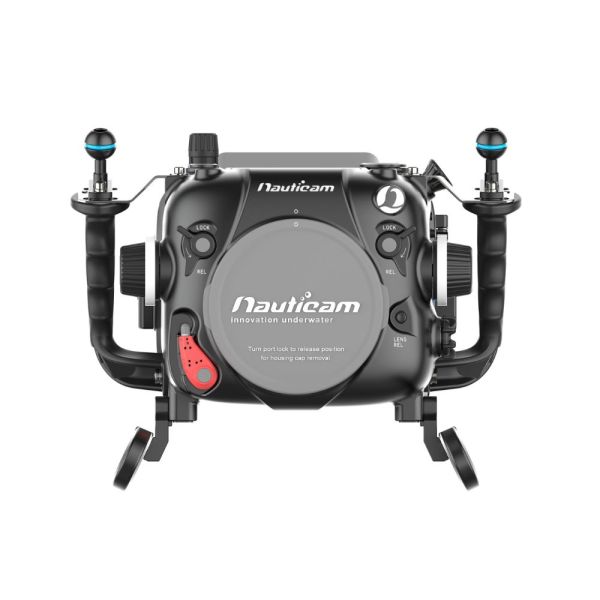

Nauticam C400 Housing for Canon C400

A lensport is not included. Please check this port chart for the lens possibilities

Features NA-C400 housing:

Rotary style housing lock with N120 port Lock system
Internal monitor support: Canon EOS C400 LCD monitor
Mechanical Control includes Power On/Off, Control Dial, Zoom, Focus and Lens REL.
Electronic Control Function buttons list below (through Remote A)
a. Main Control Board:
- Left, Right, Up, Down and SET
- 1, 2, WB, WB SET, Menu/REC Review, and SET
*Short press for MENU, and long press can activate REC REVIEW
b. Left Control Board:
    Up, Down, ND, ISO+, ISO-
c. Right Control Board:
REC, 3, 4, IRIS+, IRIS-

Specifications NA-C400 underwater housing:

Dimensions (housing body only): 232mm (W) × 194mm (H) × 298mm (D)
Weight in air: 6.64kg (incl. handles and housing skids)
Buoyance in water: 1.0kg (incl. camera, LCD Monitor and BP-A60 Battery Pack)
Depth Rating: 80m
Port mount:  N120
Accessory ports: Front 2x M10, Middle 1x M16 and 1x M28, Rear 4x M16.
Vacuum valve: pre-installed
Handles and stabilizing brackets: in package
Signal Output Support: SDI/HDMI
Compatible Camera: Canon EOS C400 Camera with LCD monitor
Compatible batteries:
-    BP-A30N/A60N
-    BP-A30N with FXLION NANO THREE/Bebob 150Wh Micro V-mount battery.

Cautions: please remove the Tape Measure Hook from C400 camera and pull out the Power ON/OFF knob from housing before installing the camera to the inside.

HDMI OUTPUT:
1)    Required accessories for HDMI 2.0 Cable System
25089 M28 HDMI 2.0 Adapter
25078 M28A1R225-M28A1R170 HDMI 2.0 Cable (for NA-BMPCCII/S1R/S1H to use with 17922/17909N)

Compatible Monitor Options
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit
Reorder/Monitor/Player (excl. HDMI 2.0 cable)
17926 Nauticam NA-Ultra5 Housing for SmallHD Ultra 5 Camera Monitor

2)    Required accessories for HDMI 1.4 Cable System
25033 Standard HDMI bulkhead with M16 thread (Mounted on the right side M16 of middle housing)
25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1 (for connection from HDMI bulkhead to camera)
*25033 and 25100 is included in 17927 monitor housing

Compatible Monitor Options
17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input

SDI OUTPUT:

1)  Required accessories for SDI Cable System
17926S SDI Cable Set for use with NA-Ultra5/17922S

Compatible Monitor Options
17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit
Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
17926 Nauticam NA-Ultra5 Housing for SmallHD Ultra 5 Camera Monitor

2) Required accessories Surface Monitor
25058 M16 SDI Bulkhead   *Only support to be installed on the back door.
25060 SDI cable in 0.4m length (for connection from camera to underside of SDI Bulkhead)
25064 SDI surface monitor cable in 15m length (for connection from SDI Bulkhead to Surface Monitor on land)
25065 SDI surface monitor cable in 45m length (for connection from SDI Bulkhead to Surface Monitor on land)

What’s in the box?

• NA-C400 Housing with vacuum valve pre-installed
• Housing Cap
• 2x Handles with mounting balls and 2x handle brackets
• Panasonic CR-2450 Battery (pre-installed for moisture alarm)
• Spare main O-ring, O-ring remover and lubricant
• Set of Allen Keys
• Housing skids
• Monitor Shade
• Safety box
