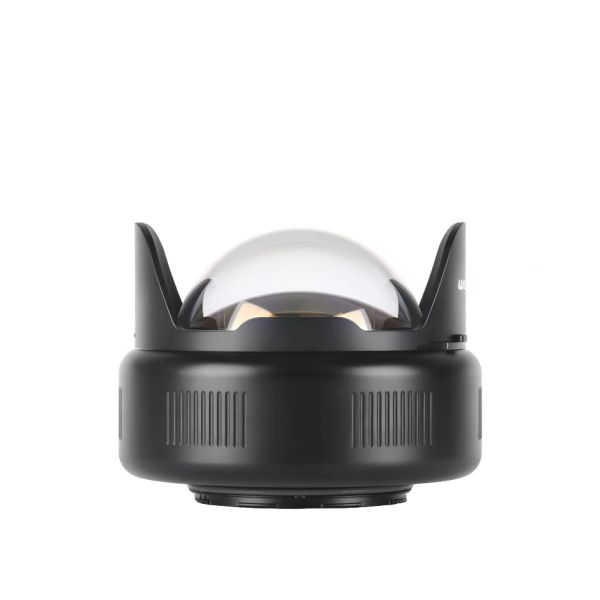

Nauticam FCP N120/N100 Fisheye Conversion Port 170 deg.
Nauticam Fisheye conversion port that gives you a gigantic viewing angle of no less than 170° with compatible 28mm lenses and selected underwater housings. Float collar is integrated.
- Safe & easy ordering - Webshop Trustmark certified
- Fast and reliable worldwide shipping with DHL, UPS or PostNL
- Authorised service center for Nauticam, INON....
FOCUS
Much like most of our Water Contact Optics the FCP-1 can focus from its front element to infinity in-water allowing for extremely close-focus fish-eye shooting. Depending on your lens choice you will have a variety of field of view options when zooming through various focal lengths.
BUOYANCY COLLAR
An aluminum float collar is integrated into the FCP-1 and brings the in-water buoyancy 0.4kg negative.
COMPATIBLE LENSES
The FCP-1 is designed to function at the full-frame equivalent focal length of 28mm. A wide variety of lenses are supported, both primes and zooms for Nikon, Canon and Sony as well as Super35 Cinema Systems. Please check the PORT CHART for supported lenses and suggested configurations as some lenses will require extension rings or adapters.
Specifications
| Outer Diameter x Length (port mount to front) | DIA 198 x 136mm |
| Outer Diameter x Length (incl. front and rear cap) | DIA 198 x 161mm |
| Weight in air | 3.2kg |
| Buoyancy in water | Negative 0.4kg |
| Body construction | Hard-anodized aluminum alloy |
| Lens construction | 6 elements in 5 groups |
| Lens coatings | Anti-corrosion Coating on the outside of the dome. Anti-reflection Coating on other surfaces |
| Focus distance | From front element to infinity |
| Maximum FOV (underwater) |
170 Degrees (Ref. 28mm equivalent) 180 Degrees circular fisheye (Ref 14mm equivalent. *Remove shade |
| Port Mount | N120/N100 Port Mount |
| Depth rating | 100m |
| Pre-installed | Integrated aluminum float collar |
Included in the box:
- FCP-1 with integrated Float Collar
- Removable Shade
- N120 port mount (pre-installed)
- N100 port mount ring
- Front hard lens cap
- Rear lens caps
- Padded carrying bag
- 90140 N120 Port O-ring
- 90141 N100 Port O-ring
- Snap hook with lanyard
- Clean cloth
- Lubricant
| Max. depth | 100 meters |
|---|
