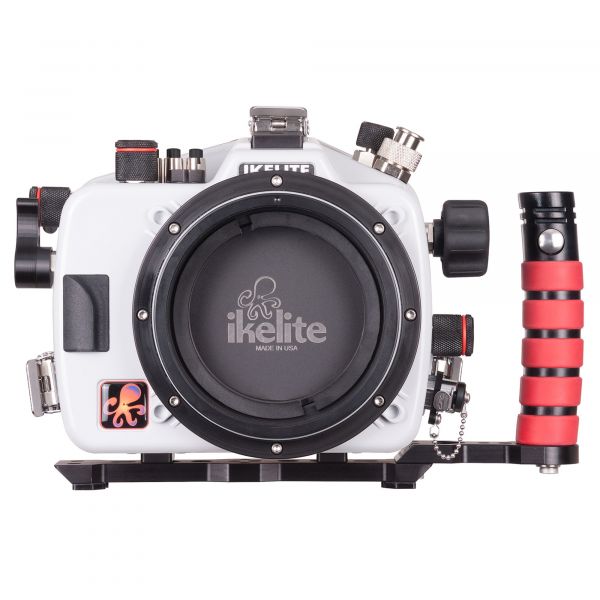

Shown with lens port (not included). A lens port must be purchased separately for waterproof operation.
This housing is only compatible with the Canon EOS 5D Mark III, 5D Mark IV, 5DS, 5DS R DSLR as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.
Differences in lens and control placement prevent other DSLR models from being used in this housing. We are not aware of any other models which may be used in or adapted to this particular housing.
This housing features the new DL (Dry lock Port system). It adds security at the surface of the water and accommodates large diameter lenses. Ikelite also offers a 200 feet / 60 meter version and if you are not quite ready for the DL port system a version with the traditional four port locks.
- Shutter-release button
- Zoom control (see port chart)
- Power switch
- Record start/stop button
- Main dial
- Mode dial (lock release)
- Metering mode/white balance button
- AF mode/drive mode button
- ISO button
- Lens release button
- AF-ON button
- MENU button
- INFO button
- Index/magnify/reduce button
- Playback button
- Erase button
- Live view shooting/movie shooting switch
- * AE Lock button
- AF point selection button
- Quick control button
- SET Setting button
- [Q] Quick control dial
Strobe options:
- TTL Exposure Install optional Canon TTL Kit Product number 46070 for automatic TTL exposure with compatible Ikelite DS-model Strobes. Ikelite DS-model strobes may be used with this system without the Canon TTL Kit installed, but will not provide TTL exposure.
- Non-Ikelite Strobes SEA&SEA, INON, and Nikonos strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off of a hard-wired strobe.
- Ikelite Non-Digital Strobes Older non-digital strobes featuring an ICS-5 electrical sync cord bulkhead can be used with this system in manual exposure modes.
- Fiber Optic Fiber optic only strobes are not compatible with this installation. An external strobe must be connected by electrical sync cord.
- Remote Triggering Strobes with remote slave capabilities may be triggered off of a flash attached to the housing by electrical sync cord. Ikelite DS strobes support remote triggering using the Optical Slave Converter Product number 4403 or the Water Wizard system (manufactured and sold by Aquatica).
Whats included
- Underwater Housing with 50 ft (15m) Back
- Base with Left-Hand Quick Release Handle # 4077.67
- Waterproof Bulkhead Cap # 9104.5
- Silicone Lubricant 1cc Tube # 0184.1
Specifications
- 50' (15m) depth rating
- 1/4-20 thread base mounts with 3.5" spacing
- Near neutral buoyancy in fresh water
- Actual buoyancy varies depending on choice of lens and port
- Weight 4.5 lb (2 kg) not including tray + handles
- Dimensions 9.2 x 7.1 x 6.3" (234 x 180 x 160 mm) including projections
| Manufacturer | Ikelite |
|---|---|
| Manufacturer | Importer | Manufacturer: Ikelite Underwater Systems, 50 W 33rd St, Indianapolis, IN 46208, USA, [email protected] | Importer: UWCameraStore. com, Neon 25, 4751 XA, Oud Gastel, Nederland, [email protected] |
| Max. depth | 15 meters |
| Camera brand | Canon |
| EAN | 883711052861 |
