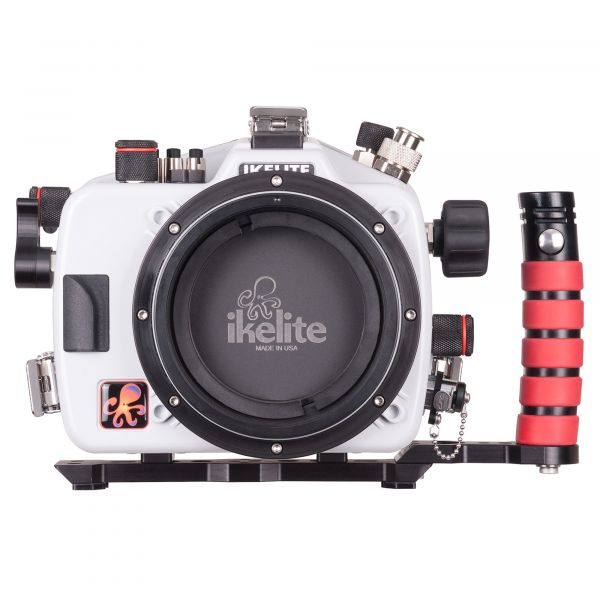

Ikelite 200DL Housing CANON 5D MKIII/IV/S(R) #71702

The  EOS 5D Mark III, Mark IV or 5Ds(r) slides into the form fitting housing using a simple tripod-style attachment. Controls are provided for all important camera functions and positioned intuitively to take advantage of the muscle memory you develop when using the camera on the surface. A unique universal gearing system puts zoom or focus at the tip of your finger with a brand new soft-touch, 5-lobed knob. The new white ABS-PC blend is specially formulated for added strength and durability. Compared to black, colored, or clear alternatives, the white shell keeps the camera running cooler, longer in hot, sunny climates.

This housing features the new DL (Dry lock Port system). It  adds security at the surface of the water and accommodates large diameter lenses. Ikelite also offers a special 50 feet / 15 meter version and if you are not quite ready for the DL port system a version with the traditional four port locks.

Alternative versions:

• 50DL underwaterhousing (Dry lock system 15m / 50 feet
• 200FL underwaterhousing (Four port lock system 60m / 200 feet

NEW Dry Lock port mount
Building off of our popular port system for compact mirrorless cameras, we have re-designed and refined the concept and it's ready for the big leagues. Key features include:

• A unique exterior o-ring which prevents water from dripping onto your camera when the port is removed;
• Solid, sure-stop press fit with no threading, turning, or twisting of the ports or extensions;
• Built for reliability in remote locations with standard locking thumbscrews and no complex moving parts;
• Accommodates large diameter lenses with ease;
• A new compact 8" dome port provides the optical quality of a large dome with the size of a much smaller dome
• Plus the new featherweight full 8" dome is less than half the weight of its predecessor

View Lens Port Chart

Main features

• 200' (60m) front and back; Back is interchangeable with optional lightweight 50' back sold separately
• Supremely functional for maximum creative control—access is provided for all important camera functions
• The DryLock (DL) Ports gives added security at the surface of the water and accommodates large diameter lenses
• Extra-large, soft touch zoom knob; Zoom is accessible for many lenses using our unique universal zoom gear system
• Vacuum valve included (pump sold separately)
• Control symbols are laser etched into the back and will never fade or rub off
• Quick install camera mount plate does not need to be removed for battery or memory card access
• One spare 1/2-20 threaded accessory port locations on the front of the housing for the addition of optional accessories
• Includes a balanced aluminum base with left-hand quick release handle; Right-hand handle sold separately
• Signature open-groove design suspends the rear o-ring in a natural position that is easy to maintain and reliable
• ABS-PC and Lexan construction is fundamentally corrosion-resistant
• Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL circuitry provides automatic exposure with compatible Ikelite DS strobes

Strobe options:

Controls:

• Shutter-release button
• Zoom control (see port chart)
• Power switch
• Record start/stop button
• Main dial
• Mode dial (lock release)
• Metering mode/white balance button
• AF mode/drive mode button
• ISO button
• Lens release button
• AF-ON button
• MENU button
• INFO button
• Creative photo/comparitive playback button
• RATE button
• Index/magnify/reduce button
• Playback button
• Erase button
• Live view shooting/movie shooting switch
• * AE Lock button
• AF point selection button
• Quick control button
• SET Setting button
• [Q] Quick control dial

Whats included

• Underwater Housing with 200 ft (60m) Back
• Base with Left-Hand Quick Release Handle # 4077.67
• Waterproof Bulkhead Cap # 9104.5
• Silicone Lubricant 1cc Tube # 0184.1

Specifications

• 200' (60m) depth rating
• 1/4-20 thread base mounts with 3.5" spacing
• Near neutral buoyancy in fresh water
• Actual buoyancy varies depending on choice of lens and port
• Weight 5.1 lb (2.3 kg) not including tray + handles
• Dimensions 9.2 x 7.1 x 6.6" (234 x 180 x 168 mm) including projections

Camera compatibility

This housing is only compatible with the Canon EOS 5D Mark III, 5D Mark IV, 5DS, 5DS R DSLR as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

Differences in lens and control placement prevent other DSLR models from being used in this housing. We are not aware of any other models which may be used in or adapted to this particular housing.
