AOI UWL-400A underwater 0.50X Wide Angle Conversion Lens 52m
0.50x Super sharp wide angle conversion lens designed for cameras featuring a 24mm lens (35mm equiv.) or any higher focal range.
52mm. Threaded mount can be replaced with a bajonet mount (not included).
- Safe & easy ordering - Webshop Trustmark certified
- Fast and reliable worldwide shipping with DHL, UPS or PostNL
- Authorised service center for Nauticam, INON....

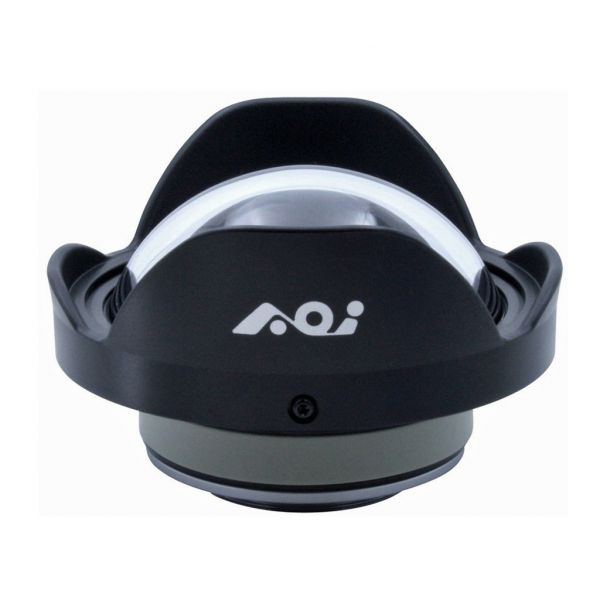

The AOI UWL-400A Wide Angle Lens is a Super Sharp Wide Angle conversion lens that attaches to the housing lens port thread and can be installed and removed during the dive. The lens is compatible with the AOI Bayonet System.
The AOI UWL-400A was designed for cameras featuring a 24mm lens (35mm equiv.) or any higher focal range.
It is perfect for photographing seascapes, divers, ship wrecks and schools of fish without moving further away from the subject, thereby still taking full advantage of water clarity and artificial lighting.
It also allows focusing on short distances, making it perfect for CFWA (Close Focus Wide Angle) photography.
The AOI UWL-400A is compact and lightweight, allowing for easy storage and transportation and comfortable handling of the lens during the dive.
Compatibility
The UWL-400A is compatible with most all cameras featuring a 24mm lens (or a higher focal range). It can also be used with some cameras featuring a wider lens by zooming in to avoid a vignette.
The UWL-400A features a 52mm thread and can be mounted directly on lens ports with a 52mm thread or on lens ports featuring a different thread, by using a compatible adaptor.
Alternatively, the 52mm threaded adaptor mount screwed into the lens can be replaced with a Bayonet mount (separately purchased) for quick and easy installation and removal of the lens when used with a compatible Bayonet adapter.
Specifications
- 52mm thread mount (removable and can be replaced with a Bayonet mount, separately purchased)
- Bezel / Barrel material: Aluminum alloy with black hard anodize, ABS
- Lens construction: 5 groups and 5 elements
- Lens coating: Hard coating on the Polycarbonate dome lens + Multi layer AR coating on all glass lenses
- Depth rated to 100 meters / 330 feet
- Magnification: 0.50X
- FOV (Field of View): 120 degrees (when used with a 25mm lens)
- Focus distance: 0mm from the dome
- Weight (on land): 606 g / 21.4 oz
- Weight (underwater): 224 g / 7.9 oz
- Dimensions (diameter x height): 121.8 x 76 mm / 4.8 x 3.0 inch
- Included in package: Neoprene dome cover, rear lens cap, secure string
| Max. depth | 100 meters |
|---|
