AOI QRS-02-MB7-WHT Mount Base voor GoPro MISSION

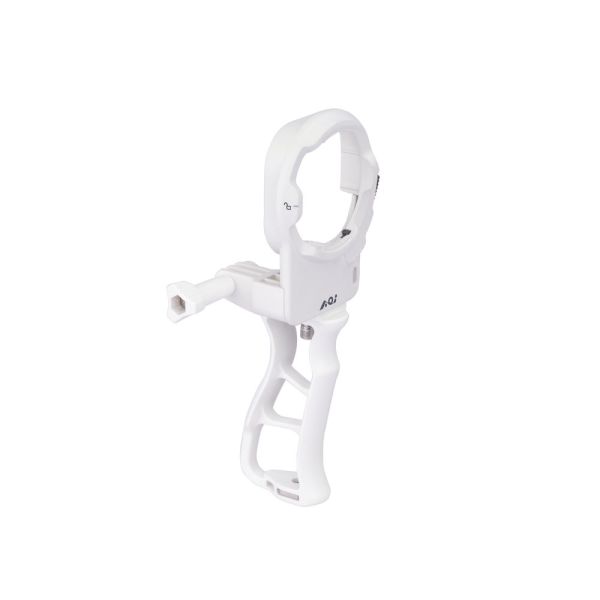

The AOI QRS-02-MB7-WHT Quick Release System 02 Mount Base is a mounting base for the GoPro MISSION 1 and 1 PRO Waterproof Case. It provides the housing-side connection for compatible AOI Quick Release System 02 lenses and can be used with the supplied pistol grip. The white mount base is made from glass fibre reinforced polycarbonate.
- Safe & easy ordering - Webshop Trustmark certified
- Fast and reliable worldwide shipping with DHL, UPS or PostNL
- Authorised service center for Nauticam, INON....
The AOI QRS-02-MB7-WHT Quick Release System 02 Mount Base is a mounting base for the GoPro MISSION 1 and 1 PRO Waterproof Case. It provides a QRS-02 interface for compatible AOI UCL-03, UWL-03 and UWL-03PRO lenses. The mount base is made from glass fibre reinforced polycarbonate and can be configured with the included pistol grip for handheld use.
Key features
- Quick Release System 02 mount base
- Designed for the GoPro MISSION 1 and 1 PRO Waterproof Case
- Compatible with AOI UCL-03, UWL-03 and UWL-03PRO lenses
- Glass fibre reinforced polycarbonate construction
- Includes a pistol grip for an alternative handheld configuration
- White finish
Lens and housing compatibility
The QRS-02-MB7-WHT is specified for the GoPro MISSION 1 and 1 PRO Waterproof Case. Compatible AOI lenses are the UCL-03, UWL-03 and UWL-03PRO. The mount base provides the interface between the waterproof case and these Quick Release System 02 lenses.
Mounting configurations
The mount base measures 80 x 51 x 94 mm without the pistol grip. With the pistol grip installed, the complete assembly measures 80 x 58 x 196 mm. The grip provides a longer handheld configuration when required.
Specifications
| Brand | AOI |
|---|---|
| Model | QRS-02-MB7-WHT |
| Product type | Quick Release System 02 mount base |
| Colour | White |
| Material | Glass fibre reinforced polycarbonate |
| Housing compatibility | GoPro MISSION 1 / 1 PRO Waterproof Case |
| Lens compatibility | AOI UCL-03, UWL-03, UWL-03PRO |
| Mount base dimensions | 80 x 51 x 94 mm |
| Dimensions with pistol grip | 80 x 58 x 196 mm |
| Weight with pistol grip | 104 g |
| Weight without pistol grip | 56 g |
What's in the box
- AOI QRS-02-MB7-WHT mount base
- Pistol grip, 1 pc
- Allen key, 1 pc
