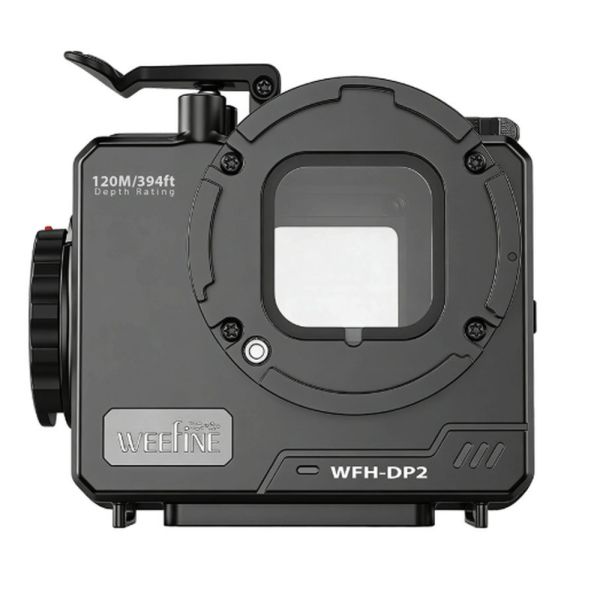

WeeFine multi function underwater housing for DJI Action 6
The Weefine WFH DP2 is an aluminium underwater housing for the DJI Action 6 action camera. It has a maximum depth of 120 m, a quick-release lens mount and USB-C camera power from an optional 18650 battery. Expansion interfaces support compatible Weefine wet optics, a ball mount and leak detector for configurable underwater video setups.
- Safe & easy ordering - Webshop Trustmark certified
- Fast and reliable worldwide shipping with DHL, UPS or PostNL
- Authorised service center for Nauticam, INON....
The Weefine WFH DP2 action camera dive housing is designed for the DJI Action 6, with a maximum depth of 120 m. Its hard-anodised aluminium-alloy body combines a quick-release lens mount, USB-C camera power and multiple accessory interfaces. Compatible WFL14 and WFL15 optics can be attached to the front, while separate expansion ports accommodate mounting and monitoring accessories.
Key features
- Designed for the DJI Action 6
- Maximum depth of 120 m
- Aluminium-alloy housing
- Hard-anodised surface treatment
- Quick-release lens interface
- USB-C output rated at 5 V, 2 A
- Internal compartment for one 18650 battery
- Battery-level indicator
- M16×0.75 expansion interface
- Ball-head expansion port
Lens and accessory compatibility
The quick-release lens interface is compatible with the WFL14 wide-angle lens and WFL15 close-up wet lens. The housing also has a ball-head mounting port for the WFA27 ball head. Its M16 expansion interfaces support the WFA51-F M16 H17 accessory and WFA101 leak detector.
Camera power
An optional 18650 battery can provide power to the Action 6 through the housing's internal USB-C connection. The USB-C output is rated at 5 V and 2 A. Weefine recommends the WBL-11C, WBL-11N and WBL-10H batteries. The 18650 battery is not included with the housing.
A dedicated switch activates and deactivates power to the USB-C port. The indicator shows blue above 80% battery capacity, green between 20% and 80%, and red below 20%. The camera's USB-C cover must be opened and the internal cable connected when this function is required.
Specifications
| Model | WFH DP2 |
|---|---|
| Product type | Action camera underwater housing |
| Camera compatibility | DJI Action 6 |
| Maximum depth | 120 m |
| Material | Aluminium alloy |
| Surface treatment | Hard anodising |
| Lens interface | Quick release |
| Expansion interface | M16×0.75 |
| USB-C output | 5 V, 2 A |
| Battery | 1 × 18650, sold separately |
| Recommended batteries | WBL-11N, WBL-11C, WBL-10H |
| Dimensions | 139.5 × 54 × 111 mm |
| Weight on land | 717 g with camera and battery |
| Weight underwater | 245 g with camera and battery |
Installation and maintenance
Remove lens filters, wrist straps and protective cases from the camera before installation. When USB-C power is required, open the camera's USB-C cover and connect the internal cable. Route the cable correctly before closing the housing so it cannot become pinched between the housing sections.
After diving, immerse the closed housing in fresh water for 30 minutes and rinse it under running water for one minute. Keep the main O-ring clean and lubricated, and inspect it for dirt, cracks, damage or deformation. Use the supplied disassembly tool rather than a sharp object when removing the O-ring.
What's in the box
- WFH DP2 housing × 1
- Operation manual × 1
- WFA162-QL67 × 1
- Lens cleaning cloth × 1
- Hand strap × 1
- Spare O-ring × 1
- Silicone oil × 1
- Disassembly tool × 1
| Manufacturer | WeeFine |
|---|---|
| Manufacturer | Importer | Foshan Weefine Technology Co.,Ltd.,No.101,first floor,building 3,No.25, Xiebian section,Jiamei building,No.25,Guangfo road,Dali Town,Foshan City,[email protected] | Importer: UWCameraStore.com,Neon 25,4751 XA,Oud Gastel,Nederland,[email protected] |
| EAN | 643556153129 |
