UW Technics 11086-HSS TTL-Converter for Canon with Isotta Underwater Housings

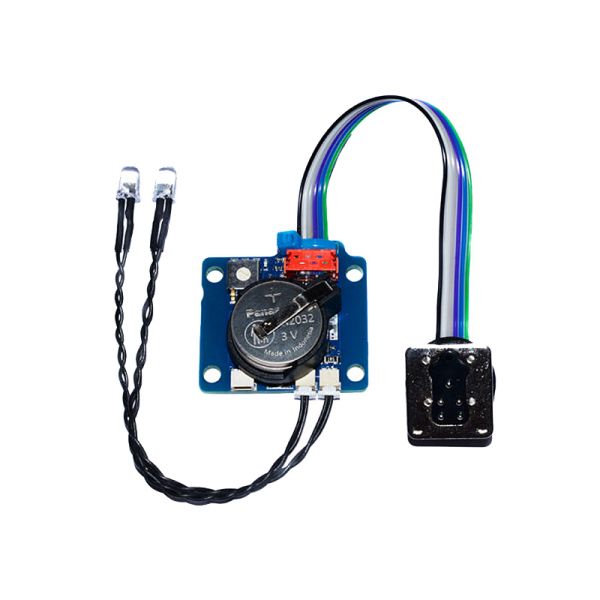

Optoelectronic TTL Converter for ISOTTA underwater photo housings for CANON cameras (including 2 LEDs).

Product is compatible with the housings equipped with new Isotta optical bulkheads having transparent plastic insert of standard 5mm-LED shape. Those plastic inserts should be replaced with 5mm-LEDs included with the 11086-HSS kit.

Option: 1 optional Electric Bulkhead connection is supported via electric output existing on the 11082-HSS board. Dual Electric Sync Cord is supported as well (for a pair of strobes usage).
For connection to Isotta original electric bulkhead, please use wire adapter #91596.

Product 11086-HSS board should be installed as a replacement of Isotta electronic circuitry in the front part of the housing, directly on the plastic podium existing in the housing (by 4 screws). Check your housing construction regarding such installation possibility before TTL system purchasing.

For the Isotta housings of former years (equipped with old style optical bulkheads), use TTL Converter #11086-HSS-M16  (including 2pcs M16 Optical Bulkheads)

SPECIFICATIONS:
▪ Compatible underwater housings: Isotta
▪ Compatible photo cameras Canon
▪ Compatible TTL strobes:
– Inon Z-330, Z-240, D-200, S-220
– Sea&Sea YS-250, YS-D1, YS-D3 Mark II, YSD3-DUO
– Ikelite DS-232, DS-230, DS-162, DS-161, DS-160, DS-125
– Retra Pro MAX (including HSS functionality)
– Marelux APOLLO-III V2.0, APOLLO-S (including HSS functionality)
– Subtronic Pro 270
▪ TTL outputs onboard: 2 optical + 1 electrical
▪ HSS (High Speed Synchronization) support (manual type HSS with Retra and Apollo strobes, – up to 1/8000s)
▪ Flash settings control by camera menu
▪ Flash settings storage in TTL Converter nonvolatile onboard memory, even after power is turned off
▪ Rear / Front Curtain synchronization support
▪ Continuous shooting mode (CL / CH) support
▪ Switching “TTL / M” underwater support
▪ (+/-) “Flash Exposure compensation” support
▪ Switching power “ON/OFF”: automatic by camera command
▪ Battery type: CR2032 (2pcs.)
▪ Current consumption (in standby mode) 0.01 mkA
▪ Battery capacity (+20°C): 65 000 flashes, 1 year in standby mode
▪ Fiber-optical cable type: 613 cores only (Nauticam 26216 / 26217, HowShot 613L, Sea&Sea 50133 / 50128 / 50135)
▪ Compatible Electric Bulkheads (optional accessories): UWTechnics electric M14 bulkheads (Nikonos, S-6, Ikelite)
▪ Electric Sync Cord support (Sea&Sea, Ikelite)
▪ Dual Electric Sync Cord support (Sea&Sea, Ikelite)
