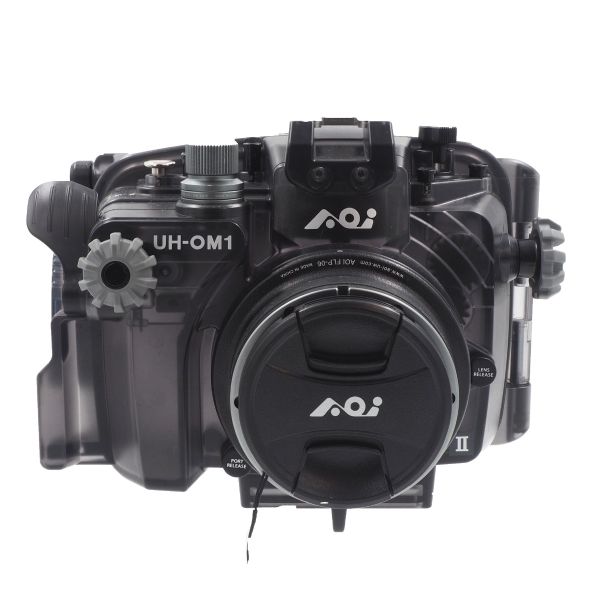

Used AOI UH-OM1 II Underwater Housing for OM System OM-1 Mark II

Used  AOI UH-OM1 II Underwater Housing for OM System OM-1 Mark II

In fine condition. Inclusive vacuum sytem< build in RC trigger, spare o-rings, 14-42PZ zoom gear. Several caps. 3monts warranty.

rgonomic and compact underwater housing

The AOI underwater housing is compact, light and ergonomic and has a maximum depth of 45 meters.  AOI has a range of ports and rings available, so you can use all kind of lenses in this underwater housing. Use the port chart to check which lenses you can use in this underwater housing. There is no port included.

Need help choosing the right lensport and extensions? Just contact us. We are happy to help you.

Built-in Vacuum Analyzation and Wet Detection System (VWS)

After placing the camera in the underwater housing and closing the casing, turn on the vacuum control system. The light will start flashing blue. Then, use the provided pump to create a vacuum in the housing. Continue pumping until the yellow light stops flashing and remains solid. Place the cap on and wait for 4 minutes. The system will now automatically check if the housing is indeed vacuum-sealed. The result of this test will be indicated automatically.

The underwater housing is also equipped with a leak detector. If water is detected inside the housing, a red light will illuminate and an audio alarm will sound.

LED Flash trigger built-in

To trigger external strobes this housing comes with a built-in LED flash trigger. Place the included Hotshoe connector in the hotshoe of the camera and connect it to the Multi-Controle device in the inside of the housing. On the front of the underwater housing, there are two LEDs connected to it. Using a fiber optic cable, the trigger signal can be transmitted to a optional external flash for manual lighting. Flashes that support the Olympus RC protocol can be controlled in TTL-mode (AOI RC strobes, Backscatter HF-1, Backscatter MF-2 for macro).

Specifications
