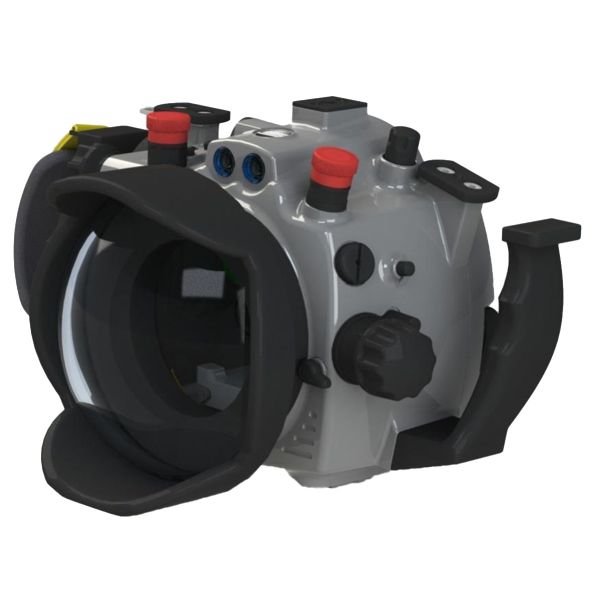

Subal CD7MII Underwater housing for Canon EOS 7D MarkII

Detail information:

The ergonomic SUBAL design and arrangement of all important elements of the housing allows the camera easy operation without letting go of the handle. The camera is mounted on a special sled, to secure the camera with precision into the housing. This allows a faster and secure mounting. A 4 mm O ring and the SUBAL Quick Lock closure system, prevents accidental crushing of the O-ring and ensures maximum safety.

The Subal monitor window provides a glare-free view to the brilliant image of the camera monitor and supports so ideally the HD-video function of the camera. Pilot lights can be attached or mounted to the top shoe.

Only high quality materials are used to produce Subal housings. A precise manufacturing process followed by the surface protection finish, to conform the standard quality level that you get in every SUBAL product.

SUBAL offers for this housing model, 3 different search systems:

the standard viewfinder slimmed  the viewfinder image, so that it can fully be overlooked despite diving mask. The GS 180 and the 45°  viewfinder  offer a view in size approximately corresponding to the camera's viewfinder, with the insight of the GS-180 horizontally, the insight of the WS-45 under 45 °.

Technical data:

Seawater resistant aluminum alloy machined from the block. Hard coating and corrosion treatment is applied to the surface of the housing. In addition 3 layers of powder coating paint are applied to give the housing the unique SUBAL color and finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel and high quality plastics, to endure all working conditions. SUBAL QuickLock closure system.

Width x height x depth:

Approx. 245 x 180 x 145 mm  (w/o port and handles)

Flash Connection:

2 Flash connectors: Optionally Nikonos V, IKELITE or S6 Sockets connected in parallel. TTL function only with S6 socket and original Canon flash unit or to comply with the Flash units from Fremdher units possible!

Flash arm mounting:

2 T-plates 25 mm, TLC - or ultralight base optional

Depth:

Maximum depth 80 meters. Optional 120 meters.
