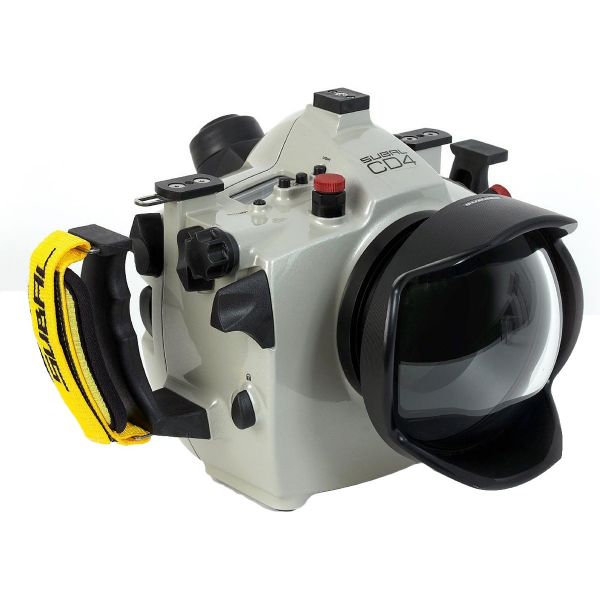

Subal CD4 housing for Canon EOS 1d Mark IV

Detail information:

The case of CD4 provides access to all the features of the Canon EOS 1 d Mark IV. Start and stop of the video function can be controlled by the right handle. The ergonomics are unsurpassed for this case, as only manufacturer , SUBAL offers access to start stop of the video function especially optimized for the EOS 1d Mark IV. Alternatively 1d Mark III or Canon EOS 1Ds Mark III in the CD4 can be used housing also Canon EOS.

The ergonomic SUBAL design and arrangement of all important elements of the housing allows the camera easy operation without letting go of the handle. The camera is mounted on a special sled, to secure the camera with precision into the housing. This allows a faster and secure mounting. A 4 mm O ring and the SUBAL Quick Lock closure system, prevents accidental crushing of the O-ring and ensures maximum safety.

The Subal monitor window provides a glare-free view to the brilliant image of the camera monitor and supports so ideally the HD-video function of the camera.Pilot lights can be attached or mounted to the top shoe.Only high quality materials are used to produce Subal housings. A precise manufacturing process followed by the surface protection finish, to conform the standard quality level that you get in every SUBAL product.

SUBAL offers for this housing model, 3 different search systems: the standard viewfinder slimmed the viewfinder image, so that it can fully be overlooked despite diving mask. The GS 180 and the 45°  viewfinder  offer a view in size approximately corresponding to the camera's viewfinder, with the insight of the GS-180 horizontally, the insight of the WS-45 under 45 °.

All SUBAL ports with bayonet mount on this case can be used (except DP-FE2).

Technical data:

Seawater resistant aluminum alloy machined from the block. Hard coating and corrosion treatment is applied to the surface of the housing. In addition 3 layers of powder coating paint are applied to give the housing the unique SUBAL color and finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel and high quality plastics, to endure all working conditions. SUBAL QuickLock closure system.

Width x height x depth:

255 x 235 x 155 mm (w/o port and handles)

Flash connection:

2 Flash connectors: optionally Nikonos V, IKELITE or subtronic S6 Sockets TTLFunktion only with S6 connected in parallel, socket and original Canon flash unit possible!

Flash arm mounting:

2 T-plates 25 mm, TLC - or ultralight base optional

Transfers and functions:

Main switch, shutter release, zoom (manual focus), front and rear main dial, lense release, AF-ON, cursor, video start-stop

Push buttons for:
Fashion, AF-drive, measuring mode and flash compensation, light, ISO, exposure compensation, menu, info, playback, delete, Func., protect, set, AE lock, AF area selector.
