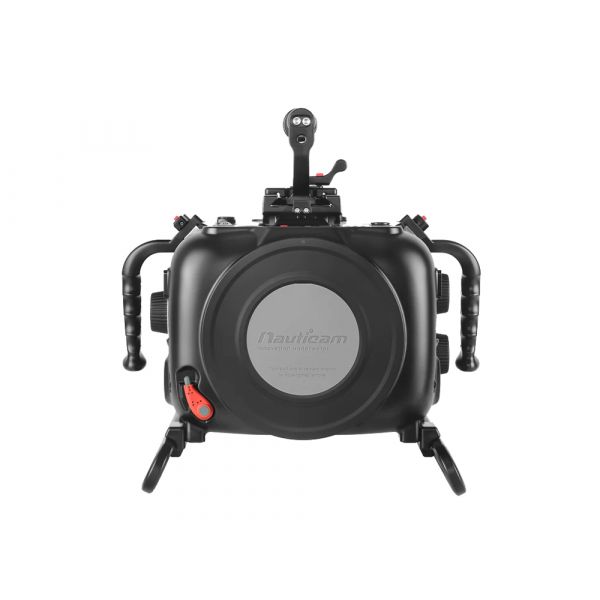

Nauticam underwater housing for ARRI ALEXA 35

* This version of the ALEXA 35 Housing does not include any extension rings or ports.

This Nauticam system is very easy to set up. Armed with only a coin and an allen wrench, the entire support and lens control system is constructed on the camera base plate outside of the housing. This means the rig can be built on a table, in good light, with plenty of working space. Once the camera is assembled on its tray, the entire system slides into the housing, and locks securely in place.

Lens control system
Similar to the ALEXA Mini and Mini LF housing, the ALEXA 35 housing features an adjustable gear tower to control Focus, Iris and Zoom all from the knurled knobs on the exterior of the housing. This "diver controlled" setup completely satisfies the needs of a single operator.

For more production oriented shoots which require remote operation and control, the newly designed Nauticam ALEXA 35 housing features two upper and two lower 15mm rods allowing the use cforce Plus and cforce mini motors paired with the ARRI Hi-5 Hand Unit. Only the upper 15mm rods will support the larger cforce Plus motors. Unlike previous generation housings, the motors will now drive the lens itself rather than through the adjustable gear tower. With the standard housing, two motors can be mounted for short primes. When adding on the optional 16422 100mm Housing Extension, you can mount 3 motors to the 15mm rods allowing the use of zoom lenses or longer primes.

The housing also ships with one 3/4″ Hydroflex style bulkhead allowing the power, remote control, and remote monitor umbilical from other Hydroflex rental systems to be used on Alexa Mini.

A tremendous range of lenses is supported, from very small Zeiss Standard Speeds, to very large cinema styled zooms. Our port system has been tested with Arri UWZ 9.5-18, the most sophisticated wide angle lens ever produced, with excellent results.

OPTICALLY-COATED GLASS DOME PORT
Nauticams exclusive 250mm optically coated glass dome port is supplied with every system, and we believe it is the best optic available for cinema lenses. The 250mm dome port diameter – 10 inches – is a key for good wide angle imaging performance with many cinema lenses underwater. Smaller domes can work well with close focusing SLR lenses, but many cinema lenses have a longer minimum focus distance in the .35-.40m (14-16″) range. Using Arri Master Prime T1.4/14mm, with its .4m MFD as an example, the 250mm dome provides clearly superior results, with much less corner softness than smaller domes. The glass dome is rugged, and extremely resistant to scratching. Broadband Anti-Reflective Coatings eliminate flare, reflections, and ghosting from the port optic. A robust machined aluminum shade protects the dome, and provides additional flare resistance.

BATTERY CONFIGURATIONS
The housing ships with an V-Mount battery plate and LEMO connector for the ALEXA 35 camera. Ample space is available for a range of battery pack sizes to be used in the housing, providing long operation times. Surface suppled power is also an option for for tethered all day shooting.

TRIM WEIGHTS
The optional trim weights can be moved independently along the length of the hosuing skids and additional mounting points are featured on the housing itself to trim the housing to the shooter's exact needs.

EXTERNAL MONITOR SUPPORT
The SmallHD 503 Ultrabright or the Atomos Ninja V monitor can be mounted in the Nauticam NA-503-S or Nauticam Atomos Ninja V-S housings and be connected via SDI bulkheads and cables allowing greater flexibility when positioning the monitor on the Nauticam Alexa 35 housing.

SDI OUTPUT
Required accessories for SDI Cable System

25058 M16 SDI Bulkhead
25060 SDI Cable in 0.3m Length

Recommended monitor housing

17925S Nauticam NA-503-S Housing for Small HD 503 Ultrabright (SDI Cables and bulkhead are included)
17922S Nauticam Atomos Ninja V-S Housing (SDI Cables and Bulkhead are sold separately)

Recommended SDI Surface Cables

25064 SDI Surface Monitor Cable in 15m Length
25065 SDI Surface Monitor Cable in 45m Length

VACUUM CHECK AND LEAK DETECTION SYSTEM
The Nauticam ALEXA 35 housing features Nauticam's field-tested Vacuum Check and Leak Detection System that provides constant updates on the water tight and safe-to-dive status of the housing. By drawing a slight vacuum inside the housing using a reliable and compact manual hand-pump, the system is able to insure water-tightness before entering the water as well as throughout the dive.

A simple color-coded LED lighting system, easily visible at the rear of the housing lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

TECHNICAL SPECIFICATIONS

Depth Rating Housing: 80m
Weight in air (housing only): 11.3kg
Buoyancy in water (incl. camera, lens, bebob B290 battery and 250mm dome): 6.0kg
Dimensions (W x H x D): 310mm x 246mm x 500mm
Port System: N200


What's In The Box:

16139 Digital Cinema System for ARRI ALEXA 35 Camera
3 Lens Control Assemblies with stackable drive shafts and 15mm rods
Vacuum Check & Leak Detection System, Dual Activation Vacuum Valve
Quick release and adjustable top handle, left handle and right handle
Housing Skids
1x Travel Hard Case
Tool Kit & O-ring Kit


Surface Control Accessories:

16223 LCS Surface Cable for Alexa Mini Housing (to use with WCU-4)
16249 LBUS Surface Cable for Hi-5 Hand Unit to use with Nauticam Alexa 35 Housing (30m)
16247 Replacement of Internal LBUS Cable (from the Camera to housing bulkhead)
16248 Converting Cable for 16223 to use with Hi-5 Hand Unit
*1. 16247 Internal LBUS Cable is required for existing 16223 to use with WCU-4.
*2. 16247 and 16248 are required for existing 16223 to use with HI-5 hand unit, or buy the new16249 instead.
16255 Nauticam Ethernet Cable for Surface Control of Alexa Mini Housing (incl. Lemo bulkhead with integrated Ethernet Cable and external Duracell cables）


Other Accessories:

16232 0.25kg Trim Weights for 16227 (4pcs)
16233 0.5kg Trim Weights for 16227 (4pcs)
17959 Housing Mounting ball with 1/4'' screws
25221 M10 strobe mounting ball for housing
17961 Swivel and Tilt Adjustable Monitor Mount System (*new)
25058 M16 SDI Bulkhead
25059 SDI Cable Extension Adaptor
25060 SDI Cable in 0.3m Length (for connection from camera to SDI bulkhead)
25063 SDI Cable in 30m Length (for connection between SDI bulkheads)
25064 SDI Surface Monitor Cable in 15m Length
25065 SDI Surface Monitor Cable in 45m Length
