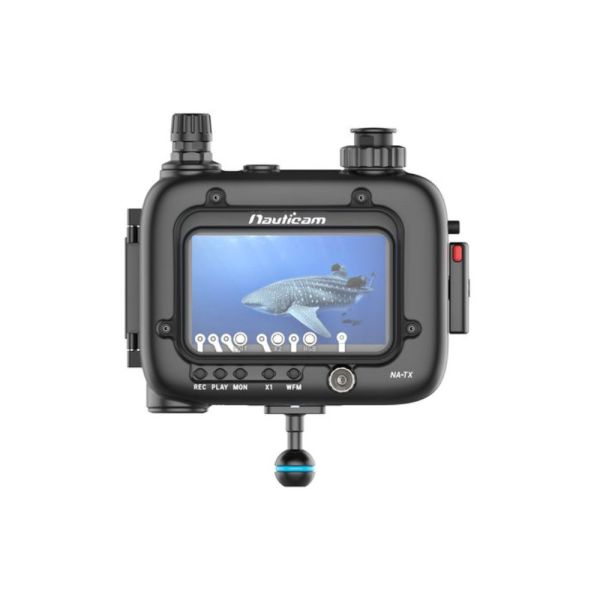

Nauticam Ninja TX underwater housing for Atomos Ninja TX

The Nauticam Atomos Ninja TX underwater housing 16613 is a 100 m housing for Atomos Ninja TX, Ninja TX GO and Ninja RAW monitor-recorders. It is designed for underwater video systems that require external monitoring and recording with physical touchscreen control. HDMI and SDI connections support different signal configurations, while the integrated vacuum check and leak detection system provides housing status feedback.

Key features

• Compatible with Atomos Ninja TX, Ninja TX GO and Ninja RAW
• Depth rating: 100 m
• Physical buttons and selector knob for touchscreen functions
• HDMI input and HDMI output support
• HDMI input with SDI output through cross-conversion
• SDI input and SDI output support
• Integrated vacuum check and leak detection system
• Pre-installed M16 Vacuum Valve II
• Rotary housing lock

Monitor compatibility

The housing supports the Ninja TX, Ninja TX GO and Ninja RAW. This allows the monitor-recorder to be selected according to the required recording and connectivity functions while using the same underwater housing.

Power options include Sony NP-F series batteries and SmallRig L-Series/NP-F970 USB-C rechargeable batteries. The maximum supported battery dimensions are 71.6 x 38.5 x 74.6 mm.

Signal connections

The housing supports HDMI input with HDMI output, HDMI input with SDI output through cross-conversion, and SDI input with SDI output. The required cables and adaptors depend on the connected camera housing and selected signal configuration. SDI input/output and HDMI-to-SDI cross-conversion require the Atomos Ninja TX. The Ninja TX GO and Ninja RAW are HDMI-only monitor-recorders.

Nauticam specifies the supported HDMI 2.0 and SDI configurations by camera housing in its current system chart. Check the Nauticam Atomos Ninja TX Housing system chart when selecting cables, adaptors and SDI connection components.

Accessory connections include two M16 and two M28 ports on top and one M28 port on the bottom. The top and bottom each have four 1/4-20 and four M3 mounting threads for compatible accessories.

Specifications

Vacuum system and maintenance

A CR2032 battery powers the internal vacuum check and leak detection system. A multi-colour LED on top of the housing provides system status feedback. Check the vacuum system before entering the water and inspect and maintain the housing O-ring according to the manufacturer's instructions.

What's in the box

• NA-Atomos Ninja TX housing
• 25625 M16 Vacuum Valve II, pre-installed
• 25089 M28 HDMI 2.0 adaptor, pre-installed
• 17958 mounting ball, pre-installed
• Monitor hood
• 90137 housing O-ring, lubricant and O-ring remover
• CR2032 battery for moisture alarm and vacuum system
• Allen wrench set
• Padded travel case
