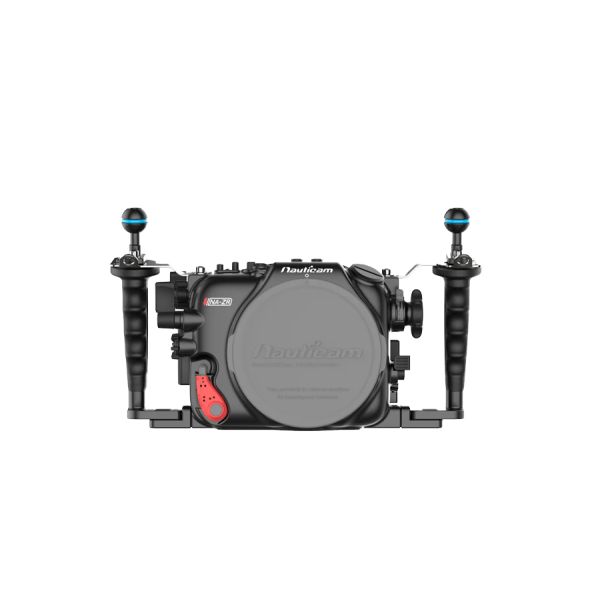

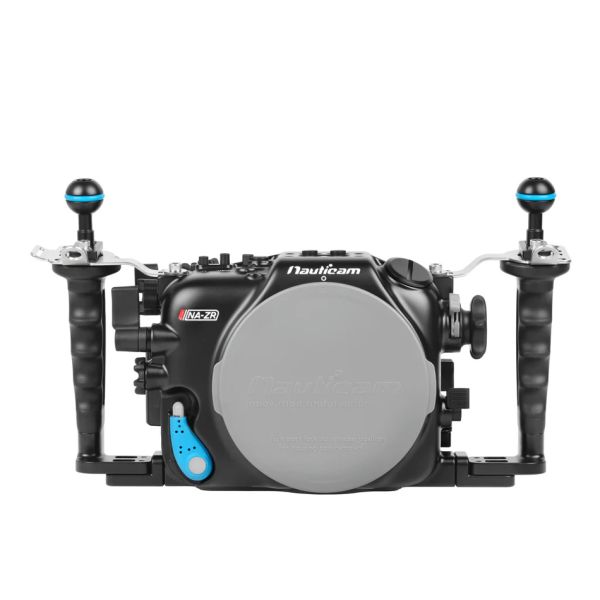

Nauticam NA-ZR underwater housing for Nikon ZR camera

The NA-ZR underwater housing upholds Nauticam’s dedication to innovation. Essential controls are conveniently accessible via ergonomic handles, facilitating an efficient setup that optimizes time spent in the water and minimizes time spent on rig maintenance. The N120 port system accommodates Nikon Z Mount lens with a new gear system. Nauticam’s extensive range of ports and in-house corrective optics complement the NA-ZR’s capabilities. When equipped with an accessory vacuum valve, the integrated vacuum check and leak detection system provides continuous updates on the housing’s watertight integrity. A vacuum system reset switch, located beneath the tray, eliminates the necessity to open the back of the housing during lens or port changes. The NA-ZR  supports additional mounting with a built in 1/4-20 cheese plate.

Nikon F-Mount & Z-Mount lens support

The Nauticam NA-ZR is designed to accommodate Z-Mount lenses.  With the compact design of the NA-ZR housing, there are newly released zoom and focus gears.  There is also the 22225 N120 FTZ Adapter ER 25 with Knob which will allow you to manual focus Z-Mount lenses and their corresponding gears.  For complete compatibility details, you can view the NA-ZR Port Chart.

Premium professional optics

Nauticam’s professional water-contact optics deliver the highest underwater image quality. The FCP, WACP, and WWL lines enhance wide-angle, while the MFO and SMC offer exceptional macro and super macro capabilities. The EMWL allows you to shoot macro, wide-angle, or combine the styles for unique images.

Nauticams Mission Control

In true Nauticam fashion, essential controls are placed as close to the handles as possible, making these housings the most intuitive and user-friendly available. Our engineers strategically position controls where they’re needed most, rather than simply near the corresponding buttons on the camera. Dials feature rubberized finger grooves, and levers are designed for smooth operation.

Integrated Vacuum Check & Leak Detection Electronics

The Nauticam vacuum check and leak detection system is shipped with NA-ZR as standard equipment. Combined with an accessory vacuum valve (PN 25625), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

Flash Triggering

Flash triggering on the Nikon ZR in the NA-ZR is available via either optical or electrical trigging.

HDMI Output at NA-ZR housing

Required Accessories for HDMI 2.0 Cable System

• 25086 – M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
• 25077 – M24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-XT3 to use with Ninja V housing, TBA)

Monitor Housing Options:

• 17922 – Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Recorder/Monitor/Player (excl. HDMI 2.0 cable)
• 17922S – Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Recorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

Required Accessories for HDMI 1.4 Cable System

• 25033 – Standard HDMI bulkhead with M16 thread
• 26326 – M24-M16 Adaptor for use with 26325 (instead of existing 25081)
• 25076 – HDMI (D-D) Cable in 200mm length for NA-XT2/XH1/A6400 (for internal connection from HDMI bulkhead to camera)

Monitor Housing Options:

• 16611 – Nauticam 7'' G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
• 16612 – Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
• 25047 – HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads) *25047 is required for use with 16612 monitor housing
• 17927 – NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input *17927 includes 25033, 25038, 25100
• 17922 – Nauticam Atomos Ninja V Housing for Atomos Ninja 5 4Kp60 4:2:2 10-bit Recorder/Monitor/Player (excl. HDMI 2.0 cable)
• 25082 – HDMI 1.4 Cable for Ninja V housing in 0.75m length (for connection from Ninja V housing to HDMI bulkhead)

*25082 is required for use with 17922 monitor.

Monitor / Tripod Mounting System

• 17951 – Nauticam Atomos Shogun housing mounting system
• 17952 – Nauticam Monitor Housing Mounting Adaptor
• 17954 – Tripod plate for NA-A7S and NA-GH4
• 17960 – Universal Quadra-Pod Plate for Nauticam Housings
• 17961 – Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)
• 25218 – Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)

Specifications:
Dimensions: 338 x 200 x 125mm
Depth: 100m
Port mount: N120

What's in the box:

•    NA- ZR Housing
•   2x handles with mounting balls and handle brackets
•   Housing Cap
•   2x plugs for Optical fiber cable mount
•   Panasonic CR-2032 Battery (pre-installed for moisture alarm)
•   Spare main O-ring, O-ring remover and lubricant
•   Set of Allen Keysc
•   Padded housing bag and shoulder strap
