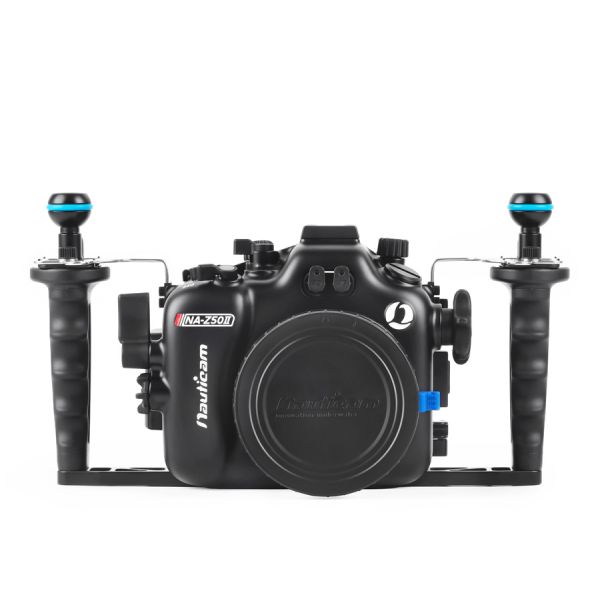

Nauticam NA-Z50II underwater housing for Nikon Z50 II

The Nauticam NA-Z50II is designed to work exclusively with the versatile Nikkor Z DX 16-50mm lens featuring a fixed flat port that is compatible with our powerful WWL-C wide-angle wet optic and CMC-1 macro optic via the pre-installed bayonet-mount system. The NA-Z50II’s form-fitting style and intuitive control placement make the system ideal for the traveling photographer that demands a reliable and portable underwater imaging platform.

Maximum Efficiency
The compact nature of the Nikon Z50 II is translated directly into the design of the NA-Z50II.  Compared to the NA-Z50 housing for the original Nikon Z50, the NA-Z50II is built around a clamshell closure that allows for a drop-in installation of the camera with no tray necessary.

Mission Control
The NA-Z50II features intuitively placed and easy to reach controls for critical functions, making the integrated and stabilized ergonomic handles Mission Control for your underwater imaging.  Textured knobs for the main and sub command dials are within easy reach of the right handle alongside dedicated video REC and AF-ON buttons.

For video shooters, the Nikon Z50 II maintains separate exposure settings in Still and Video modes and switching between the modes is done via a convenient switch which is easily accessed on the top of the NA-Z50II housing. With extensive Auto ISO controls, the NA-Z50II is an ideal platform to create video content with the Z 50's UHD 4K 60p/30p or HD 120p capture.

Flash Triggering
The Nikon Z50 II has a pop-up flash that can be used to provide accurate TTL flash triggering using the integrated fiber-optic bulkheads. A switch on the housing allows the flash to be raised or lowered to allow quick switching between ambient and artificial light shooting.

Optimized Optical Design
The NA-Z50II is built around the Nikkor Z DX 16-50mm lens and features a fixed flat port with a pre-installed bayonet mount.  Utilizing Nauticam’s WWL-C wide-angle optic, the Z50 II is able to achieve unrivaled sharpness and an impressive 130º field-of-view and full zoom-through capability.  The wet-mate nature of the lens allows it be removed underwater and switched for the powerful CMC-1 macro lens making the NA-Z50II a true do-anything system.  The integrated bayonet-mount makes switching quick and easy.

Integrated Vacuum Check and Leak Detection System
The Nauticam vacuum check and leak detection system is shipped with NA-Z50II as standard equipment. Combined with an optional accessory vacuum valve (PN 25625), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

Main features:

- Dimensions(W x H x D):  290mm x  146mm  x 156mm
- Weight: 1.95kg (in air)
- Buoyancy  in water: -0.49kg (incl. camera, lens & battery)
- Rotary Housing lock
- Fixed flat port with bayonet mount (support Nikkor Z DX 16-50 to use with WWL-C and CMC-1
- Integrated zoom gear for Nikkor Z DX DX 16-50
- Integrated two handles with 2x 1'' ball and handle brackets
- Flash pop up knob for support camera pop up flash
- 1x M16 (for use with optional 25625 M16 Vacuum Valve II)
- 1x Cold Shoe
- 1x M10 threaded hole

What’s in the box:

- NA-Z50II Housing with handles and fixed Flat port

- Bayonet mount Cap.

- 2x Plugs for Optical fiber cable mount,

- Panasonic CR-2032 Battery (pre-installed for moisture alarm)

- Spare main O-ring, O-ring remover and lubricant

- Set of Allen Keys

- Padded housing bag and shoulder strap
