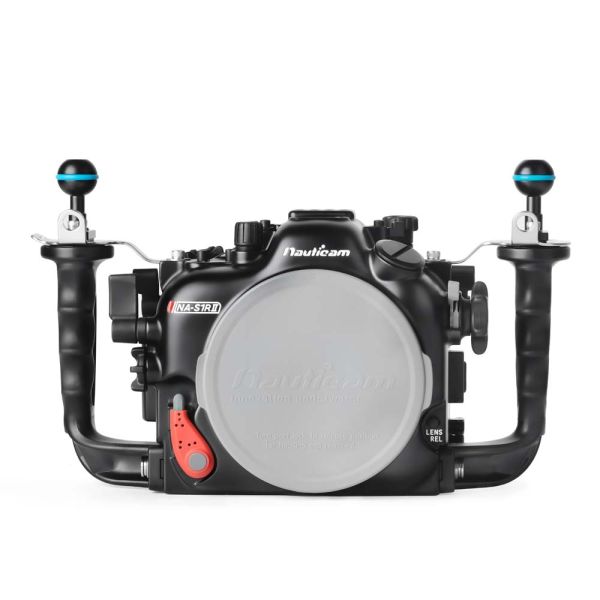

Nauticam NA-S1RII Underwater Housing for Panasonic Lumix S1R II

Flash Triggering
For rapid-fire manual flash triggering, the NA-S1RII is compatible with the Mini Flash Trigger (26305) which uses small LED units to trigger external flashes via Nauticam Universal Fiber Optic Cables (26216).

Vacuum Check and Leak Detection System
The Nauticam vacuum check and leak detection electronics are shipped with the NA-S1RII as standard equipment. Combined with an optional accessory vacuum valve this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

HDMI Output

1) Required accessories for HDMI 2.0 Cable System

-25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
-25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-a1 to use with Ninja V housing)

Compatible HDMI 2.0 Monitor Options

-17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
-17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
-17926 Nauticam NA-Ultra5 Housing for SmallHD Ultra 5 Camera Monitor

2) Required accessories for HDMI 1.4 Cable System (can be installed on either the M24 or the M16 accessory port)

-25033 Standard HDMI bulkhead with M16 thread (included in 17927)
-26326 M24-M16 Adaptor for use with 26325
-25075 HDMI (D-A) Cable in 190mm Length for NA-GH5/G9 (for internal connection from HDMI bulkhead to camera)

Compatible HDMI 1.4 Monitor Options

-17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2'' HDMI Monitor
-17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
-25082 HDMI1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V Housing to HDMI bulkhead) Required for use with 17922

Specifications Nauticam Lumix S1R II underwater housing:

Dimensions    330mm(W) x 200mm (H) x 165mm (D)
Weight In Air    2.25kg
Weight in Water    Positive 0.5kg (includes camera and battery)
Depth Rating    100m
Port Opening    N120

What's in the box
NA-S1RII Housing
90137 Spare main housing o-ring
2x Plugs for Optical fiber cable mount
2x Handles with mounting balls
Panasonic CR-2032 Battery (for moisture alarm)
Set of Allen Keys
Padded housing bag and shoulder strap
