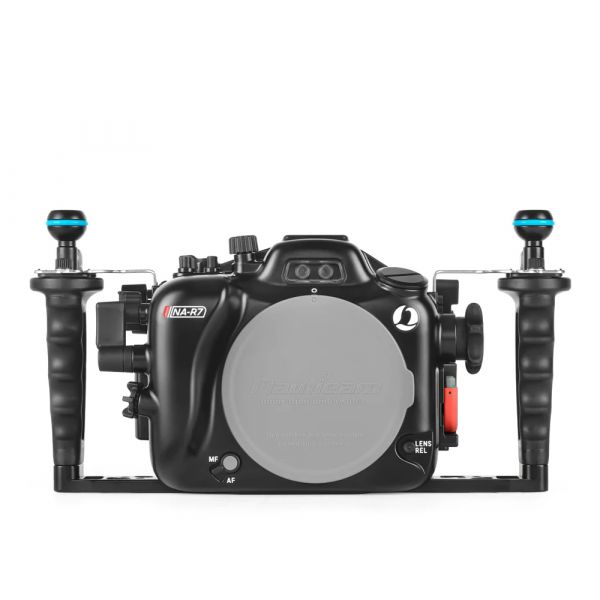

Nauticam NA-R7 Housing for Canon EOS R7 [17338]

Do we still need to tell you how good Nauticam is? Also with this R7 housing, Nauticam's engineers have made the control in such a way that everything can be found where you expect it and not "because that's where it's easiest to make". It is a real pleasure to work with this underwater housing.

Vacuum check and leak detection
The Nauticam vacuum check and leak detection electronics are shipped with the NA-R7 as standard equipment. Combined with an accessory vacuum valve (25624) this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

Flash Triggering
Flash triggering is achieved via one of two optional Flash Triggers, a manual LED trigger (PN 26305) or a TTL Flash Trigger (PN 26321) that use the built-in fiber optic bulkheads with optional fiber-optic cables to trigger supported strobes. For controlling strobes that do not support fiber optic flash triggering, a variety of legacy hot-shoe flash control bulkheads are available.

Wide angle conversion and shooting macro
Three in-house Nauticam optical designs, designed by founder and Managing Director Edward Lai, are the perfect lenses to complete an R7 underwater system. The magic of the wet lenses is their tremendous versatility, paired with outstanding in-water performance. Both macro and super wide angle optics are available to the underwater photographer on the same dive. These lenses are completely engineered for use in water, providing the highest image quality available today in a wet mount optic.

WWL-1B is a wide angle conversion lens, compatible with the Canon RF-S 18-45mm f/4.5-6.3 IS STM lens. This combination provides an 130 degree diagonal field of view with full zoom through down to a 60 degree diagonal field of view! The WWL-1B will provide you with class leading center sharpness, corner sharpness, and contrast resulting in the clearest wide angle images possible underwater.

CMC-1 and CMC-2 provide the best macro performance available, with two different magnification strengths, suitable for a wide variety of macro subjects. With the Canon RF-S 18-45mm f/4.5-6.3 IS STM lens, CMC-1 is capable of 0.8X magnification, while CMC-2 achieves 0.6X magnification. CMC-2 is less strong, making it easier to use with more accurate autofocus. CMC-1 is best suited for the smaller macro subjects. Macro enthusiasts will surely want both!

Specifications:
Dimensions: 323mm x 173mm x 138mm (W x H x D)
Depth Rating: 100m
Weight in air: 2.3kg
Buoyancy in water: Negative 0.1kg (incl. camera and battery)
Port Opening: N100

In the box:

• NA-R7 Housing
• 90137 Spare main o-ring, lubricant and removal tool
• 2x Plugs for fiber optic mount
• 2x Handles with mounting balls
• Set of allen keys
• CR2032 battery for leak detector
• Padded housing bag and shoulder strap

Optional Accessories:

25624 M14 Vacuum Valve II (Pushbutton Release)
32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1
32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1
32201 Nauticam 180˚ straight viewfinder
32203 Nauticam 45˚ viewfinder
26305 Manual Flash Trigger for Panasonic/FujiFilm/Canon
26321 TTL Flash Trigger for Canon
26216 Universal Optical Fiber Cable
25081 M24-M16 Step Down Adaptor
25020 M14 Nikonos 5-pin bulkhead with Canon hotshoe connection
25017 M14 6 pin bulkhead for Canon system
25022 Canon Hotshoe Plug to M14 Ikelite Style Bulkhead ~X and Ground Connection Only

Mounting Accessories:

25221 M10 strobe mounting ball for housing
25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
17959 Housing Mounting ball with 1/4'' screws
25218 Mounting Ball Set for Tripod (for NA-A7RIII/BMPCC/XT3/RIV/Z50/R7)
17960 Universal Quadra-Pod Plate for Nauticam Housings

HDMI Recommended Configurations

For HDMI 2.0 Cable System

25086 M24 adaptor for HDMI 2.0 Cable
25077 M24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-XT3/R5 to use with Ninja V housing)
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V and Ninja V+ 5" Recorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

For HDMI 1.4 Cable System

25033 Standard HDMI Cable with M16 Thread
25081 M24-M16 Step Down Adaptor
25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/NA-XH1/NA_A6400
17925 NA-503-H Housing for SmallHD 503 UltraBright On-Camera Monitor (With HDMI 1.4 input)
17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2" 4K HDMI Monitor with
HDMI 1.4 input
