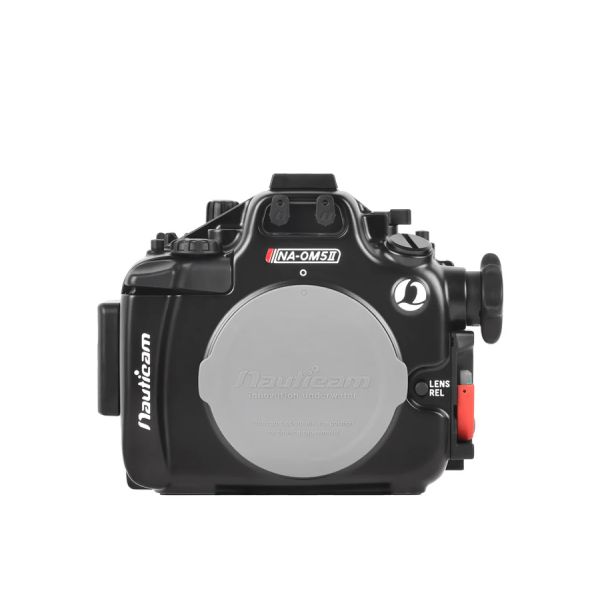

Nauticam NA-OM5II Underwater Housing for OM System OM-5II

The NA-OM5II adheres to Nauticam’s Mission Control philosophy, ensuring accessible and intuitive control for critical functions. These include Front & Rear dials, REC, AF-ON, CP, Fn1 and Fn2 Lever. Nauticam’s Port locking system facilitates rapid and seamless lens changes. Battery and memory card replacements are equally effortless thanks to the rotary-style housing lock and lens release button. An optional M14 vacuum valve unlocks the full capabilities of the pre-installed Vacuum Check and Leak Detection System. The NA-OM5II LCD window, available as an optional feature, enables the utilization of Nauticam Full Frame viewfinders for enhanced viewing. For lighting and accessories, the housing incorporates an M10 treaded mounting point, a cold shoe mount, and optional handles and tray equipped with strobe mounting balls.

Flash Triggering
For high-speed manual flash triggering, the optional Mini Flash Trigger for Olympus (26306) can be used. The trigger is powered by onboard coin-style lithium batteries, with thousands of flashes available from a set. Electrical triggering of legacy wired strobe systems is possible via an electrical Nikonos style bulkhead (optional).

Premium professional optics
A camera system is only as good as the optics placed in front of it. Nauticam's extensive line of dome and flat ports support a wide variety of Micro Four Thirds lenses. For even higher image quality and versatility, the NA-OM5II can be used in conjunction with Nauticam's lineup of Water Contact Optics. For example, with the Olympus 14-42mm f/3.5-5.6 EZ Lens, the Nauticam WWL-1 provides a full zoom through ultra wide-angle 130º field of view.

Integrated vacuum check- and leak detection
The Nauticam vacuum check and leak detection system is standard equipment on the NA-OM5II. When combined with the optional M14 Vacuum Valve II (PN 25624), this monitoring system continuously provides updates on the water tightness and safety of the housing. A simple coded LED lighting system informs the user if the vacuum is functioning properly or if the housing is losing vacuum. Leak detection is integrated into the same circuit, so if water enters the housing, an audible and visual indication will be given.

HDMI Output - Required accessories for HDMI 1.4 Cable System

• 25028 – Socket extension for 25032 HDMI bulkhead with M16 thread
• 25032 – Custom HDMI bulkhead to use with socket extension
• 25076 – HDMI (D-D) Cable, 200 mm length for NA-XT2/XH1/A6400 (for internal connection from HDMI bulkhead to camera) – TBA

Compatible Monitor Options

• 16612 – Nauticam 7" T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
  • 25047 – HDMI (D-D) cable, 800 mm length (for connection between HDMI bulkheads) – *25047 is required for use with 16612 monitor housing*
• 17927 – NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input – Includes 25033, 25038, 25100
• 17922 – Nauticam Atomos Ninja V Housing for Atomos Ninja 5 4Kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
  • 25082 – HDMI 1.4 Cable, 0.75 m length (for connection from Ninja V housing to HDMI bulkhead) – *25082 is required for use with 17922 monitor*

Specifications:
Dimensions:  197mm(W) x 154mm(H) x 99mm(D)
Weight in air:  1.3kg
Buoyancy in Water:  -14g (Includes camera and battery)
Depth Rating:   100m
Port Mount:  N85

In the box:

• NA-OM5II Housing
• Housing Cap
• 2x Optical bulkhead caps
• Panasonic CR-2032 Battery (pre-installed for moisture alarm)
• 90139 Spare main O-ring, O-ring remover and lubricant
• Set of Allen Keys
• Padded housing bag and shoulder strap
