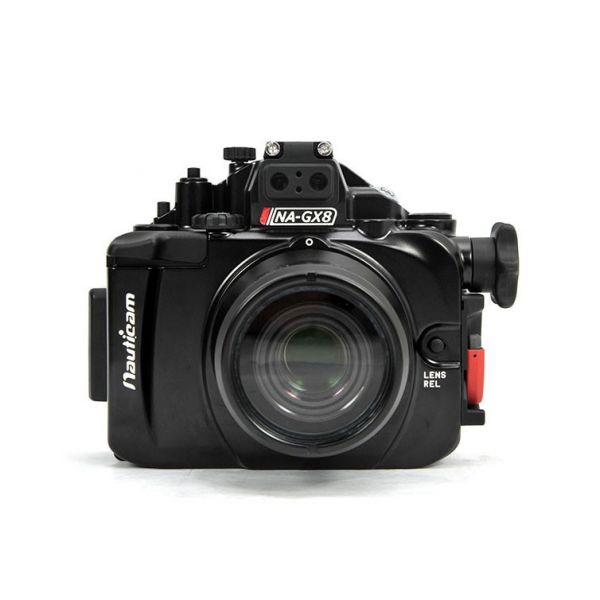

Nauticam NA-GX8 housing for Panasonic Lumix GX8 [17711]

The pioneering features of the earlier Nauticam housings are apparent with the simple but secure rotating housing latch and superb progressive shutter release providing optimal “feel”. The NA-GX8 also sports some of Nauticam’s latest technology with the port locking latch that replicates the famous Nauticam DSLR port latch – making housing port changes easier than ever.

The new housing takes full advantage of the Panasonic's many features and allows easy one handed operation of key controls like the three command dials and the video record button. The NA-GX8 supports 7 programmable buttons on this camera, easily accessible from the housing. The sculpted shutter release makes "half-press" focus incredibly easy. For fans of “thumb focus” (moving the autofocus from half-press of the shutter to a button operated by the right thumb), this is fully supported with the AF/AEL button.

Attention to detail is everywhere, from the comfortable thumb rest on the right to the large knurled command wheels and zoom/focus knob. Video is easily accessed; the video button is given special treatment, being larger, concave and red in color. For tripod use, the housing features two standard 1/4" 20 tripod holes, or is also tripod ready when using the Flexitray W camera tray.

Strobe firing is supported via fiber optic through the use of the optional Panasonic DMW-FL70-S flash unit. Accurate automatic flash exposure (TTL flash) is easily accomplished via strobes like the Inon Z-240 or S-2000.

The NA-GX8 comes standard with the Nauticam vacuum system electronic built in. By default, it serves as a audible and visual leak detector, but add a Nauticam M14 Vacuum Valve, (25611) and it becomes a vacuum check system - early warning for problems with watertight integrity - which means peace of mind when shooting underwater.

Each control on the housing is clearly labeled, making it easy to learn the system. Milled from solid aluminum, the housing is rated to 100m/330ft depth, and is rugged and ready for use!

Nauticam vacuum check system
The Nauticam vacuum check and leak detection system electronics are included with the NA-GX8 as standard equipment.  Combined with an optional vacuum valve, this monitoring system provides constant updates on the water tight and safe to dive status of the housing. The operator can, at a glance, instantly see the water tight and safe-to-dive status of the housing. A simple coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. The NA-GX8 features a 2nd bulkhead port (M14) specifically for installing optional vacuum valves, leaving the other bulkhead port for HDMI, sync cables and other accessories.

Details and specifications

• Weight: 1.17kg
• Dimensions: 206mm (W) x 154mm (H) x 99mm (D)
• Depth Rating: 100m
