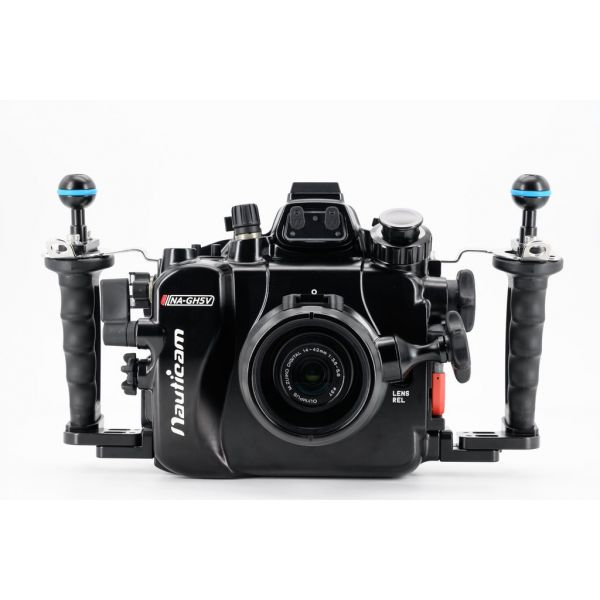

Nauticam NA-GH5SV Housing for Panasonic GH5 / GH5S / GH5 II

Shown with lens port (not included). A lens port must be purchased separately for waterproof operation.

The NA-GH5SV housing is small, but not at the expense of functionality or ergonomics.  Integrated handles provide a sturdy and comfortable base to operate the system from.  A sculpted shutter release lever, thumb lever for AE-L / AF-L, and well placed control dials provide the same operational feel as any Nauticam DSLR housing.  Control buttons are placed within easy reach of the handles, with sufficient spacing to allow easy operation, even by feel. The NA-GH5 is a professional grade underwater housing, built with cutting edge manufacturing technology, supporting the pro-level GH5, GH5S and GH5II camera bodies to its full potential.

The GH5, GH5S and GH5II feature four custom White Balance Presets allowing the video shooter to store settings for various depths as well as natural/artificial light scenes and switch between them quickly on a dive.  Access to these presets is a breeze with the NA-GH5 mission control layout.  A second thumb lever on the right side of the housing, easily accessed from the handle, brings up the white balance presets.  Simply scroll to the desired preset and film away.

Premium professional optics

The variety of optics solutions for the NA-GH5 are staggering.  Whether you're choosing a MFT open-source standard lens such as the Panasonic 8mm Fisheye or the ultra-fast Olympus 60mm macro lens there is an N85 port system port for you.

Looking for zoom-through capability and both macro and wide on the same dive?  The WWL-1 and CMC wet-mate system allows for unmatched corner sharpness for your wide angle and ridiculous reproduction ratios for your macro.  The bayonet mount system allows for switching underwater.

TTL and manual optical strobe triggering

Add the optional Panasonic DMW-FL70 Flash inside the housing for reliable, accurate triggering of optical TTL compatible strobes.  Rapid fire manual triggering is also available with the Nauticam Mini Flash Trigger .

HDMI 2.0 output

The NA-GH5SV housing is a version of the NA-GH5 housing that features the M28 bulkhead connection that supports HDMI 2.0 connections for use with the NA-NinjaV housing for the Atomos Ninja V recorder.  This allows for 4K 60p 10-bit 4:2:2 output and recording.  The standard NA-GH5 housing supports up to HDMI 1.4.

Matched with the integrated tripod mounting ball attachment points the NA-GH5 can be turned into a steady macro or time-lapse platform.

Technical specifications:

Depth Rating: 100m
Weight: 2.36kg
Dimensions: 331mm (W) × 184mm (H) × 110mm (D)
Port Opening: N85 for Olympus and Panasonic Micro Four Thirds

Including: Spare main o-ring, o-ring remover, CR-2450 battery (moisture alarm), lubricant, set of allen keys.

Manufacturers manual
