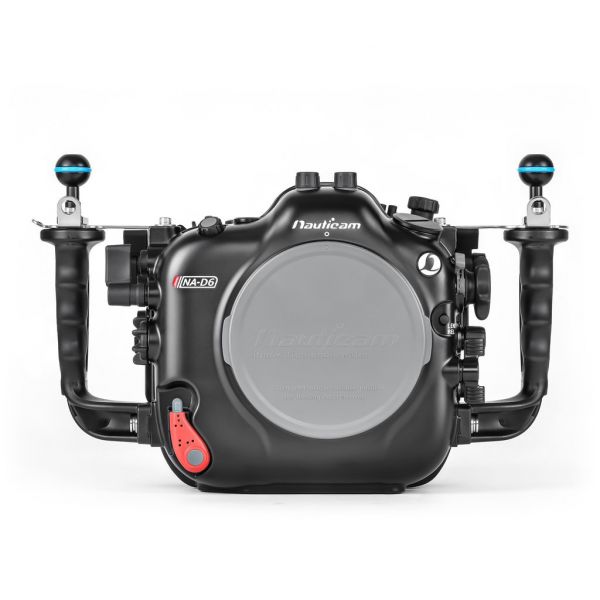

Nauticam NA-D6 Housing for Nikon D6

Nauticam's lineup of aluminum housings are designed with the user in mind offering easy assembly, proven durability, intuitive control placement and an extensive range of optics and accessories.  The NA-D6 is designed specifically for the Nikon D6 to take advantage of the camera's customizability and powerful autofocus features.

Mission control
The NA-D6 is designed with the Mission Control philosophy, placing the most used controls within easy reach from the ergonomic handles.  The NA-D6 features double thumb levers at the rear of the housing that trigger the AF-ON and REC buttons of the camera on the right side and PLAYBACK/INFO on the left.  Nested levers for ISO and the 'Pv' control are also located near the right handle for easy access.  A dual action lever for 'Fn1' and 'Fn2' customizable buttons a the front of the camera has been redesigned for enhanced usability over the NA-D5 version.

HDMI & ETHERNET
Connectivity to external monitors via HDMI or external controls over Ethernet are facilitated through the bulkheads of the NA-D6.  The housing has M28 and M14 bulkheads at the front and a rear M16.  Check the Resources section for compatible monitor and ethernet configurations.

Flash triggering
The NA-D6 ships with a pre-installed manual LED flash trigger which provides reliable flash triggering for the majority of optically triggered external underwater strobes.  A TTL version of the flash trigger (26308) is also available to provide automatic exposure control with compatible strobes.

Optics and accessories
The Nauticam N120 Port System supports a wide variety of Nikon F Mount lenses with both optical glass and acrylic port options.  The NA-D6 can also take advantage of Nauticam's water-contact optics such as the WACP-1, WACP-2 as well as the SMC-1 and SMC-2 which are designed to deliver the highest image quality possible underwater for both wide-angle and macro. Nauticam's magnifying viewfinders, available in both 45º and 180º versions allow for easier use of the D6's large bright optical viewfinder and can be installed in minuted without tools.

Technical specifications:

What's In The Box

• NA-D6 Housing
• 1x Manual LED flash trigger_ pre installed
• 90134 Spare main O-ring, O-ring remover and lubricant
• 2x Optical bulkhead caps
• 2x Handles with mounting balls
• Panasonic CR-2450 Battery (for moisture alarm)
• Set of Allen Keys
• Manual instruction card
• Padded housing bag and shoulder strap

HDMI Output

Required accessories for HDMI 2.0 Cable System

• 25089 M28 HDMI 2.0 Adapter
• 25091 M28C1R215-M28A1R170 HDMI 2.0 Cable (for NA-1DXIII to use with Ninja V housing)

Monitor housing

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 1 0-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
• 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

Required accessories for HDMI 1.4 Cable System

• 25033 Standard HDMI bulkhead with M16 thread*
• 25080 M28-M16 Step Down Adaptor
• 25036 HDMI (D-C) cable in 190mm length (for connection from HDMI bulkhead to camera)

*25033,25036 is included in monitor housing

Monitor housings:

• 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor
• 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2" 4K HDMI Monitor with HDMI 1.4 input

Ethernet Output for Remote Control

• 27101 Housing Lemo Bulkhead with Integrated Ethernet Cable in 220mm
• (includes M28 to M24 adapter)
• 27102 Nauticam Ethernet Surface Cable in 45 meter length
