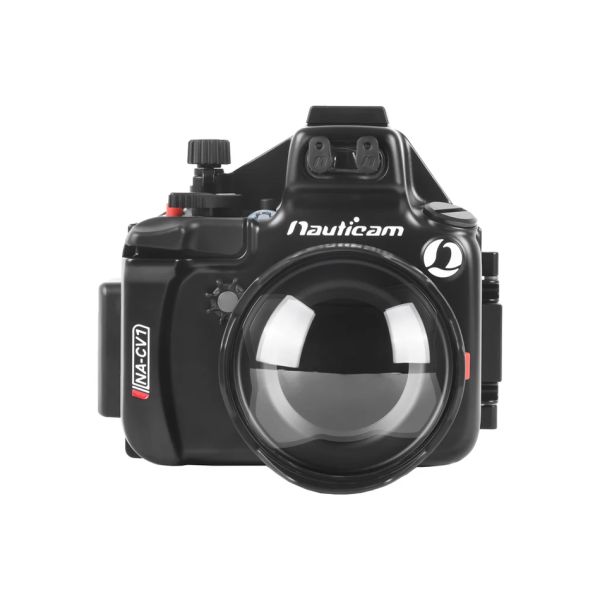

Nauticam NA-CV1 Underwater Housing for Canon PowerShot V1

Features of this NA-CV1 underwater housing:

• Compact and ergonomic housing design with rotary housing lock.
• Dedicated 3.5’’ acrylic dome port to support full zoom range 16-50mm (35mm equivalent).
• N50 exchangeable port system (for use with Wet lenses)
• Support all camera functions from the housing

NA-CV1 is the latest iteration in a lineup of advanced housings for very capable compact cameras supported by Nauticam. Many features found on professional DSLR systems have been integrated into this system, and the result is an underwater housing that allows the user to harness the full potential of this advanced compact camera in the water.

The basic functions and ergonomic enhancements that Nauticam users have grown to know and love are incorporated in NA-CV1. The housing is machined from a solid block of aluminum, then hard anodized to seal out corrosive salt water. It is closed via a simple, yet secure locking rotary latch. The right side of the housing is sculpted to fit the palm of the user’s hand, and Nauticam’s two-stage shutter release lever provides clear differentiation between the half press and full press shutter release positions. All functions are clearly labeled.

The Nauticam leak alarm and vacuum monitoring system is installed as standard equipment. This system provides an audible and visual alert to any water entry in the housing, and when combined with an optional accessory M16 Vacuum Valve II (25625) the watertight integrity of the system can be tested before ever entering the water and monitored during every dive.

Expert product design, modern manufacturing techniques, top quality materials backed by a two-year warranty, and a critical focus on the user experience combine to produce the premier system for Canon Powershot V1.

The N50 Port System

The NA-CV1 ships with the N50 3.5" Acrylic Dome Port that allows the full 16-50mm zoom range, but other ports are available from the N50 system.  When combined with the 38703 N50 Short Port 25, you can add on the 83203 WWL-C for a converted FOV of 130 degrees to 71 degrees.

Technical specifications:
Dimensions:  165mm(W) x 149mm(H) x 139mm(D)
Depth rating: 100m
Port mount:  N50
Weight in air: 1,2 kg
Accessory ports:  Front M16 x 1, M10 x 1 on top
Vacuum valve (optional): 25625 M16 vacuum valve II
HDMI Support: N/A

What’s in the box:
NA- CV1 Housing with N50 3.5’’ acrylic dome port
2x Plugs for Optical fiber cable mount,
Panasonic CR-2032 Battery (pre-installed for moisture alarm)
Spare main O-ring,
O-ring remover,
O-ring lubricant,
Set of Allen Keys
Set of handle brackets with shutter release trigger
Padded housing bag and shoulder strap
