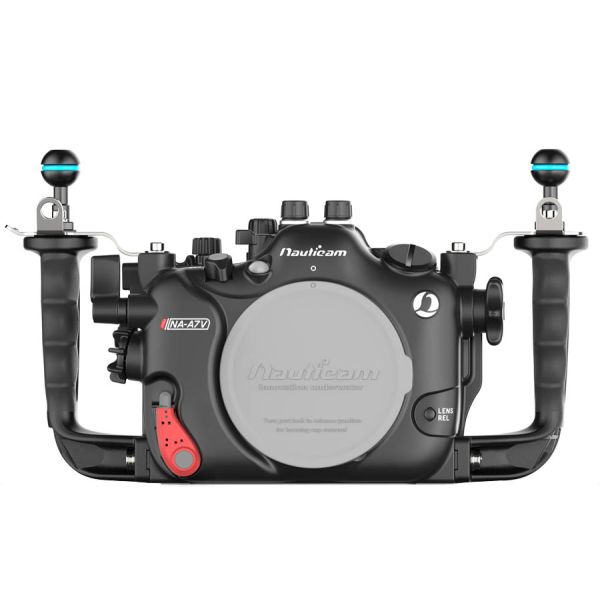

Nauticam NA-A7V Housing for Sony A7 V

The NA-A7V underwater housing provides fingertip access to all key camera controls in a rugged and reliable aluminum underwater housing. Ergonomic camera control access is one of the defining strengths of a Nauticam housing, and the NA-A7V continues this tradition. Essential camera parameter changes are made from the handles, without awkward reaches.

The NA-A7V housing inherits the core design elements from the Nauticam pro DSLR range, and bundles them in a more compact package. A patented port locking lever allows lens changes to be made in seconds. Opening the housing for quick battery and media changes is fast and easy with the locking housing latches. All aspects of the system are a seamless extension of the camera.

Premium professional optics
Nauticam’s professional water-contact optics deliver the highest underwater image quality. The FCP, WACP, and WWL lines enhance wide-angle, while the MFO and SMC offer exceptional macro and super macro capabilities. The EMWL allows you to shoot macro, wide-angle, or combine the styles for unique images.

Mission control
In true Nauticam fashion, essential controls are placed as close to the handles as possible, making these housings the most intuitive and user-friendly available. Our engineers strategically position controls where they’re needed most, rather than simply near the corresponding buttons on the camera. Dials feature rubberized finger grooves, and levers are designed for smooth operation.

Integrated vacuum check & leak detection electronics
The Nauticam vacuum check and leak detection system is shipped with NA-A7V as standard equipment. Combined with an accessory vacuum valve (PN 256254), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

Flash triggering
Flash triggering on the Sony A7V in the NA-A7V is available via either optical or electrical trigging.

Optical Triggering

- 26302 Mini flash trigger for Sony
- 26216 Universal Optical Fiber Cable

Electrical Triggering

- 26326 M24-M16 Adaptor for use with 26325
- 25056 M14 Nikonos 5-pin bulkhead with universal hotshoe connection

HDMI Output

Required accessories for HDMI 2.0 Cable System

    25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
    25094 M24A3R140-M28A1R170 HDMI 2.0 Cable (for NA-A7SIII to use with Ninja V housing)

Compatible Monitor Options

  17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
  17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

Required accessories for HDMI 1.4 Cable System

    25033 Standard HDMI bulkhead with M16 thread
    26326 M24-M16 Adaptor for use with 26325 *instead of existing 25081
    25095 HDMI (D-A) 1.4 Cable in 170mm Length (for connection from HDMI bulkhead to camera)

Compatible Monitor Options

    16612 Nauticam 7'' T7  UW ULTRAHD Monitor  (HDMI 1.4 input, excl. cables) 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads) *25047 is Required with 16612
    17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input *17927 includes 25033,25038,25100
    17922 Nauticam Atomos Ninja V Housing for Atomos Ninja 5 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
    25082 HDMI 1.4 Cable for Ninja V housing in 0.75m Length (for connection from Ninja V housing to HDMI bulkhead)

*25082 is Required for use with 17922 monitor.

Specifications of the Nauticam NA-A7V

Dimensions: 340 x 170 x 127mm
Weight (in air): 2,7kg
Buoyancy: Positive, 0,2kg (incl. camera & battery)
Depth rating: 100m
Port mount: N100

The A7V underwater housing comes with:

-90120 Main Housing O-Ring
-N100 Port Cap
-2x Optical Bulkhead Caps
-2x Handle with mounting ball
-2x handle bracket
-Pre-installed Leak Detection & Moisture Alarm with CR-2032 Battery
-Spare Main Houising O-ring
-O-ring remover
-Nauticam Lubricant
-Set of Allen Keys
-Padded Housing Bag and Shoulder Strap
