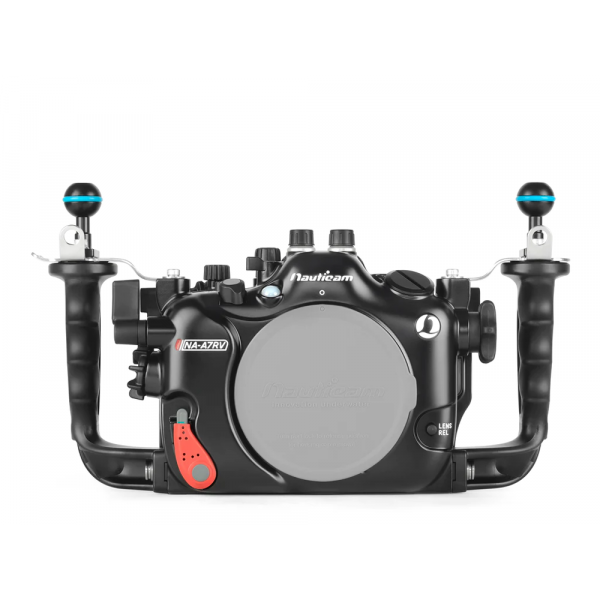

Nauticam NA-A7RV underwater housing for Sony A7 RV

The NA-A7RV underwater housing provides fingertip access to all key camera controls in a rugged and reliable aluminum underwater housing. Ergonomic camera control access is one of the defining strengths of a Nauticam housing, and the NA-A7RV continues this tradition. Essential camera parameter changes are made from the handles, without awkward reaches.

The NA-A7RV housing inherits the core design elements from the Nauticam pro DSLR range, and bundles them in a more compact package. A patented port locking lever allows lens changes to be made in seconds. Opening the housing for quick battery and media changes is fast and easy with the locking housing latches. All aspects of the system are a seamless extension of the camera.

MISSION CONTROL
Never miss a shot looking for a button or dial. Regardless of where the control may be found on the camera, Nauticam engineers have placed that control on the housing where it is needed most. Essential dials and buttons are within easy reach of the reinforced ergonomic handles. Atop the housing, a dedicated lever allows quick switching between Still, Movie and S&Q (VFR Video) modes. A dual thumb lever near the right handle actuates the REC and AF-ON buttons and a single lever near the left handle is for PLAYBACK.

CAMERA COMPATIBILITY
The NA-A7RV housing is compatible with both the Sony a7R V and the Sony a7 IV. To use the Sony a7 IV, the 17433UK Conversion Kit is required.

HDMI 2.0
A large bore M24 bulkhead is located at the front of the housing for use with HDMI 2.0 or HDMI 1.4 (with a step-down adapter to M16) external monitors and recorders. An additional M10 threaded mounting position near the front center of the housing also makes using an external monitor even easier. The a7R V can output 16-bit RAW video output to external recorders at up to 4K 60p.

PREMIUM PROFESSIONAL OPTICS
Built around the N100 Port System for Sony E-Mount, the NA-A7RV can support a wide variety of native lenses with a selection of Optical Glass and Acrylic ports. When used with an E-Mount to EF-mount lens adapter and an N100 to N120 adapter (see Resources sidebar for supported adapters), the NA-A7RV can be used with the Canon N120 EF-Mount port system, expanding the capabilities of the system even further. Going beyond conventional optics the NA-A7RV can leverage the unparalleled optical quality of Nauticam's Water Contact optics such as the WACP-1 or WWL-1B which offers up to 130º field-of-view, full zoom through, an almost 0" minimum focus distance with supported lenses. For macro, the SMC-1 and SMC-2 deliver tack-sharp super-macro magnification levels up to 4x with the Sony 90mm macro lens.

VACUUM CHECK AND LEAK DETECTION
The housing comes with electronics pre-installed for Nauticam's Vacuum Check and Leak Detection system, requiring only the optional M14 Vacuum Valve (25624). This monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

STROBE TRIGGERING
Triggering of external strobes is accomplished via the integrated fiber-optic bulkheads when using the optional Mini Flash Trigger for Sony (26302). Electronic triggering is also available via an optional Nikonos or Ikelite Style Bulkhead.

Specifications:
Dimensions: 340mm(W)x 170mm(H) x 127m(D)
Weight in air: 2.7kg
Weight in water: 0.3kg incl. camera and battery
Depth Rating: 100m
Compatible Cameras: Sony α7R V camera, α7R IV with Conversion Kit
Port System: N100 Port System for Sony E-Mount Camera System

HDMI OUTPUT

Required accessories for HDMI 2.0 Cable System

25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
25094 M24A3R140-M28A1R170 HDMI 2.0 Cable (for NA-A7SIII/ A7V to use with Ninja V housing)
Monitor housing

17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

Required accessories for HDMI 1.4 Cable System

25033 standard HDMI bulkhead with M16 thread
25081 M24-M16 Step Down Adaptor
25095 HDMI (D-A) 1.4 Cable in 170mm Length (for connection from HDMI bulkhead to camera)
*25033 included in 502B-H/Shinobi-H/503-H monitor housing

Monitor Options

17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2" 4K HDMI Monitor with HDMI 1.4 input
17925 NA-503-H Housing for SmallHD 503 UltraBright On-Camera Monitor

Compatible N100-N120 Adapters

37305 N100 to N120 35.5mm Port Adaptor II
37306 N100 to N120 25mm Port Adaptor

What's In The Box:

• NA-A7RV Housing
• 90120 Spare main O-ring, O-ring remover and lubricant
• 2x Handles with mounting balls
• Panasonic CR-2032 Battery (for moisture alarm and vacuum detector)
• Set of Allen Keys
• Manual instruction card
• Padded housing bag and shoulder strap
