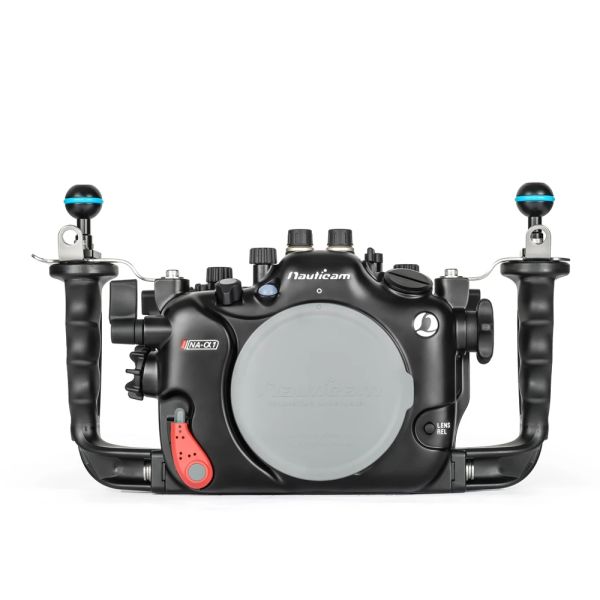

Nauticam NA-A1 underwater housing for Sony Alpha1 [17430]

Nauticam has supported the Sony Alpha full-frame line since the original a7 with professional grade aluminum housings that offer intuitive access to all the controls and functions of the cameras. As the cameras have evolved, so have the Nauticam housings. The NA-α1 underwater housing provides fingertip access to all key camera controls in a rugged and reliable aluminum underwater housing. Ergonomic camera control access is one of the defining strengths of a Nauticam housing, and the NA-α1 continues this tradition.

Integrated DSLR-housing styled handles with ergonomic rubberized grips and stainless steel stiffening brackets add stability and accessory mounting points. The NA-a1 also features dual rear thumb-levers that are easily reached from the handle that access three of the most-used controls on the rear of the camera. The right lever actuates the AF-ON and RECORD buttons while the left lever is mapped to the PLAY button.

Atop the housing on the left side are controls in the form of a MODE dial and FOCUS mode lever. The C1, C2 buttons as well as the EV compensation dial also have direct access from the top of the housing. The C3, which is typically assigned to control switching between the EVF and the LCD screen is easily reachable on the rear of the housing from the left handle.

Accessory ports
The NA-α1 has both an M24 port at the front of the housing for both HDMI 1.4 and HDMI 2.0 connectivity (see sidebar for recommendations) as well as an M14 at the rear for the optional Vacuum Valve (25624).

The housing comes with electronics pre-installed for Nauticam's Vacuum Check and Leak Detection system. This monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

Premium professional optics
Nauticam's wide range of ports and in-house corrective optics are the perfect compliment to the NA-α1's inherent flexibility. Built around the N100 Port System, the NA-α1 supports a wide variety of Sony FE mount lenses, as well as EF mount lenses via adapters. In addition, there are several options available to use the groundbreaking WACP and WACP-2 wide-angle corrective lenses as well as the more compact and in-water removable WWL-1B.

For example, With the Sony SEL1635GM FE 16-35mm F2.8 GM, the WACP 2 brings the original 105º field-of-view to an impressive 128º with sharper corners, an ~0" minimum focus distance and a more natural looking image than would be provided by a standard glass dome port.

Flash triggering
Both fiber-optic and electrical strobe triggering options are available. The Nauticam Universal Fiber Optical cables attach to the built-in bulkheads atop the housing and feature modular connections for both Sea&Sea-style bushings and INON threaded connections. Triggering is achieved using the optional Nauticam Mini Flash Trigger for Sony (26302) which uses LEDs powered by an on-board coin-cell battery to generate a manual signal that is transmitter via the optical cables to compatible strobes.

HDMI Output Accessories

For HDMI 2.0

• 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
• 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-α1 to use with Ninja V housing)

Monitor housing:

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable
• 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

For HDMI 1.4

• 25081 M24-M16 Step Down Adaptor
• 25100 HDMI (D-A) cable in 190mm length for NA-a1 (for connection from HDMI bulkhead to camera)
• 25033 standard HDMI bulkhead with M16 thread

Monitor housing:

• 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor
• 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2" 4K HDMI Monitor with HDMI 1.4 input



Technical specifications:

Depth Rating: 100m
Weight in air: 2.7kg
Weight in water: 0.6kg includes camera and battery
Dimensions: 340mm (W) × 169mm (H) × 125mm (D)
Port Opening: N100

What's In The Box:

• NA-α1 Housing
• 90120 Spare main O-ring, O-ring remover and lubricant
• 2x Optical bulkhead caps
• 2x Handles with mounting balls
• Panasonic CR-2032 Battery (for moisture alarm)
• Set of Allen Keys
• Padded housing bag and shoulder strap
