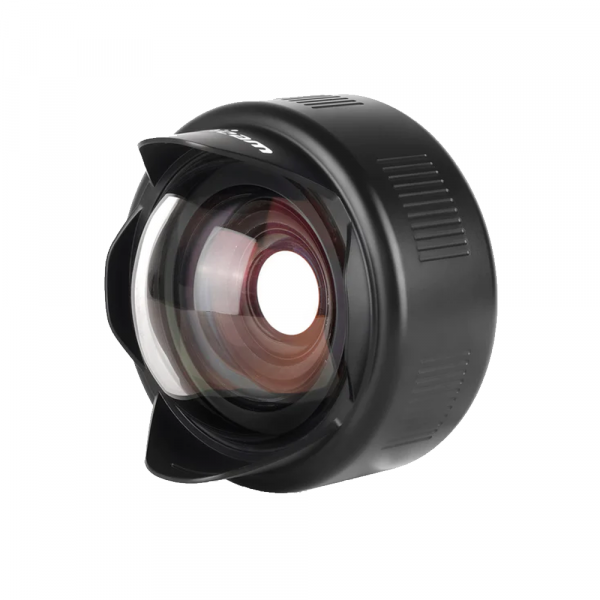

Nauticam N100 0.36x Wide Angle Conversion Port Compact WACPC

The WACP-1 and WACP-2 have raised the bar on what is possible in underwater optics. They offer the maximum in image quality with the widest angle of view available in a rectilinear lens.  Nauticam is now excited to release the next iteration of WACP, the WACP-C.  The Wide Angle Conversion Port Compact (WACP-C) is a fraction of the weight and size when compared to the WACP-1 and WACP-2.  When looking at volume, the WACP-C is approximately 37% smaller than WACP-1 and 75% smaller than WACP-2.

Like the WACP-1 and WACP-2, the WACP-C is a dry mount lens design, functioning as both a port and optical lens. It is optimized to work with professional camera lenses up to a full-frame equivalent focal length of 28mm and offers an amazing 130° angle of view.  The WACP-C can focus as close as the front element and captures images with minimal distortion.

A wide variety of lenses are supported, both primes and zooms for a variety of cameras. Please check the WACP-C PORT CHART for supported lenses and suggested configurations as some lenses will require extension rings or adapters.

Technical specifications:
Depth Rating: 100m
Outer Diameter x Length: DIA 170mm x 145.5mm
Weight (in air): 2.24 kg
Buoyancy (in water): Negative 0.1 kg
Body Construction: Hard-anodized Aluminum Alloy
Lens Construction: 6 Elements in 5 Groups
Lens Coating: Anti-reflective on both sides
Port Mount: N100
Depth Rating: 100m
Focus Range: Front element to infinity
