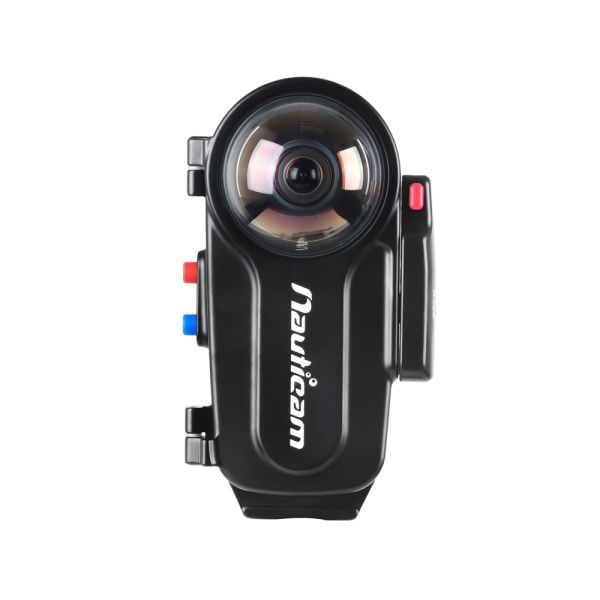

Nauticam Housing for Insta360 X5

Take your underwater footage to the next level with the Nauticam Housing for the Insta360 X5. Precision-engineered for divers and content creators who demand uncompromising reliability, this premium aluminum housing delivers outstanding protection, intuitive operation, and exceptional image quality— even in the most extreme underwater environments.

The rugged hard-anodized aluminum construction ensures durability and corrosion resistance, with a tested depth rating of 100 meters. Nauticam’s renowned craftsmanship allows you to retain full camera functionality while diving with confidence.

Clearly marked color-coded push buttons provide intuitive control: red for the Power button and blue for the Quick button. Once the rear door is closed, the camera automatically switches to Dive Mode, allowing you to focus entirely on capturing the moment.

For optimal underwater performance, the original outer lenses of the Insta360 X5 must be removed and replaced by the housing’s precision optical system. Each lens features a 190° angle of view and an anti-reflection coating, ensuring sharp, high-contrast images with minimal glare.

Multiple mounting points make the housing fully expandable with float arms, handles, strobes, and accessories—ideal for both recreational and professional underwater videography.

Specifications Nauticam X5 housing

-Dimensions: 91.4 mm (W) × 156.7 mm (H) × 88.5 mm (D)
-Weight: in air: 630 g
-Buoyancy in water: –350 g (including camera with battery)
-Construction: Housing material: Hard-anodized aluminum alloy
-Lens coating: Anti-reflection coating
-Lens construction (each lens): 3 elements in 2 groups
-Angle of view (each lens): 190°
-Working distance: 0 ~ infinity
-Depth Rating: Rated to 100 m
-Mounting Points:   1× 1/4”-20 threaded hole  &   2× M5 threaded holes
-Compatible Camera: Insta360 X5
-Main Features: All-metal housing with rotary housing lock
-Color-coded push buttons for intuitive operation
-Automatic activation of Dive Mode when the housing is closed
-Original Insta360 X5 outer lenses must be removed (tool included)
-Professional-grade sealing with high-quality O-ring

What’s in the Box

Nauticam Housing for Insta360 X5
Spare main O-ring
O-ring remover and lubricant
Lens removal tool and plastic suction cup
Neoprene protective bag
Cleaning cloth
