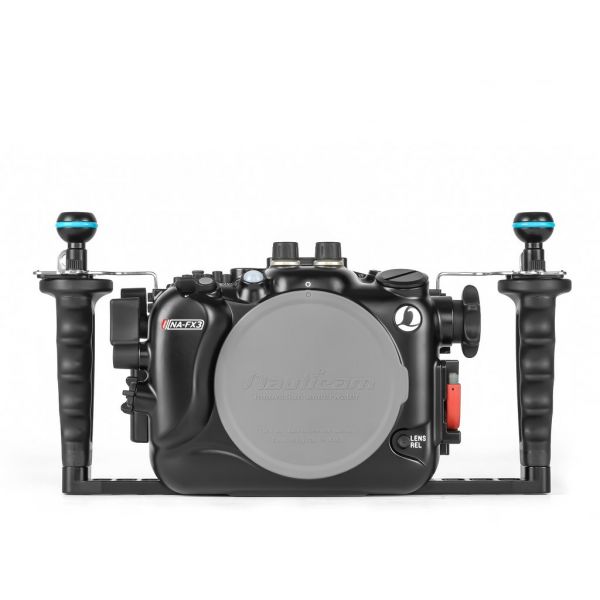

Nauticam FX3 Housing for Sony FX3/FX30 Full-frame Cinema camera

The NA-FX3 is built around the N100 port system that is shared by all full-frame Sony mirrorless systems in the Nauticam lineup, allowing seamless crossover for existing Sony shooters.

Mission control
The NA-FX3 is designed with our Mission Control philosophy, placing controls where they can be easily accessed with minimal movement.  Within easy reach of the right handle are control dials for Iris, ISO and Shutter Speed.  There is also a dedicated REC button and FOCUS MAG lever.  Stainless steel stabilizing brackets insure the handles remain steady even when using large video lights or other accessories.

Connectivity
The NA-FX3 features a an M24 bulkhead which supports the Nauticam HDMI 2.0/1.4 cable system which can be paired with supported external monitors/recorders.  In addition there is an M16 bulkhead which is dedicated for remote control capability using the Sony RM-VPR1 controller (proprietary waterproof cable is required).  On the rear cover there is also an M14 bulkhead which can be fitted with the optional M14 Vacuum Valve II (25624).  The NA-FX3 comes with the Nauticam vacuum check and leak detection system as standard equipment. This monitoring system, when paired with the optional vacuum valve, provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

Premium professional optics
Optical performance is just as necessary as camera performance and this becomes even more critical given the challenges of filming underwater. The Nauticam NA-FX3 uses the same N100 Port System as other Sony full-frame mirrorless housings which makes for a seamless transition for those upgrading or looking to add an additional camera to their lineup. While this system provides exceptional optical-glass and flat port solutions for a wide variety lenses, the real power can be realized using Nauticam's Water Contact Optics. This lineup of dry and wet lenses are conceived using commercial lens-design software to achieve truly unparalleled underwater image quality both for stills and video in both macro and wide-angle situations. The WACP-1 and WACP-2 achieve ultra-wide 130º fields-of-view with reduced distortion over conventional optics while featuring ~0" minimum focus distances, zoom through capabilities and unbeatable corner sharpness at even wide-open apertures such as F5.6.

What's In The Box

• NA-FX3 Housing
• 90139 Spare main O-ring, O-ring remover and lubricant
•  2x Handles with mounting balls
• Panasonic CR-2032 Battery
• Set of Allen Keys
• Manual instruction card
• Padded housing bag and shoulder strap

Recommended Accessories

HDMI Output Options

Required accessories for HDMI 2.0 Cable System

• 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
• 25703 M24A2R225-M28A1R170 HDMI 2.0 Cable (for NA-FX3 to use with Ninja V housing)

Monitor housing:

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
• 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

Required accessories for HDMI 1.4 Cable System

• 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1 (for connection from HDMI bulkhead to camera)
• 25081 M24-M16 Step Down Adaptor,
• 25033 Standard HDMI bulkhead with M16 thread
• M16 spacer (H=10mm)

*25033 and M16 Spacer are included in monitor housings 17920 or 17923

Monitor housings:

• 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor
• 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2" 4K HDMI Monitor with HDMI 1.4 input
