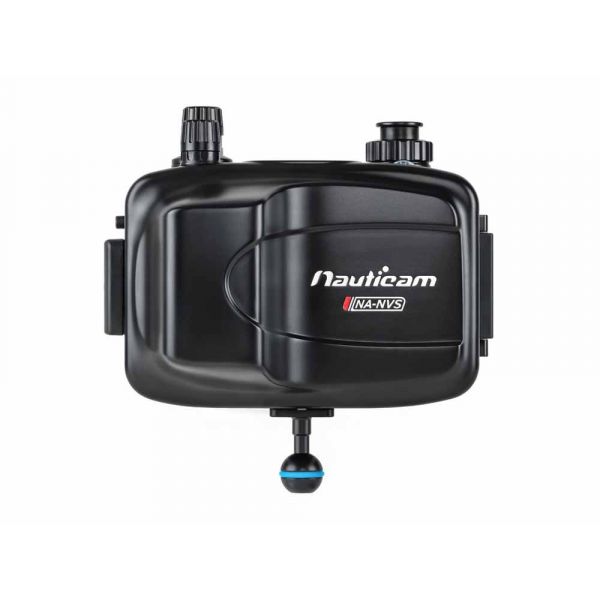

Nauticam Atomos Ninja V-S Housing for Atomos Ninja V + SDI

The Nauticam NA-Ninja V-S builds on the strong foundation Nauticam has built with previous Atomos monitor/recorder housings but is built around the new M28 large-bore bulkhead. The M28 on the 'S' housing supports both HDMI 2.0 and SDI via the AtomX SDI Module. The module allows for an SDI connection to the monitor or for providing HDMI-SDI cross conversion.

Setup
The Ninja V is easily mounted in the housing, dropping in without trays or other mounting accessories and is held in place by two rotating locking levers. The Ninja V with the AtomX SDI Module features both HDMI 2.0 and SDI inputs as well as an HDMI or SDI output and the NA-Ninja V-S supports both. With dual M28 bulkheads, a second HDMI or SDI cable can be run to another monitor. The Ninja V allows for the application of. cube format 3D LUTs to this output signal.

Battery and vacuum system
The NA-Ninja V-S supports up to the NP-F970 size battery which provides up to two hours of run time. A CR-2032 battery powers the vacuum check and leak detection system. When used with the included Vacuum Valve, the system gives real-time feedback about the watertight integrity of the housing through an easily visible multi-color LED on the top of the housing.

Control access
Access to the touchscreen controls of the Ninja V are handled via a series of buttons and a selector knob beneath the screen of the housing including PLAY, REC, MON, RGB, PEAK and the Muti-Selector Lever.

Technical specifications:

NOTE: HDMI and SDI cables for this housing are SOLD SEPARATELY, you can find the appropriate one in the 'Related Products' section below.

Only AtomX SSDmini drives are supported in the housing. Conventional SSD in the Atomos Master Caddy are not compatible.

What's In The Box:

• NA-Ninja V-S Housing
• Monitor Hood
• M16 Vacuum Valve (pre-installed) PN 25625
• SDI Bulkhead
• Internal SDI Cable
• Spare silicone rubber main o-ring PN 90137
• O-ring removal tool and lubricant
• CR2032 battery

Recommended Accessories:

• 25077 HDMI 2.0 Cable for NA-XT3 Housing
• 25078 HDMI 2.0 Cable for NA-BMPCCII/S1R Housing
• 25079 HDMI 2.0 Cable for NA-GH5V Housing
• 25082 HDMI 1.4 Cable for HDMI Bulkhead
