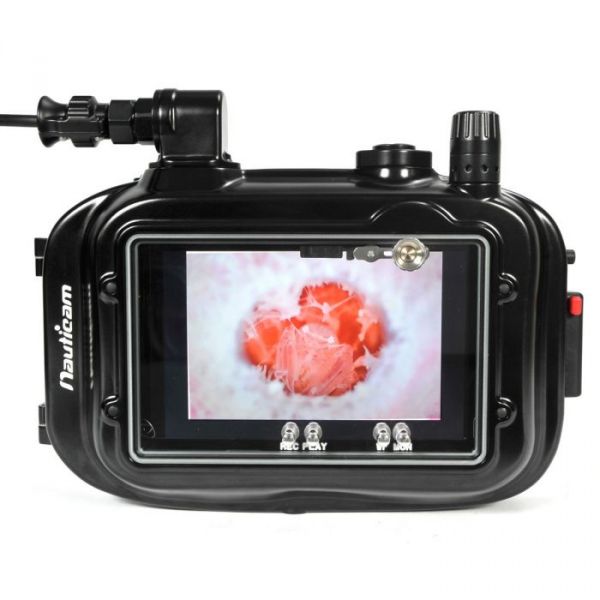

Nauticam Atomos Flame Housing (with HDMI 2 input) [17909N)

Nauticam Atomos Flame Housing for Shogun and Ninja Flame/Inferno 7'' 10-bit 4K/HD SDI/HDMI Recorder/Monitor/Player is designed from the ground up to help maximize underwater video capture.

The housing comes in three variants, one for HDMI 1.4 (17909), one for SDI (17910) and one for HDMI 2.0 (17909N).  The HDMI 2.0 version features the new M28 large-bore bulkhead connection to support the new pass-through HDMI 2.0 connection available on supported camera housings.

All versions are equipped with a second M16 bulkhead to support an SDI output (Shogun Inferno only) to either a surface monitor or a second housed monitor.

The housing can be attached in several orientations with the optional mounting hardware listed in the Resources section in the sidebar.

An optional monitor hood is also available to aid in bright ambient light viewing.

OPTIONAL ITEMS:

HDMI 2.0 input

25077 M24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-XT3 to use with Ninja V housing)
25078 M28A1R225-M28A1R170 HDMI 2.0 Cable (for NA-BMPCCII/S1R to use with Ninja V housing)
25079 M28A2R210-M28A1R170 HDMI 2.0 Cable (for NA-GH5V to use with Ninja V housing)
25084 M24D1R270-M28A1R170 HDMI 2.0 Cable (for NA-EM1X to use with Ninja V housing)
25085 M28C1R200-M28A1R170 HDMI 2.0 Cable (for NA-Z7V to use with Ninja V housing)

Optional Mounting Hardware

17951 Nauticam Atomos Shogun/Flame housing mounting system
17952 Nauticam Atomos Shogun/Flame housing mounting adaptor for NA-A7/A7II
17953 Nauticam Atomos Shogun/Flame housing mounting adaptor for NA-GH4/GH5
17954 Tripod plate for NA-A7/A7II/GH4/GH5
17955 Mounting Ball for Nauticam Atomos Shogun/Flame Housing
16226 Mounting Brackets for Nauticam Atomos Shogun/Flame Housing on Epic LT/Weapon LT Housing

What's In the Box

• 17909,N Housing with M16 Vacuum valve pre-installed.
• Housing O-ring, lubricant and removal tool
• CR2032 Battery (for vacuum system)
• Padded Travel Case

Technical specifications

Dimensions 289mm(W) x 177mm (H) and 105mm(D)
Weight in Air 2.24kg
Weight in Water -0.52kg (incl. monitor, 2x5200 and 1x2600 mAh batts)
Depth Rating 60m
