Nauticam 7'' G7 ULTRAHD Underwater Monitor HDMI/SDI

Name: Nauticam 7'' G7 ULTRAHD Underwater Monitor HDMI/SDI
Brand: Nauticam
SKU: NA16611
Price: 4700 EUR
Availability: InStock

NAUTICAM

Be the first to review this product

Special Price €4,700.00 €3,884.30 Regular Price €5,196.00

Backorder. Ready for shipment in 1 to 2 weeks

SKU

NA16611

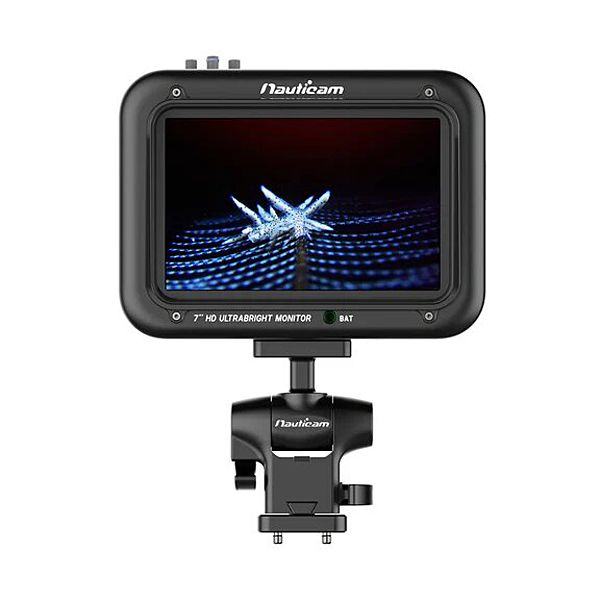

Introducing the Nauticam 7" T7 HD UltraBright HDMI monitor (with also SDI input and SDI output) for under water usage. SDI is required when monitoring is required at a greater distance (above water, for example).

Safe & easy ordering - Webshop Trustmark certified
Fast and reliable worldwide shipping with DHL, UPS or PostNL
Authorised service center for Nauticam, INON....

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

7" T7 HD UltraBright HDMI monitor (with also SDI input and SDI output) for under water usage. This avanced monitor delivers an incredibly bright 3000 nit display, ensuring optimal visibility even in challenging lighting conditions. With up to 6 hours of battery life, you can count on it for extended shoots, providing consistent, reliable performance throughout your dive. Equipped with essential tools such as Focus Peaking, False Color, Histogram and many more, the Nauticam 7" G7 HD UltraBright Monitor offers you the ultimate monitoring tool for any project.

Technical Specifications

Dimensions	204mm(W) x 150mm(H) x 67mm(D)
Brightness	3000nit
Resolution	1920 x 1200
Input Signal Formats	4K30 with HDMI input 2KP60 with SDI input
HDMI/SDI Support	HDMI in, SDI in & SDI out *1
Recommended Batteries (not included)	4x Nitecore NL2160/2160HP 6000mah or 4x NL2153/2153HP 5300mah batteries
Recommended Battery Charger (not included)	Nitecore UMS4 Intelligent USB Four-Slot Superb Battery Charger
Run time	Up to 6h at default backlight level 5 (with 4x new NL2160HP 6000mah batteries) *2
Included accessories	Monitor Hood, Swivel and Tilt Adjustable Monitor Mount System
Weight in Air	2.5kg (incl. Swivel and Tilt Adjustable Monitor Mount System)
Buoyancy in Water	Negative 0.83kg (incl. Swivel and Tilt Adjustable Monitor Mount System)
Depth Rating	100m

*1. Doesn’t support HDMI in and converted to SDI Out for cross conversion.
*2. Please make sure the 4 protected batteries are full charged before use.

Required Accessories to use with HDMI 1.4 input:

25033 Standard HDMI bulkhead with M16 thread
25081 M24-M16 Step Down Adaptor may be required for a certain camera
25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1/FX3/GH6 (for connection from HDMI bulkhead to camera)
25047 HDMI (D-D) 1.4 cable in 800mm length (for connection between HDMI bulkheads)

Required Accessories to use with SDI input:

25058 M16 SDI Bulkhead
25060 SDI cable in 0.4m length (for connection from camera to underside of SDI Bulkhead)
25061 SDI cable in 0.75m length (for connection between SDI Bulkheads)

Required Accessories to use with SDI out

25064 SDI surface monitor cable in 15m length (for connection from SDI Bulkhead to Surface Monitor on land)
25065 SDI surface monitor cable in 45m length (for connection from SDI Bulkhead to Surface Monitor on land)

What’s In The Box:

16611 Nauticam 7'' G7 HD UltraBright Monitor
Monitor Hood
Swivel and Tilt Adjustable Monitor Mount System (attached to camera/Cine Housing with 2x ¼’’-20 UNC screws)
Spare O-ring for battery door, O-ring remover and lubricant
Padded Travel Case
