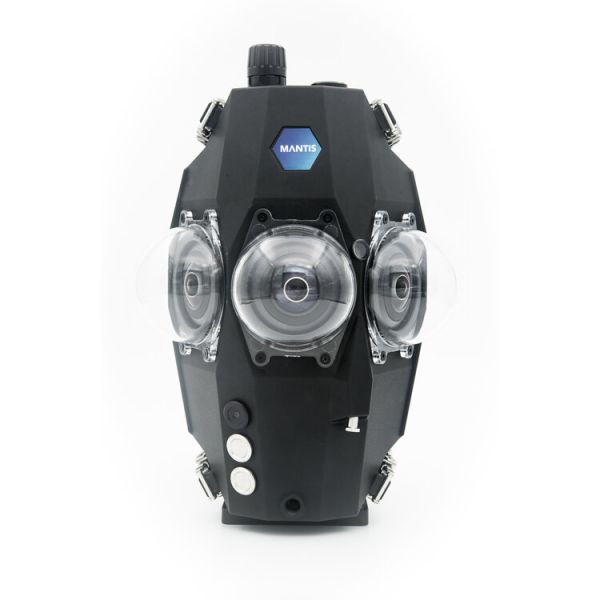

Mantis Sub Housing for Insta360 Pro and Pro2

The Mantis Sub housing is manufactured in lightweight aluminium and it has a depth rating of 90 meters. It features clean zenith and nadir for perfect 360 view, ports for hydrophones, ethernet live-streaming and mounting points for rigging and lighting.

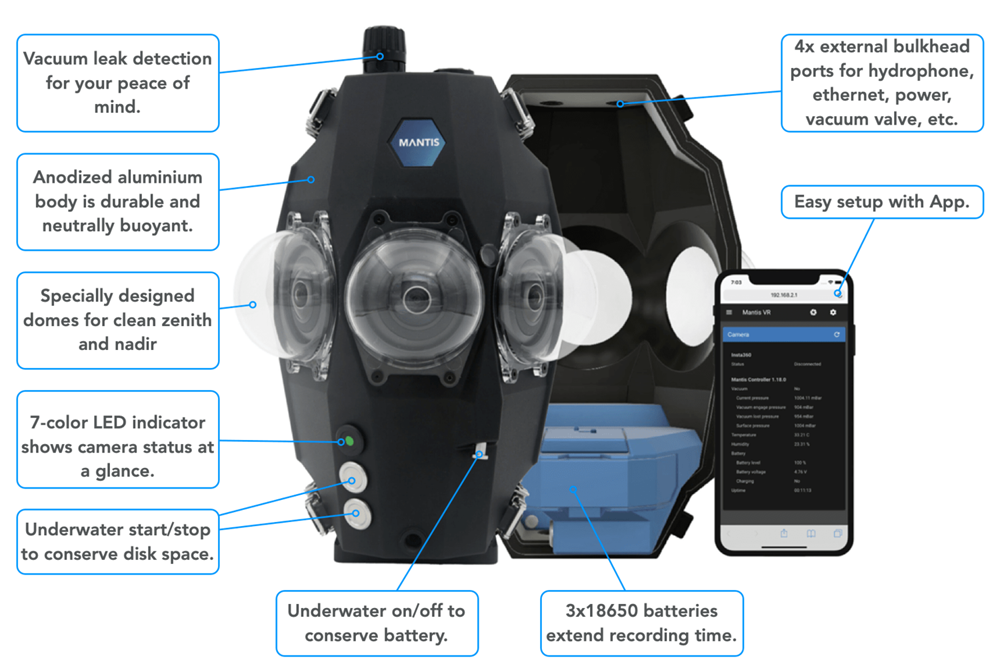

The Mantis is a 'smart' housing, with an on-board processor and controller to trigger record and stop functions, change recording states, and monitor temperature and vacuum status. A 7-colour LED indicator allows the operator to see the camera state at a glance. Camera settings and a detailed log of the unit’s vitals are accessible wirelessly via an app. On board lithium-ion batteries extend the recording time of the camera. The Mantis is live-streaming-capable and ROV-ready with a detailed integration guide.

FEATURES
Clean nadir and zenith—full 3D/360 view, no black discs/occlusions
10mm port for observing Insta360 display
Wifi for control, setup (surface), web interface to controller for remote control and log files
Underwater on/off, start/stop
Support for hydrophone in top bulkhead (M14 or M16)
Support for Ethernet and HDMI connection through bottom M16 bulkhead for live-streaming / remote control
Battery pack to extend runtime of Insta360 Pro
Vacuum valve installed as standard

SPECIFICATIONS
Supported camera: Insta 360 Pro/Pro 2 (not included)
Material: Anodised aluminium
Colour: Black
Safe depth rating: 90m / 300ft
Buoyancy: 300g/10oz positive in saltwater, 200g/7oz positive in freshwater
Dimensions (with domes): 250mm high, 218mm wide, 198mm depth
Dimensions (without domes): 250mm high, 162mm wide, 144mm deep
Weight: 2.2kg without camera or batteries, 3.7kg with camera, batteries
External controls: Power on/off, record, stop, switch controller
Batteries: 3x 18650 (to power electronics and increase camera battery capacity: not included)
Run time: 12 hours standby, 90 minutes continuous recording

BULKHEADS
Top: 2x M14, 1x M16
Bottom: 1x M16

MOUNTING POINTS
Top: 15x 1/4-20 UNC, 9mm spacing
Bottom: 16x 1/4-20 UNC, 9mm spacing
Front: 1x 3/8-16 UNC
Back: 1x 3/8-16 UNC

INCLUDED

6x domes, mounted
1x 2mm hex key for domes
1x O-ring kit
1x O-ring grease
2x Anodes, installed
1x Nauticam M14 Vacuum Valve II (push-button release) installed as standard
1x M14 port plug, installed
2x M16 port plug, installed
1x Camera tray with battery shuttle and Mantis electronics
1x Pelican Storm IM2275 case (suitable as carry-on cabin baggage), with custom foam
2x 2dBi SMA stub antennas (replace Insta360 standard to fit inside housing)
1x Ethernet cable
