Isotta underwater housing for OM SYSTEM OM-5 Mark II

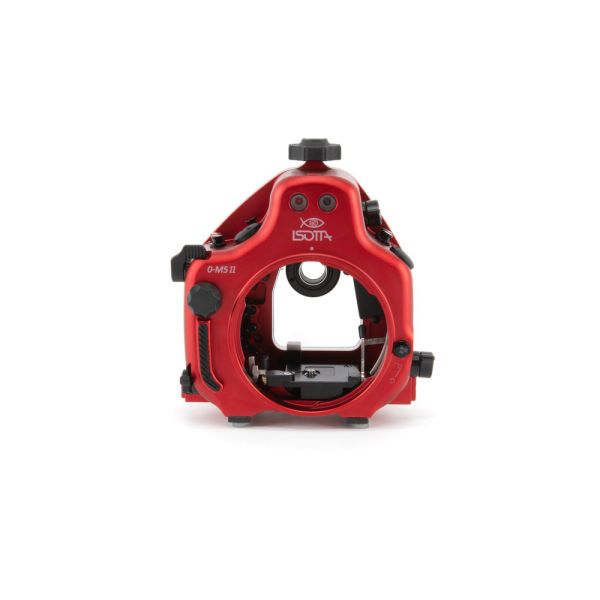

The Isotta underwater housing for OM SYSTEM OM-5 Mark II is an anodised aluminium housing for underwater photography and video with the OM-5 Mark II camera. It has a maximum working depth of 100 m, a removable B102 port bayonet and two M16 accessory openings. The housing can be ordered without additional options or configured with a vacuum system, Nikonos 5 bulkhead or S6 bulkhead. Side handles are not included.

Key features

• Red anodised aluminium housing body
• Maximum working depth of 100 m
• Fully detachable rear housing section
• Camera tray with locking mechanism for camera insertion
• Single-hand closing knob for the rear housing
• Aluminium buttons and dials with engraved symbols matching the camera controls
• Wide rear display viewing glass
• Standard Isotta viewfinder
• Double O-ring seals on buttons and removable parts
• Moisture sensor with LED indicator and replaceable battery
• Removable B102 port bayonet with safety lock
• Wide rubber-covered feet for stable positioning

Connections and mounting options

Two fibre-optic connections are fitted as standard. An optional trigger is required to use a flash through these connections. Two M16 openings support accessories such as a vacuum system, monitor connection, Nikonos 5 bulkhead or S6 bulkhead.

An M8 mounting point on top can be used for accessories such as a focus light. Two M6 mounting points on the bottom support accessories such as strobe brackets or tripods. Isotta external viewfinders and INON X-2 viewfinders are compatible.

Configuration options

The housing is available with no additional configuration, an Isotta vacuum system, one Nikonos 5 bulkhead or one S6 bulkhead. These selectable options use the accessory provisions of the housing. Handles, handle extensions, right or angled Isotta viewfinders and an upper SMALL tray are optional accessories. See related items below.

Camera controls

• ON/OFF lever
• Focusing and shutter lever
• Lens release button
• Front dial
• Mode dial and mode dial lock button
• Movie REC lever
• ISO button
• Rear dial
• INFO button
• Playback button
• Menu button
• Sequential shooting/self-timer button
• Live View button
• Preview button
• OK button
• Arrow pad buttons
• Erase button
• AEL/AFL/Key button
• Fn lever
• Port safety lever

Specifications

What's in the box

• Housing
• Front lid
• Standard Isotta viewfinder
• Moisture sensor
• Fibre-optic connection bulkhead
• Replacement O-ring kit
• 15 g silicone lubricant

Handles are not included. An optional trigger is required for flash operation through the fibre-optic connection.
