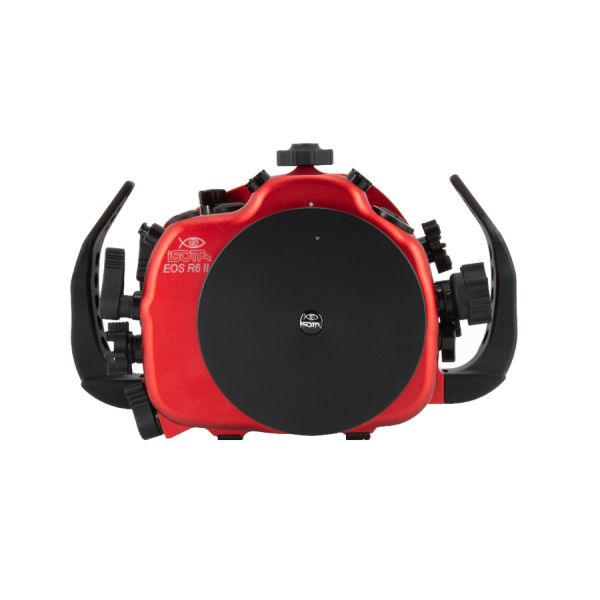

Isotta Underwater Housing for Canon EOS R6II

This product combines professionalism and ease of use, created through techniques and innovations developed over years of experience. The Canon R6 Mark II housing has been designed on the camera. The ergonomic and adjustable handles fit perfectly in the hand, offering a comfortable grip and ensuring optimal comfort even during long underwater photography sessions. Access to the main camera controls is simplified by laser-engraved buttons that faithfully reproduce the symbols of the camera, spaced apart from each other ensuring excellent usability even with gloves. The mounting plate allows for quick and easy insertion of the camera into the housing, while the locking lever ensures stability. The rear base is equipped with a large scratch-resistant methacrylate window and an optical viewfinder, ensuring optimal visibility of the camera's display and viewfinder. This section is completely separate from the front body to facilitate insertion. In addition, it is possible to mount external magnifiers compatible with INON X-2.

Commands that can be used underwater:

• ON/OFF lever of the Canon R6 Mark II;
• Ergonomic camera focusing and shutter lever, easy to use with gloves;
• Lens release lever;
• Zoom knob with RF lens;
• Zoom knob with EF lens;
• Port safety lever;
• Multi-function button;
• Movie shooting lever;
• Depth-of-field preview button;
• Main dial;
• Rating/Voice memo button (RATE);
• MENU button;
• Still photo shooting/movie recording switch;
• Mode dial;
• Quick control dial 2;
• Multicontrol buttons;
• AF point selection button;
• AE lock button;
• Quick control dial 1;
• Magnify/Reduce button;
• Quick control button;
• Playback button;
• Erase button;
• SET button;
• INFO button;

Technical specifications:
Red color anodized aluminum body;
Ergonomic side handles, adjustable (via optional accessory);
Two fiber optic connections standard (to use the flash needs an optional trigger);
Three M16 holes and one M24 for using accessories such as vacuum systems, monitors, Nikonos or S6 bulkhead;
Back housing completely detachable from the front housing;
Tray with lock for the easy insertion of the camera;
Single-hand closing knob for the back of the housing;
Aluminum buttons and dials with engraved symbols identical to camera controls;
Wide back display viewfinder glass;
Standard ISOTTA viewfinder;
Double O-Ring seals on all buttons and removable parts;
Moisture sensor with LED indicator (replaceable battery);
Removable port B120 bayonet;
Safety lock on the porthole to prevent accidental opening;
Wide, rubber covered feet for solid footing on boat floors or sea floor;
M8 hole located on upper side of the housing for various accessories such as focus lights;
Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods;
Prepared for ISOTTA vacuum system (not included);
External viewfinders can be mounted, INON X-2 compatible;
Working depth: 100 meters;
Sizes (LxHxP): 292mm x 186mm x 138mm;

Included with this housing:
Front lid
Handles
Standard ISOTTA viewfinder
Humidity sensor
Fiber optic connection bulkhead (to use the flash needs an optional trigger)
Replacement O-ring kit
Silicone lubricant 15gr / 0,5 oz
