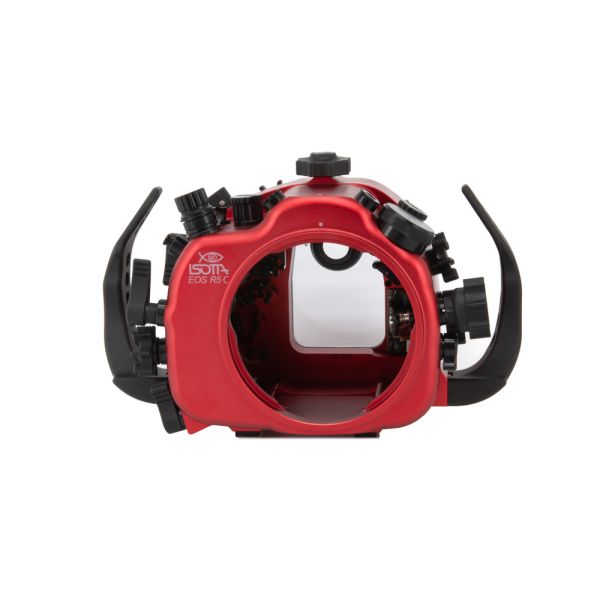

Isotta underwater housing for Canon EOS R5 C

Aluminum underwater housing with a depth rating of 100 meters. The advantage of aluminum is that, in addition to its durability, it also efficiently dissipates the heat that the camera can produce. This Isotta underwater housing uses the B120 port system. A port is not included; please contact us to discuss the available options for the lens(es) you intend to use.

All camera functions listed here can be operated from outside the underwater housing:
ON/OFF lever of the Canon EOS R5 C;
Ergonomic camera focusing and shutter lever, easy to use with gloves;
Lens release lever;
Zoom knob with RF lens;
Zoom knob with EF lens;
Port safety lever;
Multi-function lock button (LOCK);
Multi-function button (M-Fn);
Movie shooting lever;
AF start lever (AF-ON);
MODE lever;
LCD panel info switching/illumination button;
Depth-of-field preview button;
Main dial;
Rating/Voice memo button (RATE);
MENU button;
Quick control dial 1;
Quick control dial 2;
Multicontrol joystick;
AF point selection button;
AE lock button;
Magnify/Reduce button;
Quick control button;
Playback button;
Erase button;
SET button;
INFO button;

Technical data:

• Red color anodized aluminum body;
• Ergonomic side handles, adjustable (via optional accessory);
• Two fiber optic connections standard (to use the flash needs an optional trigger);
• Three M16 holes and one M24 for using accessories such as vacuum systems, monitors, Nikonos or S6 bulkhead;
• Back housing completely detachable from the front housing;
• Tray with lock for the easy insertion of the camera;
• Single-hand closing knob for the back of the housing;
• Aluminum buttons and dials with engraved symbols identical to camera controls;
• Wide back display viewfinder glass;
• Standard ISOTTA viewfinder;
• Double O-Ring seals on all buttons and removable parts;
• Moisture sensor with LED indicator (replaceable battery);
• Removable port B120 bayonet;
• Safety lock on the porthole to prevent accidental opening;
• Wide, rubber covered feet for solid footing on boat floors or sea floor;
• M8 hole located on upper side of the housing for various accessories such as focus lights;
• Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods;
• Prepared for ISOTTA vacuum system (not included);
• External viewfinders can be mounted, ISOTTA and INON X-2 compatible;

In the box: Underwater Housing, Front lid, Handles, Standard ISOTTA viewfinder, Humidity sensor, Fiber optic connection bulkhead (to use the flash needs an optional trigger), Replacement O-ring kit, Silicone lubricant 15gr / 0,5 oz.
