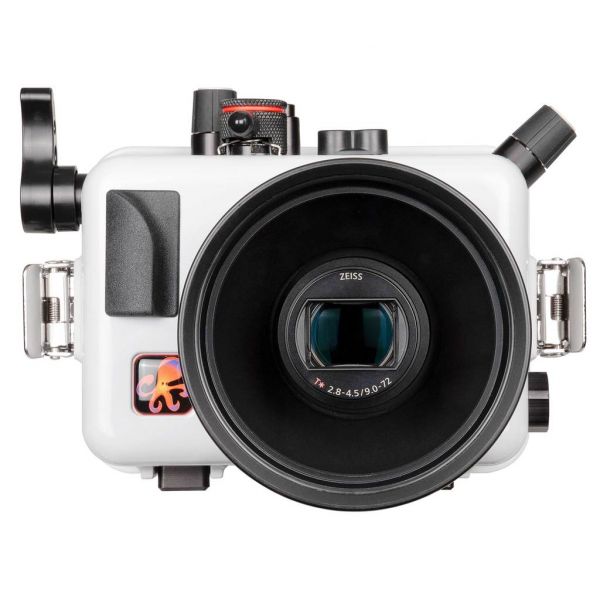

Ikelite underwater housing for Sony RX100VI and VII #6116.18

Ikelites ABS-PC blend housing provides strength and corrosion free performance with minimal maintenance. The specially formulated color deflects the sun to keep your camera running cooler, longer. Compared to black or clear housings, the light color provides superior contrast for enhanced view of the camera, LCD screen, and o-ring seal.

Ergonomics

A slide-in, front loading camera mount makes this housing a breeze to set up and shoot. Controls are provided for all important camera functions including front and rear control dials. Controls are placed in an intuitive position and designed for comfortable access whether you're holding the housing or an add-on handle.

A sensitive shutter lever makes it easy to half-depress the trigger for focusing and metering. Rear push button controls are laser engraved for identification with a new bright red push button for the video record start/stop.

The camera's large LCD screen can be seen clearly through the back of the housing. The screen can be tilted during installation for more comfortable viewing underwater.

Flash

Due to the position of the camera's flash in relation to its lens, the built-in flash is not suitable to illuminate photos under water. For the best color and clarity, we recommend adding a filter, strobe, or constant-on light. The built-in flash may be used to trigger external strobes via fiber optic sync cord. Two ports are provided for the connection of up to two fiber optic cords.

Zoom, super macro, and semi-wide angle

The standard 3.9" diameter optical glass port accommodates the camera's full 24-200mm zoom range underwater.

Optional wide angle port

The optional Wide Angle Port M67 # 9306.02 can be used in place of the housing's standard port for use of 67mm threaded external wide angle wet lenses. This port has been optimized to provide the best combination of wide angle and macro photography. The shorter port length accommodates an effective zoom range of 24-70mm.

This port is optimized for use with wide angle wet lenses designed for the 28mm equivalent focal length, including the INON UWL-H100, Nauticam WWL-1, and others.  Some vignetting (dark shadows around the edges of the image will be present at wider focal lengths. We recommend zooming to eliminate vignetting or cropping your images in post-production.

Specifications

200 ft (60 m) depth rating

Controls for all camera functions except Flash switch and Viewfinder switch; camera's built-in flash may be extended during installation

Slightly negative buoyancy in fresh water

1/4-20 threaded tray mounting with 3" (76mm) spacing

Weighs 2.8 lb (1270 g)

6.1 x 5.1 x 6.8" (155 x 130 x 173 mm)

3.9" diameter glass lens port

2 year limited warranty



In the Box

Housing

Rear o-ring # 0109

Vinyl port cover # 0200.08

Silicone lubricant # 0184.1
