Ikelite Manual Focus Gear 5509.72 Nikon Z 105mm Macro Lens

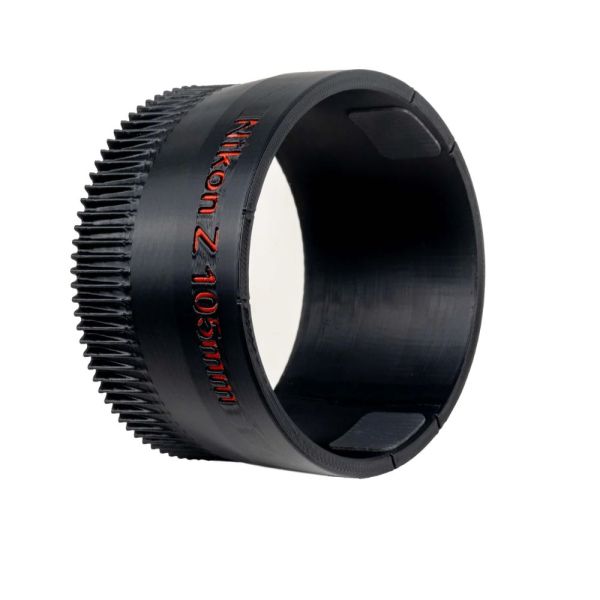

The Ikelite Manual Focus Gear 5509.72 is designed for the Nikon Z 105mm Macro lens used in compatible Ikelite underwater camera housings. The focus gear sleeve connects the housing control knob to the manual focus ring of the lens. This allows direct focus adjustment during underwater macro photography. The assembly uses friction-fit contact pads to engage with the lens focus ring. The gear sleeve installs from the front opening of the housing and interfaces with the housing drive gear.

Compatibility depends on the housing and port configuration. Refer to the applicable Ikelite lens port chart before installation.

Manual focus control and compatible lens configuration details

• Product type: Manual focus gear
• Compatible lens: Nikon Z 105mm Macro
• Product code: Ikelite 5509.72
• Designed for compatible Ikelite DL housing systems
• Uses friction-fit engagement pads
• Supports underwater manual focus adjustment

Installation notes and underwater system preparation steps

Install the sleeve with the gear teeth aligned toward the housing drive gear. Confirm smooth movement before attaching the port system.

The box contains a zoom gear, spacer, and zoom clamp for assembly inside compatible housing configurations.
