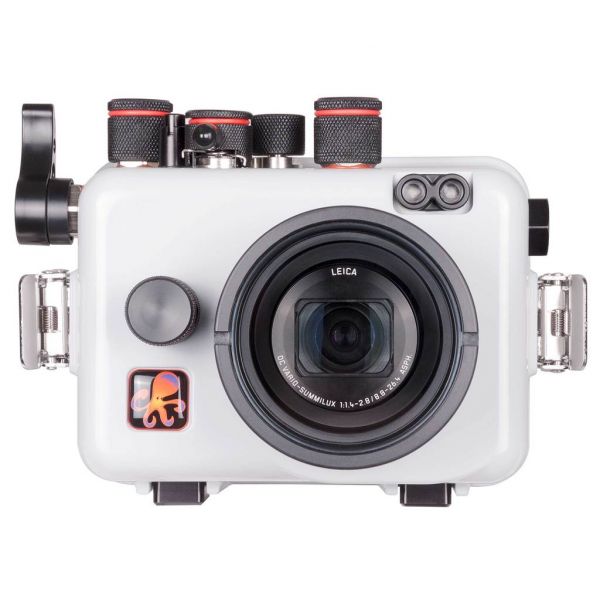

Ikelite Housing Panasonic LX10 and LX15 #6171.01

A full featured and durable waterproof housing for Panasonic Lumix LX10 and LX15 digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.

Flash

Due to the position of the camera's flash in relation to its lens, the built-in flash is not suitable to illuminate photos under water. For the best color and clarity, we recommend adding a filter or strobe. The built-in flash may be used to trigger external strobes via fiber optic sync cord. Two ports are provided for the connection of up to two fiber optic cords.

Any Ikelite DS strobe may be connected using the Fiber Optic Converter # 4401.1 and Fiber Optic Cord # 4501. The AF35 strobe is not compatible with this housing.

Wide angle, macro & filters

Our 3-inch diameter ports feature a 67mm thread on the front for the easy attachment of external wide angle and macro wet lenses. Wide angle lenses make objects appear smaller, so that you can fit more into your frame underwater. Macro close-up lenses make small objects appear larger, so that tiny creatures will fill your frame.

The WD-3 Wide Angle Dome provides mid-range angle of view with no vignetting (dark shadows in the corners of the image).

The W-30 Wide Angle Lens, INON UWL-H100, and other 67mm threaded wide angle lenses, provide a wider maximum angle of view. Because these are separated from the camera's lens by glass, air, and water, some vignetting and edge distortion will be present. These effects can be reduced or eliminated by using a smaller aperture, zooming in slightly, and/or cropping in post-production.

External macro lenses with 67mm threads from INON and other manufacturers, can be attached directly to the front of the housing's port.

3-inch diameter color filters press directly onto these ports. Most wide angle lenses require a 3.6-inch diameter color filter. Refer to the product page for information on color filter compatibility.

• 200 ft (60m) depth rating
• Controls for all important camera functions except Flash open lever; flash must be opened prior to installation of camera in the housing
• Two 1/4-20 threaded tray mounts with 3" (76mm) spacing
• Slightly negative buoyancy in fresh water
• 2.6 lb (1180 g)
• 5.3 x 5.1 x 6.9" (135 x 130 x 175 mm)
• 3" diameter glass lens port

In the box:

• Housing
• Rear o-ring # 0110
• Vinyl port cover # 0200
• Silicone lubricant # 0184.1
