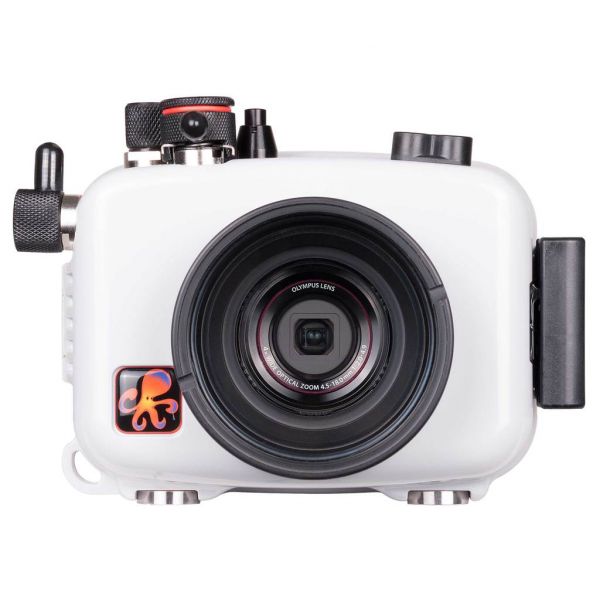

Ikelite Housing for OM System Tough TG-7 / Olympus TG-6 & TG-5

A full featured and durable waterproof housing for OM System Tough TG-7 and Olympus TOUGH TG-6 / TG-5 cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.

The Ikelite housing for this popular camera model has been designed for ergonomic underwater use with the side-mounted shutter lever. Hard anodized aluminum and acetyl controls operate smoothly and are fully serviceable for many years of enjoyment.

Two 1/4-20 mounts on the bottom of the housing allow the rotation-free attachment of optional trays and lighting arms.

Our ABS-PC blend housing material provides strength and corrosion-free performance year after year. Durable construction keeps the system watertight shallow and at depths up to 200ft (60m).

Flash

Due to the position of the camera's flash in relation to its lens, the built-in flash is not suitable to illuminate photos under water. For the best color and clarity, we recommend adding a filter or strobe. The built-in flash may be used to trigger external strobes via fiber optic sync cord. Two ports are provided for the connection of up to two fiber optic cords.

Any Ikelite DS strobe may be connected using the Fiber Optic Converter # 4401.1 and Fiber Optic Cord # 4501. The AF35 strobe is not compatible with this housing.

Wide angle, macro & filters

Our 3-inch diameter ports feature a 67mm thread on the front for the easy attachment of external wide angle and macro wet lenses. Wide angle lenses make objects appear smaller, so that you can fit more into your frame underwater. Macro close-up lenses make small objects appear larger, so that tiny creatures will fill your frame.

The WD-3 Wide Angle Dome provides mid-range angle of view with no vignetting (dark shadows in the corners of the image).

The W-30 Wide Angle Lens, INON UWL-H100, and other 67mm threaded wide angle lenses, provide a wider maximum angle of view. Because these are separated from the camera's lens by glass, air, and water, some vignetting and edge distortion will be present. These effects can be reduced or eliminated by using a smaller aperture, zooming in slightly, and/or cropping in post-production.

External macro lenses with 67mm threads from INON and other manufacturers, can be attached directly to the front of the housing's port.

3-inch diameter color filters press directly onto these ports. Most wide angle lenses require a 3.6-inch diameter color filter. Refer to the product page for information on color filter compatibility.

• 200 ft (60m) depth rating
• 1.1 lb (500 g)
• 6.2 x 5.5 x 3.6" (158 x 141 x 85 mm)
• 3" diameter glass lens port

In the box:

• Housing
• O-ring # 0132.45
• Port cover # 0200
• Lanyard # 0321.10
• Silicone lubricant 1cc tube
