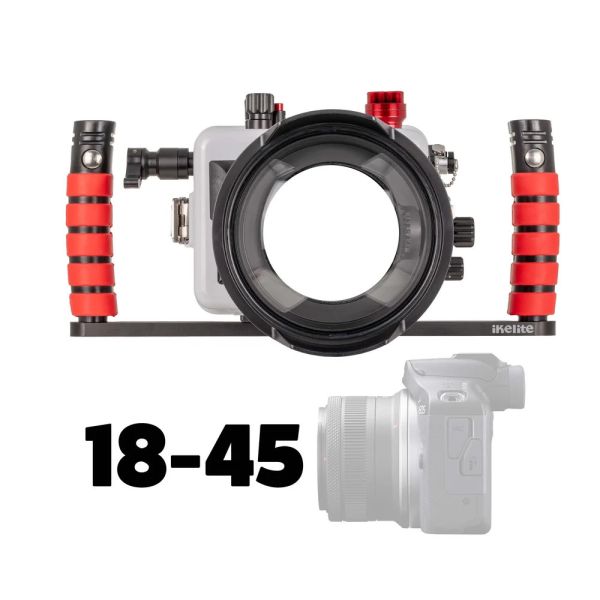

Ikelite 200DLM/D for Canon EOS R100 with 18-45mm domeport

The Ikelite 200DLM/D Underwater Housing 69753 is a 60 m rated housing for the Canon EOS R100, supplied with a DLM dome port and zoom gear for the RF-S 18-45mm and RF-S 10-18mm lenses. Its integrated fiber optic TTL transmitter provides automatic flash exposure with compatible Ikelite strobes. A dual-handle tray and vacuum pump with gauge are also included for a complete housing configuration.

Key features

• Designed for the Canon EOS R100 mirrorless camera
• DLM dome port and zoom gear for RF-S 18-45mm and RF-S 10-18mm lenses
• Integrated fiber optic TTL transmitter
• Fiber optic strobe ports
• Maximum depth: 60 m
• DLM Dry Lock Micro port mount
• Controls for all important camera functions
• Clear rear section for visual inspection of the camera and O-ring seal
• Dual-handle tray included
• Vacuum pump with gauge included

Lens and port compatibility

The supplied Dome Port with Zoom 5516.15 and Zoom Gear 5515.14 support both the Canon RF-S 18-45mm and RF-S 10-18mm lenses. The DLM port is interchangeable, allowing the housing to be configured with additional compatible wide-angle, zoom and macro lenses.

Other lenses may require a different DLM port, zoom gear or focus gear. These components are lens-specific and are available separately where required.

Fiber optic TTL flash

An integrated fiber optic TTL transmitter communicates the camera's flash signal to compatible Ikelite fiber optic strobes. This enables automatic TTL flash exposure, with flash exposure compensation controlled through the camera. Compatible Ecko Fiber and RC-series strobes can connect directly through the housing's fiber optic ports.

Legacy Ikelite DS strobes can be used with fiber optic TTL by adding an RC2 Fiber Optic Receiver to each strobe. Fiber optic strobes from other manufacturers can be connected for manual flash exposure.

Camera controls

The housing provides controls for all important Canon EOS R100 camera functions used for underwater photography and video. The controls are positioned around the camera body for direct operation while the housing is closed.

Vacuum and seal inspection

The included vacuum pump with gauge can be used with the housing's vacuum leak detection system to check the seal before entering the water. The transparent rear section also provides a direct view of the camera and rear O-ring after the housing has been closed.

Construction and port system

The housing is made from a light Ikelite's ABS-PC blend. The DLM Dry Lock Micro port system supports interchangeable ports for compatible lenses.

Specifications

What's in the box

• Housing with TTL Fiber Optic Transmitter
• Dome Port with Zoom 5516.15
• Zoom Gear 5515.14
• Tray with Dual Handles 9523.64, installed
• Vacuum pump with gauge 47011
• Rear O-Ring 0110, installed plus spare
• Front O-Ring 0132.36, installed plus spare
• Silicone lubricant, 1 cc tube
