The Ikelite 69744-FBR is an underwater housing for the Canon EOS R10 camera and 18-45mm or 10-18mm lens. it comes with a port and gear, TTL flash trigger, vacuum system and dual handles installed. rated up to 60 meters depth.
- Safe & easy ordering - Webshop Trustmark certified
- Fast and reliable worldwide shipping with DHL, UPS or PostNL
- Authorised service center for Nauticam, INON....

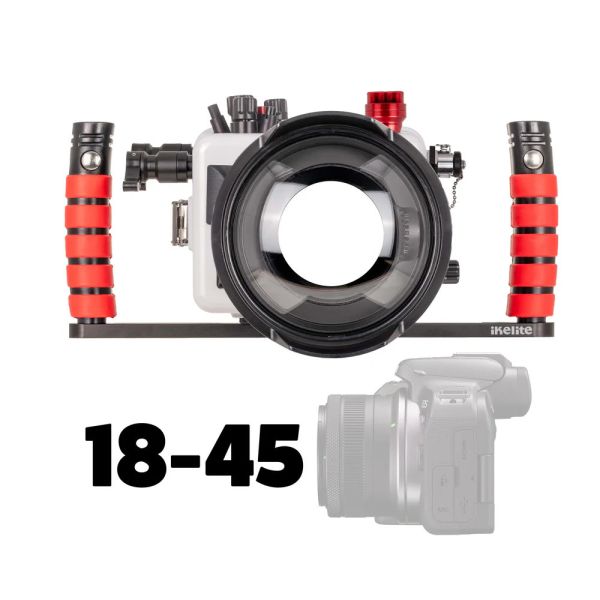

Ikelite 200DLM Underwater Housing for Canon EOS R10 with with 18-45mm or 10-18mm lens.
It's the same housing as the 69742-FBR, but this package also includes the Dome Port and zoomgear for the Canon 18-45 / 10-18mm lens.
The 200DLM Underwater Housing for Canon EOS R10 is a compact ABS-PC housing for underwater photo and video use. It includes a fibre optic TTL transmitter, dual tray, dual handles, vacuum leak detection system and spare O-rings.
A compatible DLM lens port is required for waterproof operation and is sold separately. The housing is pressure tested to 60 m before delivery.
Key specifications
- Camera compatibility: Canon EOS R10
- Depth rating: 60 m (≈200 ft)
- Housing material: ABS-PC blend
- Strobe control: fibre optic TTL transmitter
- Tray: dual tray with dual handles
- Leak check: vacuum leak detection system
- Lens port system: DLM, Dome Port with Zoom # 5516.15 & Zoom Gear # 5515.14 included
- Included spare O-rings: yes
Product advantages
The clear housing body makes camera placement and control checks easier before a dive. The ABS-PC construction keeps weight lower than aluminium while maintaining housing strength for underwater use.
The integrated TTL transmitter supports compatible Ikelite fibre optic strobes. Flash exposure compensation can be adjusted in-camera when used with supported strobe systems.
When to choose this product
Choose this housing when using a Canon EOS R10 for scuba, snorkel, surf, pool or shallow-water production. It is suited to users who want fibre optic TTL support and a built-in vacuum check.
It is also relevant for compact mirrorless setups where lower housing weight is important. The DLM port system allows lens-specific port selection.
Compatibility and in-the-box contents
This housing is made for the Canon EOS R10 mirrorless camera. Legacy Ikelite DS strobes require an RC2 Fibre Optic Receiver for fibre optic TTL use. Non-Ikelite fibre optic strobes work in manual exposure modes only.
Full specifications table
| Specification | Value |
|---|---|
| Product name | 200DLM Underwater Housing for Canon EOS R10 |
| Camera model | Canon EOS R10 |
| Depth rating | 60 m (≈200 ft) |
| Material | ABS-PC blend |
| Strobe connection | Fibre optic (TTL) |
| Tray system | Dual tray with dual handles |
| Leak detection | Vacuum leak detection system |
| Port system | DLM lens port, port and gear for 18-45 / 10-18 included |
| Weight | 3 lb |
| Dimensions | 7.5 x 5.9 x 6 in (191 x 150 x 152 mm) |
Box contents
Housing with TTL Fiber Optic Transmitter
Rear O-Ring # 0110 (installed + spare)
Front O-Ring # 0132.36 (installed + spare)
Vacuum pump with gauge # 47011
Tray with dual handles # 9523.64
Silicone lubricant 1cc tube
Dome Port with Zoom # 5516.15
Zoom Gear # 5515.14
Setup and maintenance
Install the correct DLM lens port before water use. Inspect, clean and lightly lubricate the O-rings before closing the housing. Use the vacuum leak detection system before entering the water.
After use, rinse the housing in fresh water and operate the controls during rinsing. Dry the housing before opening it to reduce the risk of water reaching the camera.
| Manufacturer | Ikelite |
|---|---|
| Manufacturer | Importer | Manufacturer: Ikelite Underwater Systems, 50 W 33rd St, Indianapolis, IN 46208, USA, [email protected] | Importer: UWCameraStore. com, Neon 25, 4751 XA, Oud Gastel, Nederland, [email protected] |
| Manual | Ikelite Canon EOS R10 housing Manual |
| Max. depth | 60 meters |
| Camera brand | Canon |
| Camera type | Mirrorless |
| EAN | 883711071725 |
| Country of Origin | usa |
