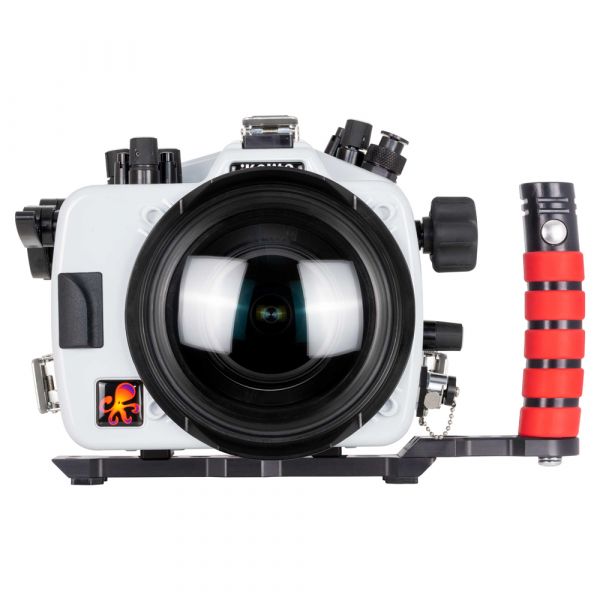

Ikelite 200DL Housing Panasonic GH6 #71313

This housing requires the addition of a compatible DL Lens Port for waterproof operation. Lens Port not included (!).

View the DL Port Chart for Panasonic GH Series...

This housing features Ikelites robust Dry Lock (DL) port system. "Dry Lock" refers to the placement of the o-ring on the outside of the port mount. This improves visibility and reduces the chances of water dropping onto your precious camera sensor. DL ports are the lightest on the market, yet robust and capable of standing up to rough surf. Attachment is quick and secure. A system of extensions can accommodate a huge variety of lenses with ease.

Most popular zoom lenses and select lens focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. A large, soft-touch knob on the side of the housing makes fine tuned adjustments a breeze. Zoom and focus gears differ depending on which lens you are using. Zoom gears sold separately.

Confidence
The unique rear seal design prevents accidental twisting or stretching of the o-ring for simple and confident assembly. We have eliminated the need for an o-ring groove or channel which can trap sand, dirt, or debris. Three double-passivated stainless steel locking lid snaps are simple to use and virtually unbreakable. The clear back allows you to see the o-ring form a solid, watertight seal as it closes.

Vacuum Testing
A vacuum valve is installed standard on the side of the housing. The vacuum valve is designed to be low profile to avoid interference with controls. The optional Vacuum Pump with Gauge # 47011 allows you to draw a vacuum on the housing to check for leaks prior to entering the water.

Drawing a vacuum on the system also provides extra security at the surface of the water, especially important when using the housing in rough surf.

M16 Accessory Port
The spare M16 threaded accessory port provides an attachment point for third party accessories including HDMI bulkheads.

Optional M24 Accessory Port
This model may be customized to add a large bore M24 thread accessory port for the attachment of HDMI monitors which utilize an M24 or M28 thread (M24-to-M28 adapter required, not sold by Ikelite). It is possible to custom order the housing with the port or return the housing for after-sale modification. The port is located on the left side of the housing to reduce interference with controls.

Read more about adding a large-bore M24 Accessory Port...

TTL Exposure
This housings supports your choice of shooting with manual strobe exposure or adding a TTL converter depending on your application. The flash bulkhead is located on the top of the case to alleviate strain on the sync cord.

You can enjoy the fastest and most accurate TTL exposure on the market by adding the DL3 DS Link Panasnoic/Olympus TTL Converter Ikelite PT1 Hotshoe Kit # 46032 and a compatible Ikelite DS strobe. Exposure compensation can be used added or subtracted in the camera.

Reliable locking connectors between the hotshoe and bulkhead make it easy to install the TTL hotshoe or carry back up parts when traveling to remote locations.

Ergonomics
Good ergonomics are critical when you need to concentrate on composition, focus, and proper exposure. Large, curved control levers put the most important controls right where you need them: shutter and autofocus (via the AF/AE Lock button). This combination allows you to shoot with or without back button focus, an advanced technique that is useful for tack sharp focus of super macro and fast moving subjects. Each lever can be extended using the optional Trigger Extension # 4077.95 for perfect spacing when using a right-hand handle.

The rotating controls are all operated intuitively via premium soft-touch knobs. An oversized, lobed knob puts the zoom/focus knob at your fingertips while your left hand stays on the handle. Stainless steel, direct-drive rotating controls are virtually fail-safe and user serviceable and adjustable in a pinch.

All rear camera buttons are accessible by smooth action, hard anodized aluminum push buttons for reliable performance and easy maintenance. These controls are clearly labeled by laser engraving on the back of the housing that never fades or falls off.

Set-Up
The camera mount is front-loading for easy installation and removal. A small mounting plate attaches to the bottom of the camera and secures in the front of the housing. The camera mounting plate does not need to be removed from the camera for surface use or when changing the battery or memory cards. The mounting plate features a 1/4-20 threaded mount on the bottom so that it can be attached to a tripod on the surface.

Viewfinders
The included SuperEye Viewfinder provides an enhanced view of the camera's electronic viewfinder when viewed through a dive mask. The viewfinder removes quickly and easily for the attachment of an optional Straight Magnified Viewfinder # 6890.2 or 45° Magnified Viewfinder (Type 1) # 6891.1.

Read more:  Straight vs 45 Degree Magnified Viewfinder for Underwater Shooting

Camera Compatibility
This housing is only compatible with Panasonic GH6 cameras as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

Differences in lens and control placement prevent other Panasonic camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this particular housing.

Ikelite DS Strobe Compatibility
Any Ikelite DS strobe may be used in manual exposure modes by attaching one or two with a compatible electrical sync cord. Current model DS strobes may be used in TTL exposure mode by adding the optional DL3 DS Link TTL Converter, a TTL hotshoe, and an electrical sync cord.

Non-Ikelite Strobe Compatibility
SEA&SEA, INON, and Retra strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off of a hard-wired strobe.

Ikelite Non-Digital Strobe Compatibility
Older non-digital strobes featuring an ICS-5 electrical sync cord bulkhead can be used with this system in manual exposure modes.

Fiber Optic Compatibility
Fiber optic only strobes are not compatible with this installation. An external strobe must be connected by electrical sync cord.

Remote Triggering Compatibility
Strobes with remote slave capabilities may be triggered off of a flash attached to the housing by electrical sync cord. Ikelite DS strobes support remote triggering using the Optical Slave Converter # 4405.

Specifications

-200' (60m) depth rating
-Compatible with DL system lens ports
-Controls are provided for all important camera functions
-1/4-20 thread base mounts with 3.5" spacing
-Slightly positive buoyancy in fresh water (buoyancy varies depending on choice of lens and port)
-Housing weight 4.67 lb (2121 g)
-Tray with left handle weight 11 oz (312 g)
-Sizes: 9 x 7.25 x 6" (229 x 184 x 152 mm) (excl. tray with handle)
-Vacuum valve included (pump sold separately)
-Included Ikelite ICS-5 bulkhead connector with manual hotshoe
-Spare M16 accessory port with option to add M24 large bore accessory port
-ABS-PC construction is fundamentally corrosion-resistant

In the Box

Housing
Rear O-ring # 0132.59 (installed)
Front O-ring # 0132.45 (installed)
Zoom Gear Retainer # 75900 (installed)
Port Hole Cover # 0200.92 (installed)
Waterproof Bulkhead Cap # 9104.7 (installed)
Base with Left-Hand Quick Release Handle # 4077.67 (installed)
Tool for Zoom Gear Retainer # 0945.06
.050" Hex Key # 0945.11
Silicone Lubricant 1cc Tube
