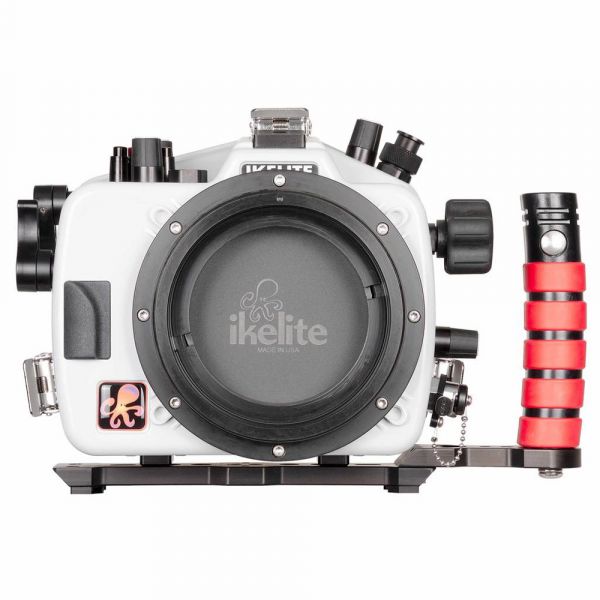

Ikelite 200DL Housing Panasonic GH5, GH5S, GH5 II #71311

This housing requires the addition of a compatible DL Lens Port for waterproof operation. Lens Port not included.

View the DL Port Chart for Panasonic GH5 Series...

This housing features Ikelite's robust Dry Lock (DL) port system. "Dry Lock" refers to the placement of the o-ring on the outside of the port mount. This improves visibility and reduces the chances of water dropping onto your precious camera sensor. Attachment is quick and secure. A system of extensions can accommodate a huge variety of lenses with ease. Most popular zoom lenses and select lens focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. A large, soft-touch knob on the side of the housing makes fine tuned adjustments a breeze. Zoom and focus gears differ depending on which lens you are using.

Vacuum Testing
A vacuum valve is installed standard on the side of the housing. The vacuum valve is designed to be low profile to avoid interference with controls. The optional Vacuum Pump with Gauge (47011) allows you to draw a vacuum on the housing to check for leaks prior to entering the water.

Drawing a vacuum on the system also provides extra security at the surface of the water, especially important when using the housing in rough surf.

M16 Accessory Port
The spare M16 threaded accessory port provides an attachment point for third party accessories including HDMI bulkheads.

Optional M24 Accessory Port
This model may be customized to add a large bore M24 thread accessory port for the attachment of HDMI monitors which utilize an M24 or M28 thread (M24-to-M28 adapter required, not sold by Ikelite). It is possible to custom order the housing with the port or return the housing for after-sale modification. The port is located on the left side of the housing to reduce interference with controls.

TTL Exposure
This housings supports your choice of shooting with manual strobe exposure or adding a TTL converter depending on your application. The flash bulkhead is located on the top of the case to alleviate strain on the sync cord.

You can enjoy the fastest and most accurate TTL exposure on the market by adding the DL3 DS Link Panasnoic/Olympus TTL Converter Ikelite PT1 Hotshoe Kit (46032) and a compatible Ikelite DS strobe. Exposure compensation can be used added or subtracted in the camera.

Reliable locking connectors between the hotshoe and bulkhead make it easy to install the TTL hotshoe or carry back up parts when traveling to remote locations.

Ergonomics
Good ergonomics are critical when you need to concentrate on composition, focus, and proper exposure. Large, curved control levers put the most important controls right where you need them: shutter and autofocus (via the AF/AE Lock button). This combination allows you to shoot with or without back button focus, an advanced technique that is useful for tack sharp focus of super macro and fast moving subjects. Each lever can be extended using the optional Trigger Extension # 4077.95 for perfect spacing when using a right-hand handle.

The rotating controls are all operated intuitively via premium soft-touch knobs. An oversized, lobed knob puts the zoom/focus knob at your fingertips while your left hand stays on the handle. Stainless steel, direct-drive rotating controls are virtually fail-safe and user serviceable and adjustable in a pinch.

All rear camera buttons are accessible by smooth action, hard anodized aluminum push buttons for reliable performance and easy maintenance. These controls are clearly labeled by laser engraving on the back of the housing that never fades or falls off.

Ikelite DS Strobe Compatibility
Any Ikelite DS strobe may be used in manual exposure modes by attaching one or two with a compatible electrical sync cord. Current model DS strobes may be used in TTL exposure mode by adding the optional DL3 DS Link TTL Converter, a TTL hotshoe, and an electrical sync cord.

Non-Ikelite Strobe Compatibility
SEA&SEA, INON, and Retra strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off of a hard-wired strobe.

Ikelite Non-Digital Strobe Compatibility
Older non-digital strobes featuring an ICS-5 electrical sync cord bulkhead can be used with this system in manual exposure modes.

Fiber Optic Compatibility
Fiber optic only strobes are not compatible with this installation. An external strobe must be connected by electrical sync cord.

Remote Triggering Compatibility
Strobes with remote slave capabilities may be triggered off of a flash attached to the housing by electrical sync cord. Ikelite DS strobes support remote triggering using the Optical Slave Converter # 4405

Specifications

• 200' (60m) depth rating
• Compatible with DL system lens ports
• Controls are provided for all important camera functions; Controls are not provided for Diopter Adjustment Control, Rear Control Dial, or Mode Dial Lock. Mode Dial must be un-locked prior to installation for use underwater
• 1/4-20 thread base mounts with 3.5" spacing
• Slightly positive buoyancy in fresh water
• Actual buoyancy varies depending on choice of lens and port
• Weight: Housing 4.67 lb (2121 g)
• Weight: Tray with left handle 11 oz (312 g)
• Size: 9 x 7.25 x 6" (229 x 184 x 152 mm) Not including tray with handle
• Vacuum valve included (pump sold separately)Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL accessories provides automatic exposure with compatible Ikelite DS strobes
• Spare M16 accessory port with option to add M24 large bore accessory port
• ABS-PC construction is fundamentally corrosion-resistant

In the Box:

• Housing
• Rear O-ring # 0132.59 (installed)
• Front O-ring # 0132.45 (installed)
• Zoom Gear Retainer # 75900 (installed)
• Port Hole Cover # 0200.92 (installed)
• Waterproof Bulkhead Cap # 9104.7 (installed)
• Base with Left-Hand Quick Release Handle # 4077.67 (installed)
• Tool for Zoom Gear Retainer # 0945.06
• .050" Hex Key # 0945.11
• Silicone Lubricant 1cc Tube
