Ikelite 200DL Housing Nikon D7500 #71017

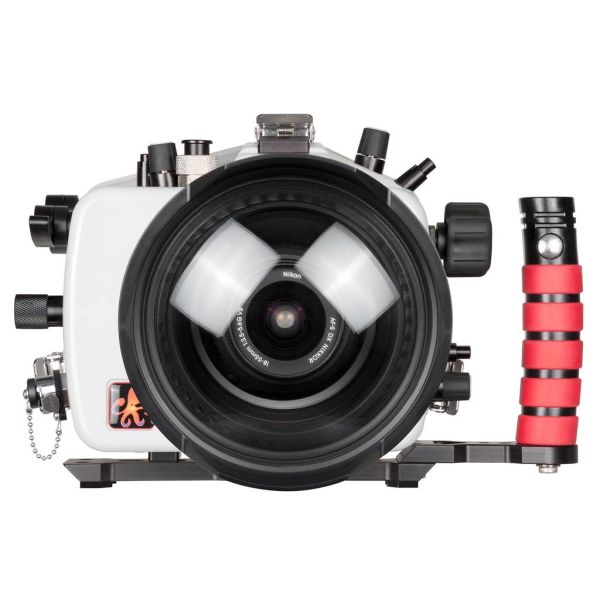

Shown with lens port (not included). A lens port must be purchased separately for waterproof operation.

The single most important feature is our Dry Lock (DL) port system. This exciting system is substantially more robust and easier to assemble than our time-tested Four Lock (FL) system. DL system ports are lightweight, versatile, and can accommodate extremely large diameter lenses with ease. If you're considering shooting professional quality lenses like the Nikon 14-24mm or Sigma 10-20mm HSM, then the DL system is essential.

Most popular zoom lenses and select lens focus rings can be engaged using a simple yet effective gearing system that puts adjustment right at your fingertips. A large, soft-touch lobed knob on the side of the housing makes fine tuned adjustments a breeze. Zoom and focus gears differ depending on which lens you are using. All are lightweight and affordable. Refer to the DL System Port Chart to choose the correct gear. Zoom gears sold separately.

Due to differences in mount diameter and zoom engagement, DL and FL system ports cannot be used interchangeably. The DL port mount may be removed and replaced with Port Locks for FL Port System (Set of 4) # 5509.04 for legacy users with standard or modular ports from our Four Lock system. This modification will prevent the use of newer DL ports. The housing cannot be converted back and forth repeatedly. Re-installation of the DL port base will require the housing to be returned to Ikelite or an Authorized Dealer and may incur additional service charges.

There are significant advantages to upgrading your lens ports to the DL system. For example, if you're shooting an 8" diameter dome, you'll also save almost 2 pounds by using the DL version instead.

Vacuum system
The included vacuum valve allows you to vacuum test the housing to check for leaks prior to putting your expensive equipment in the water. Combined with a full view of the camera and o-ring seal through the back of the housing, there is no greater assurance that your gear will be safe. Our signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Use of the vacuum valve requires a compatible Vacuum Pump with Gauge #47011, sold separately.

TTL Exposure
This housings supports your choice of shooting all manual or adding a TTL converter depending on your application. The flash bulkhead has been moved to the top of the case for improved cord routing and reduced strain. Reliable locking connectors between the hotshoe and bulkhead make it easy to install the optional TTL hotshoe or carry back up parts when traveling to remote locations.

You can still enjoy the fastest and most accurate TTL exposure on the market by adding the NT2 Nikon TTL Hotshoe # 46064, Nikon TTL Converter with Ikelite plug # 4301.3, and a compatible Ikelite DS strobe. Flash exposure compensation can be added or subtracted using the camera's menu settings.

Manual strobe exposure is supported by the housing as is with no additional accessories required. The housing ships equipped with a manual flash hotshoe and Ikelite ICS-5 bulkhead. Use an appropriate sync cord to attach Ikelite, SEA&SEA, INON, Retra, or other compatible strobes.

Construction
Our white ABS-PC blend front is durable and provides improved contrast and visibility. The light color keeps your camera running cooler in the sun compared to black or clear housings.This product is individually inspected for fit, and water pressure tested to 200 feet (60m).

Specifications

• 200' (60m) depth rating
• ABS-PC construction is fundamentally corrosion-resistant
• Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL accessories provides automatic exposure with compatible Ikelite DS strobes
• Vacuum valve included (pump sold separately
• 9.2 x 7.2 x 6.6" (234 x 183 x 168 mm)
• 5.8 lb (2.6 kg)
• Actual buoyancy varies depending on choice of lens and port
• Near neutral buoyancy in fresh water
• 1/4-20 thread base mounts with 3.5" spacing
• Controls are provided for all important camera controls; Controls are not provided for Release mode dial, Release mode dial lock release, Diopter adjustment control, Focus mode selector, Focus selector lock, BKT button, Fn1 button, Fn2 button
• Compatible with DL system lens ports
