Ikelite 200DL housing Canon EOS 77D and 9000D #71722

This housing requires the addition of a compatible DL Lens Port for waterproof operation. Lens Port not included.
DL Port Chart for this housing

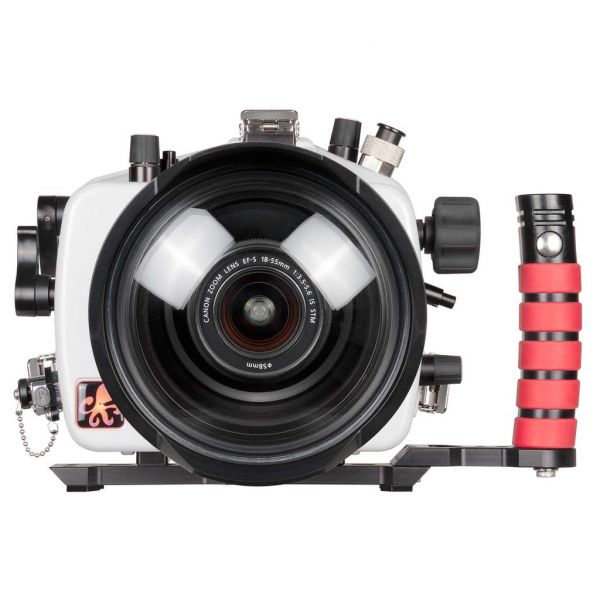

IKELITE 200DL FOR THE CANON EOS 77D AND 9000D [71722]

Ergonomics and handling
Good ergonomics are critical when you need to concentrate on composition, focus, and proper exposure. Large, curved control levers put the most important controls right where you need them: shutter and autofocus (via the AF/MF button). This combination allows you to shoot with or without back button focus, an advanced technique that is useful for tack sharp focus of super macro and fast moving subjects. Each lever can be extended using the optional Shutter Trigger Extension  for perfect spacing when using a right-hand handle. The camera's large, super-bright LCD screen is viewable edge-to-edge through the back of the housing.

Set-up
A small mounting plate attaches to the bottom of the camera and secures in the front of the housing. The camera mounting plate does not need to be removed from the camera for surface use or when changing the battery or memory cards. The mounting plate features a 1/4-20 threaded tripod mount on the bottom so that it can be attached to a tripod on the surface. This housing is special designed the Canon 90D camera.

Port System
It couldn't be more simple to change ports than this system—just place the port and tighten the thumb screws. Feel positive reinforcement that the port is secure with simple parts you can trust in a remote location.

This housing accepts ports from our DL Port System to accommodate a selection of the best zoom, macro, and wide angle lenses for underwater use. Our custom optical grade acrylic domes components provide the color, clarity, and durability of glass at a fraction of the travel weight and cost. Lens port sold separately.

Vacuum Testing
A vacuum valve is installed standard on the side of the housing. The vacuum valve is designed to be low profile to avoid interference with controls. The optional Vacuum Pump with Gauge # 47011 allows you to draw a vacuum on the housing to check for leaks prior to entering the water.

Drawing a vacuum on the system also provides extra security at the surface of the water, especially important when using the housing in rough surf.

Lighting
Water causes loss of colors, light and contrast, so it is important to keep the distance from the subject as short as possible. For best results, we recommend an external flash or a video light.

This housing supports shooting strobes by electrical sync cord.

Fiber Optic Compatibility
Fiber optic only strobes are not compatible with this installation. An external strobe must be connected by electrical sync cord.

Durability and corrosion free performance
The housing is made of white ABS polycarbonate. This material is strong and corrosion-free and requires minimal maintenance. ABS-PC is lighter than aluminum for convenience when traveling. The white color reflects the sun to keep your camera cool for longer.

Specifications
-200' (60m) depth rating
-Compatible with DL system lens ports
-Controls are provided for all camera functions except: Diopter adjustment dial, Control wheel lock, LCD illuminating button, Flash button, Joystick up/down/left/right (Joystick can be depressed)
-1/4-20 thread base mounts with 3.5" spacing
-Slightly positive buoyancy in fresh water
-Actual buoyancy varies depending on choice of lens and port
-Housing 4.67 lb (2121 g)
-Tray with left handle 11 oz (312 g)
-9 x 7 x 6.5" (229 x 178 x 165 mm)
-Vacuum valve included (pump sold separately)
-Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL accessories provides automatic exposure with compatible Ikelite DS strobes
-ABS-PC construction is fundamentally corrosion-resistant
-Made in the USA; Individually inspected for fit and water pressure tested to depth

In the Box

-Housing
-Rear O-ring # 0132.59 (installed)
-Front O-ring # 0132.45 (installed)
-Zoom Gear Retainer # 75900 (installed)
-Port Hole Cover # 0200.92 (installed)
-Waterproof Bulkhead Cap # 9104.7 (installed)
-Base with Left-Hand Quick Release Handle # 4077.67 (installed)
-Tool for Zoom Gear Retainer # 0945.06
-.050" Hex Key # 0945.11
-1/16" Hex Key # 0945.16
-Silicone Lubricant 1cc Tube

Lens port sold separately; A compatible DL lens port is required for waterproof operation.
