The Ikelite 200DL Deluxe Underwater Housing 71774-DLX is designed for the Canon EOS R6 V and includes dual handles, an installed USB-C charging and data transfer bulkhead, vacuum pump with gauge and spare O-rings. The housing is rated to 60 m and uses the DL Dry Lock port system. A compatible DL lens port is required and sold separately.
- Safe & easy ordering - Webshop Trustmark certified
- Fast and reliable worldwide shipping with DHL, UPS or PostNL
- Authorised service center for Nauticam, INON....
The Ikelite 200DL Deluxe Underwater Housing 71774-DLX is designed for the Canon EOS R6 V and underwater photo and video use to a maximum depth of 60 m. The Deluxe configuration adds dual handles, an installed USB-C charging and data transfer bulkhead, Vacuum Pump with Gauge 47011 and spare O-rings. It uses the DL Dry Lock port system for compatible lens configurations. A compatible DL lens port is required and sold separately.
Deluxe configuration
The 71774-DLX combines the 200DL housing with additional equipment for handling, vacuum testing and USB-C connectivity. The installed tray provides two handles for operating the housing and mounting compatible accessories. The USB-C bulkhead provides an external connection to supported USB-C camera functions.
Vacuum Pump with Gauge 47011 is included for checking the housing seal before entering the water. Spare O-rings for the front and rear seals are also supplied with this configuration.
Key features
- Designed specifically for the Canon EOS R6 V
- Maximum depth: 60 m
- DL Dry Lock port system
- ABS-PC housing construction
- Tray with dual handles installed
- USB-C charging and data transfer bulkhead installed
- Vacuum Pump with Gauge 47011 included
- Spare front and rear O-rings included
- Transparent rear section for visual inspection of the O-ring seal
- M16 and M24 accessory ports
Camera controls
The housing provides access to the main Canon EOS R6 V camera functions and control dials. Compatible lens gears allow supported zoom or focus functions to be operated through the lens control mechanism on the side of the housing.
The Multi-controller joystick up/down/left/right functions, rear control wheel, front record button and electronic W/T Zoom are not accessible through the housing.
Lens and port compatibility
The DL Dry Lock port system supports compatible Canon RF lenses and selected EF lenses with the appropriate adaptor and port configuration. The required port, extension and zoom or focus gear depend on the selected lens. Lens ports and lens gears are sold separately.
A compatible DL lens port is required for waterproof operation. Use our Ikelite lens port charts guide to determine the appropriate port, extension and lens gear for your lens.
USB-C charging and data transfer
The installed USB-C charging and data transfer bulkhead provides access to compatible USB-C camera functions without removing the camera from the housing. Supported functions include charging between dives with compatible camera and power equipment, as well as supported data transfer functions.
Vacuum check and O-ring inspection
Ikelite recommends using a pump with gauge to pull a vacuum and check the housing for leaks before entering the water. Vacuum Pump with Gauge 47011 is included with the Deluxe configuration. The transparent rear section also allows visual inspection of the main O-ring seal after closing the housing.
Flash options
The housing can be configured for compatible fibre-optic or electrical flash triggering. The optional Ikelite TT5 Canon TTL Fiber Optic Transmitter 44701 provides an optical triggering option for compatible equipment.
Use of a flash hotshoe with the Canon EOS R6 V requires the Canon AD-E1 Multi-Function Shoe Adapter. According to Ikelite, this camera adaptor is not supplied by Ikelite.
External equipment
Integrated M16 and M24 accessory ports provide connection options for supported external equipment. Depending on the selected components, these connections can be used for configurations such as external monitoring and compatible accessories.
Wi-Fi transfer
The Canon EOS R6 V's built-in Wi-Fi can be used for photo transfer while the camera remains inside the housing. Ikelite specifies that Wi-Fi can only be used above water and within close proximity of the connected device.
Compatibility
The housing is designed specifically for the Canon EOS R6 V. Ikelite states that differences in lens and control placement prevent other camera models from being used or adapted to this housing. Add-on grips, battery grips, eyepieces and LCD covers are not accommodated unless Ikelite specifically states otherwise.
Specifications
| Specification | Details |
|---|---|
| Article number | 71774-DLX |
| Compatible camera | Canon EOS R6 V |
| Maximum depth | 60 m |
| Port system | DL Dry Lock |
| Housing material | ABS-PC |
| Accessory ports | M16 and M24 |
| Rear O-ring | 0132.59 |
| Front O-ring | 0132.45 |

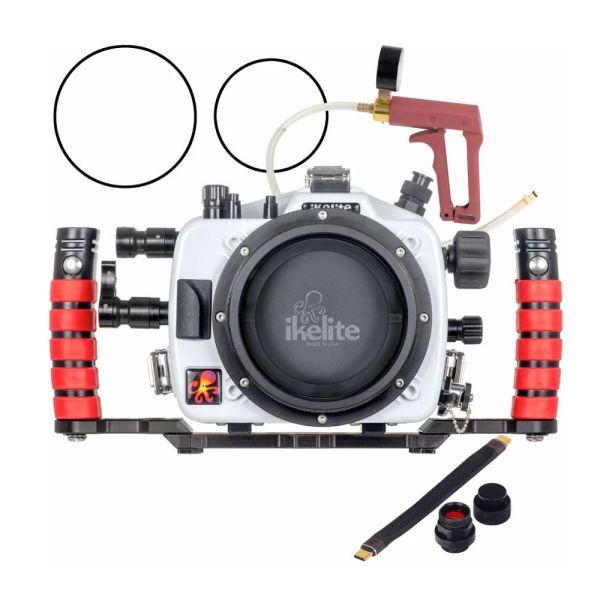

What's in the box
- 200DL underwater housing
- Tray with dual handles, installed
- USB-C Charging & Data Transfer Bulkhead, installed
- Vacuum Pump with Gauge 47011
- Spare Rear O-ring 0132.59
- Spare Front O-ring 0132.45
| Manufacturer | Ikelite |
|---|---|
| Manufacturer | Importer | Manufacturer: Ikelite Underwater Systems, 50 W 33rd St, Indianapolis, IN 46208, USA, [email protected] | Importer: UWCameraStore. com, Neon 25, 4751 XA, Oud Gastel, Nederland, [email protected] |
| Max. depth | 60 meters |
| Camera brand | Canon |
