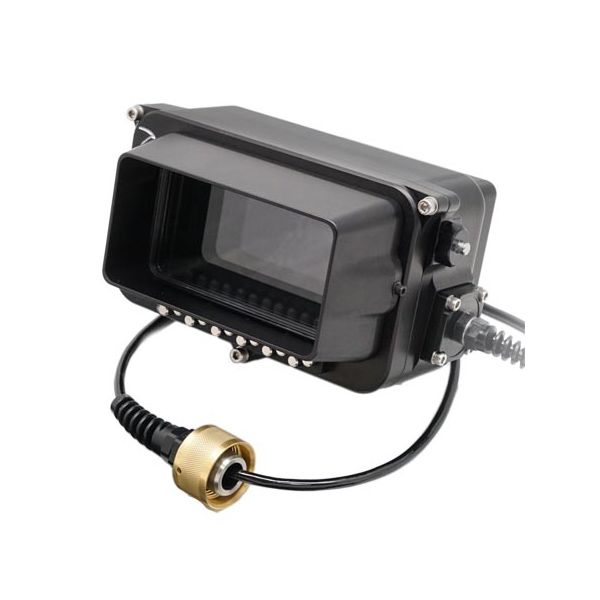

Gates NVS Housing for Shinobi or Shinobi SDI
60 Meters depth rated underwater housing for Shinobi or Shinobi SDI monitor.
Compatible with the Gates housings for: ARRI ALEXA MINI / MINI LF, ARRI ALEXA, DEEP WEAPON and SONY Z90
- Safe & easy ordering - Webshop Trustmark certified
- Fast and reliable worldwide shipping with DHL, UPS or PostNL
- Authorised service center for Nauticam, INON....
1000 Nits bright LCD. 4K/60P recording in ProRes RAW. Extensive focus / exposure tools. All in a compact, neutrally buoyant package. That's the Gates NVS External Monitor Housing.
Designed specifically for the SHINOBI and SHINOBI SDI. Touch screen buttons are readily accessible below the shaded 5" display, and the mounting base will tilt / swivel to any position for the perfect viewing angle. Battery powered or driven by the camera v-lock (SHINOBI SDI only), NVS preserves a streamlined, low profile to the housing for minimal water resistance.
Of course, Gates NVS Underwater Monitor Housing comes with 'bulletproof' construction.
| Display: Widescreen 5 .0 inch / 125 mm color LCD 1920x1080 resolution |
Weight: Dry: 3.7lbs / 1.7 kg 4.8lbs / 2.2kg with LCD & Battery In Water: Slightly positive to slightly negative (battery dependent) |
| Controls: Power Touch screen X12 |
Depth rating: 200 feet / 61 meters |
| Dimensions: 264 X 120 X 225mm |
Cable / connections: Marine-grade multi conductor cable Gates Pass Through connectors |
| Input formats: HDMI (NINJA V, SHINOBI) and HD-SDI (SHINOBI SDI) |
Power / runtime: Variable. Consult monitor specifications for details |
| Material: Machined Aluminum, Type III 'Hard' Anodized finish Stainless steel hardware |
NVS compatibility:
MINI/ MINI LF / ALEXA / FLEX4K HOUSINGS:
-
LCD: ATOMOS SHINOBI SDI
- Power Source(s)
- LCD battery (Sony NP-F970) or
- Camera / Camera battery via D-Tap
- Gates NVS External Monitor SDI Cable: specify 5000-94-186 BCP ASSY, SDI+PWR SML PENTR NVS MON
MINI/ MINI LF / ALEXA / FLEX4K HOUSINGS:
- LCD: ATOMOS SHINOBI SDI
- Power Source
- LCD battery (Sony NP-F970)
- Gates NVS External Monitor SDI Cable: specify 5000-94-190 BCP ASSY, SDI SML PENTR NVS MON
Z90 HOUSING (FOR SONY PXW-Z90 CAMERA):
- LCD: ATOMOS SHINOBI SDI
- Power Source
- LCD battery (Sony NP-F970)
- Gates NVS External Monitor SDI Cable: specify 5000-94-219 BCP ASSY, SDI BLKHD ADPTR NVS MON
DEEP WEAPON HOUSING:
- LCD: ATOMOS SHINOBI SDI
- Power Source(s)
- LCD battery (Sony NP-F970) or
- Camera / Camera battery via D-Tap
- Gates NVS External Monitor SDI Cable: specify 5000-94—218 BCP ASSY, SDI+PWR LG PNTR NVS MON
AX700 / Z90 HOUSING (FOR SONY FDR-AX700 OR PXW-Z90 CAMERA):
- LCD: ATOMOS NINJA V or SHINOBI
- Power Source
- LCD battery (Sony NP-F970)
- Gates NVS External Monitor HDMI Cable: specify 5000-94-182 BCP ASSY, HDMI BLKHD ADPTR NVS MON
| Max. depth | 60 meters |
|---|
